Line-trafo - NTE-10/3 - NEUTRIK

På lager
På lager, 2-4 dage
Bedømmelse for Line-trafo - NTE-10/3 - NEUTRIK
Produktet er endnu ikke bedømt

136,00DKK ved 1 stk.

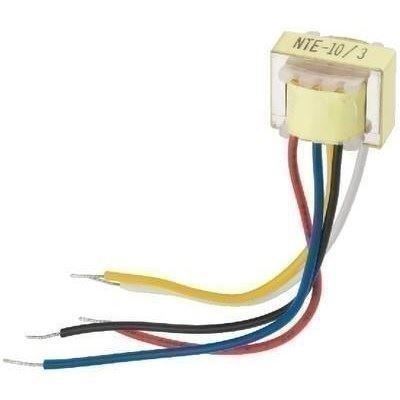

Audio transformer 1:3/1:10 for microphone signals, from NEUTRIK. Very small design, e.g. also suitable for the installation into connector housings.

Unshielded version with bare wire connections (70mm)

Audio transformer 1:3/1:10 for microphone signals, from NEUTRIK.

Very compact design, e.g. also suitable for installation into connector housings
Unshielded version with bare wire connections (70 mm)
Wideband version
Balance adjustment
Galvanic isolation to avoid/eliminate hum loops
Max. input voltage: 350 mV/380 mV (1% THD/50 Hz)

When installing unshielded transformers into units with interference fields (e.g. power transformers), attention has to be paid to respective shielding measures.

Type	transformer
Frequency range	20-20,000 Hz
Control range	-
Control frequencies	-
Input signal	380 mV
Input sensitivity	-
Input impedance	200 Ω
Output signal	-
Output impedance	10 kΩ/50 kΩ
Gain	-
Phantom power
Compression	-
Gate ratio	-
Crossover frequency	-
High-pass filter	-
Low cut	-

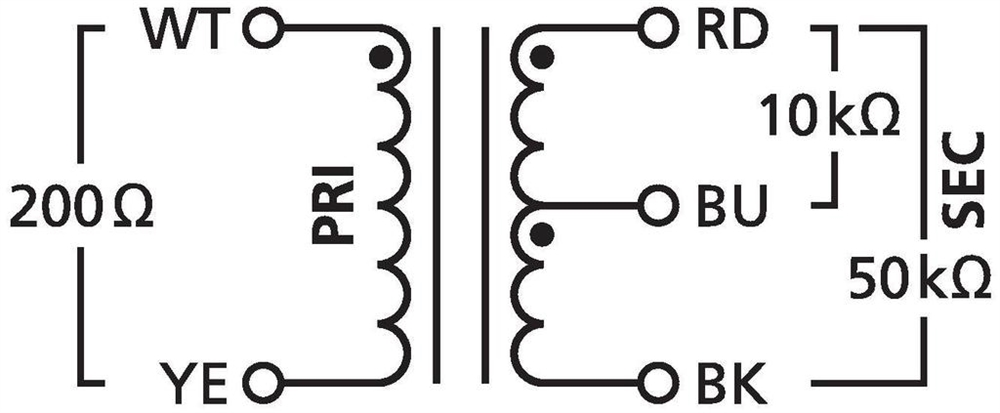

Transmission ratio	1:3/1:10
S/N ratio	-
Channel separation	-
THD	-
Admiss. ambient temp.	0-40 °C
Power supply	-
Dimensions	14 x 11 x 12 mm (w/o cable)
Weight	7 g
Inputs	bare cable ends
Outputs	bare cable ends
Other features	-

Varenr.: 212380
