MADRIX LUNA 4 Port USB / Art-Net Node,4 DMX universes per unit (2048 DMX channels)

MADRIX LUNA 4 Port USB / Art-Net Node,4 DMX universes per unit (2048 DMX channels)
  • På lager
  • På lager, 3-5 hverdage
  • Bedømmelse for MADRIX LUNA 4 Port USB / Art-Net Node,4 DMX universes per unit (2048 DMX channels)
    Produktet er endnu ikke bedømt


Indhent tilbud.Vis uden moms

Billigst på PriceRunner


Artnet and USB interface to issue 4 DMX universes



Artnet and USB interface to issue 4 DMX universes

  • MADRIX LUNA 4 is an easy-to-use and reliable Art-Net node with unique features
  • Can also be used as DMX512 USB interface
  • The device distributes DMX512 data over long or short distances using Ethernet network or USB
  • 4 XLR ports (5-pin, female) distribute 4 DMX universes per unit (2048 DMX channels)
  • 1 XLR port (5-pin, male) is always available for DMX input (512 DMX channels)
  • Quick and easy installation in MADRIX
  • MADRIX Sync Mode: Only MADRIX software and LUNA hardware allow you to synchronize Art-Net data for all output ports and even across multiple devices to get an optimal image on the LEDs without visual interruptions
  • Complies with the official Art-Net specifications and can be used as regular Art-Net unit with other consoles, controllers, or software solutions
  • Fanless, low-energy design
  • 19" metal case (1U) including brackets for rack mounting
  • Ready within seconds after startup
  • Automatic HTP merging for two Art-Net sources

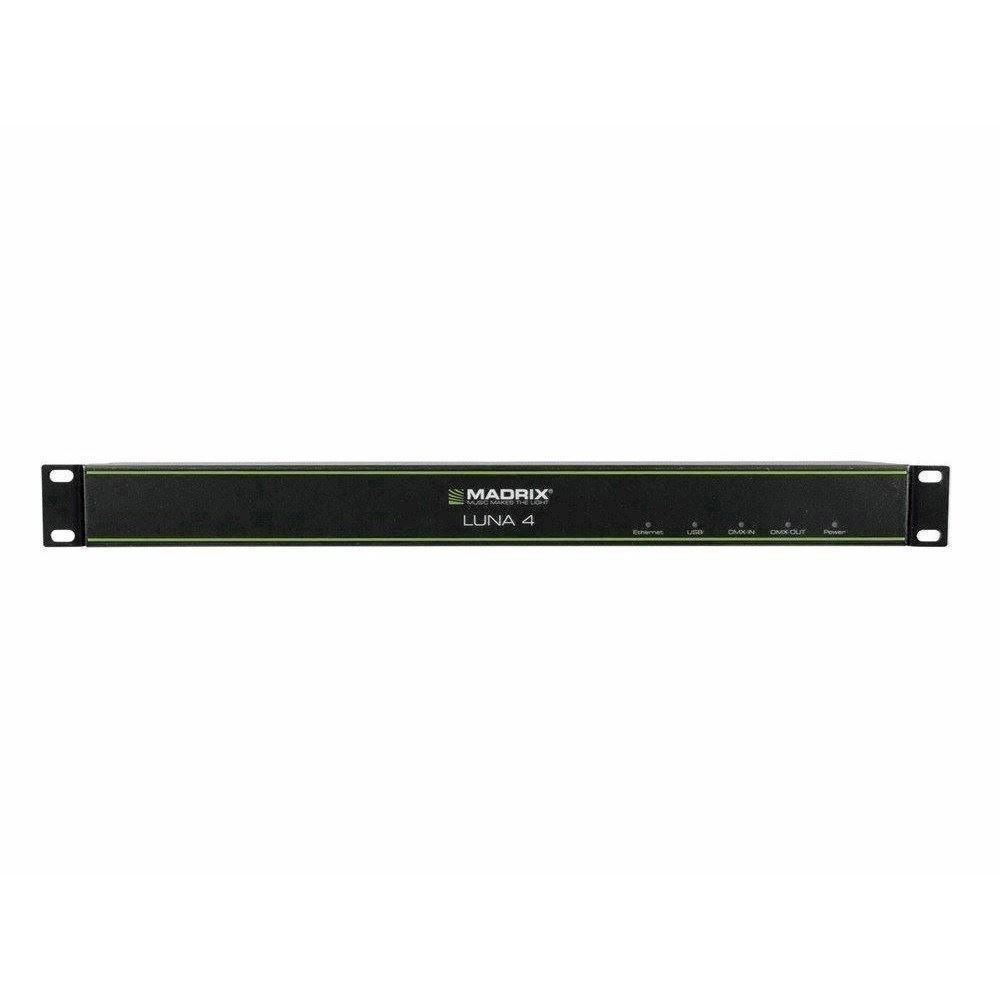

  • 5 status LEDs and built-in web configuration interface
  • Recommended for any small or large installation
  • Multiple devices can be used together without problems
  • MADRIX minimum system requirements: 2.0 GHz dual-core CPU, OpenGL 2.0 graphics card (NVIDIA recommended), 2 GB RAM, 1 GB free harddisk space, 1280 x 768 screen resolution, network card, sound card, USB 2.0
  • MADRIX supported operating systems: Microsoft Windows Vista 7 8 8.1 10 (compatible with 32 bit and 64 bit)
  • Installation instructions and software available in English, Spanish, French, and Simplified Chinese
  • User manual available in English
  • Quick start guide available in English and German
  • Made in Germany
  • Free software demo version, user manuals, and more information available at www.madrix.com

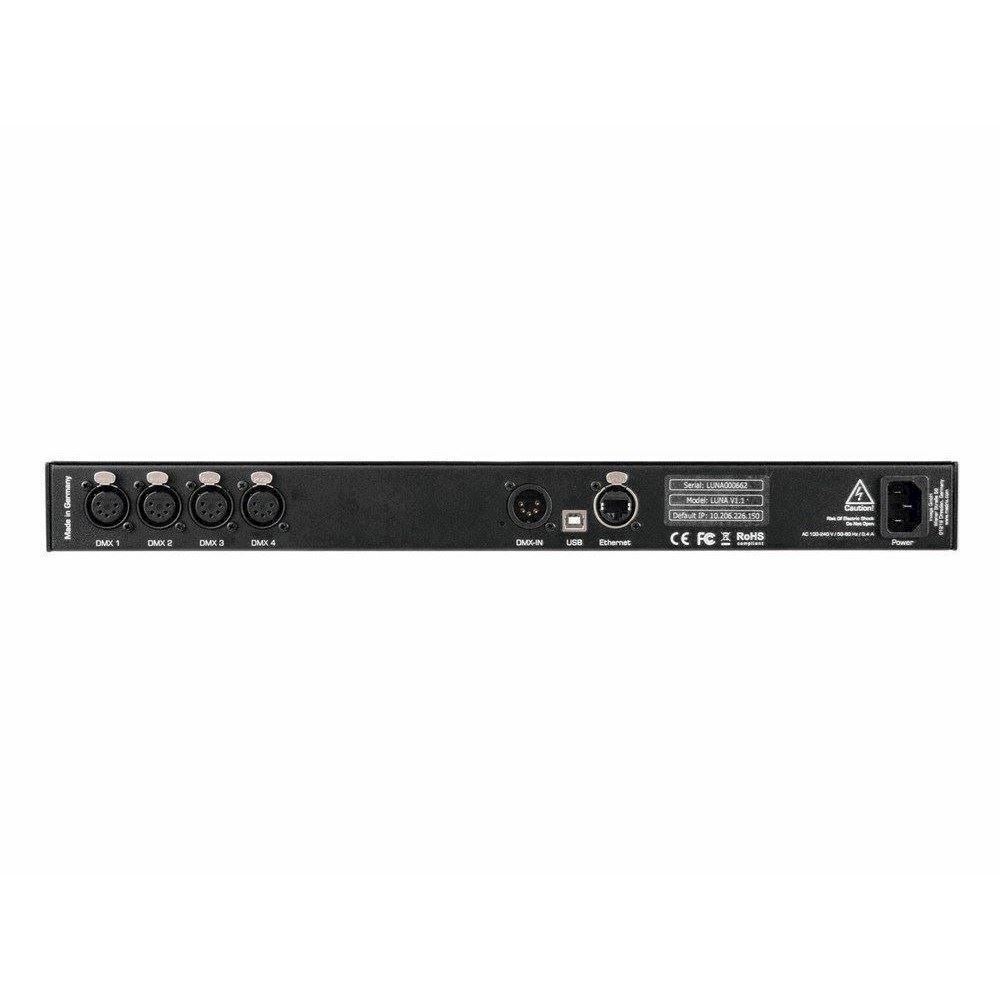

  • Connectivity: 4x DMX-OUT, 1x DMX-IN, 1x RJ45 Ethernet port, 1x USB port, 1x Power socket

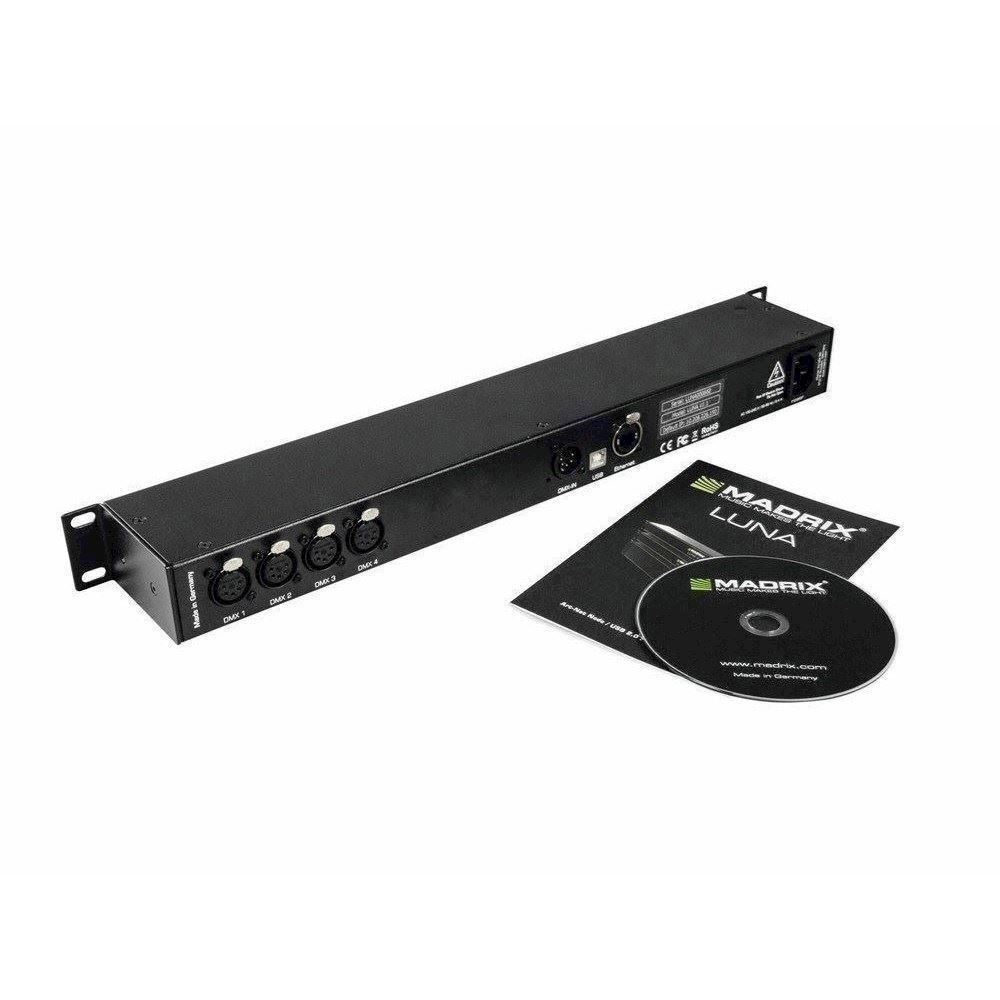

  • Package Contents: 1x MADRIX LUNA 4, 1x Power cord (IEC C13), 1x USB 2.0 cable (certified), 2x Mounting brackets (already mounted to the device), 1x Quick start guide, 1x CD-ROM incl. MADRIX and USB drivers (software license not included)
  • Made in Germany




Power supply:100-240 V AC, 50/60 Hz, 0.4 A max., IEC C14 inlet
DMX512 (OUT):4x 512 DMX channels output
DMX512 (IN):1x 512 DMX channels input
DMX512 ports (OUT):5-pin, XLR, female, NEUTRIK
DMX512 ports (IN):5-pin, XLR, male, NEUTRIK
Ethernet (Art-Net):RJ45, 10/100 MBit/s, Auto MDI-X, NEUTRIK etherCON
USB port:USB 2.0, type B plug
Case:Metal enclosure, IP20
Size:19" x 1 U
Dimensions (body only):76 mm x 440 mm x 44 mm (length by width by height)
Dimensions (total):76 mm x 482.6 mm x 44 mm (length by width by height)
Power consumption:5.00 W
Weight:1,3 kg
Height:4,45 cm
Depths:7,6 cm
Width:48,3 cm
