MADRIX LUNA 8 Port USB / Art-Net Node, 8 DMX universes per unit (4096 DMX channels)

På lager
På lager, 3-5 hverdage
Bedømmelse for MADRIX LUNA 8 Port USB / Art-Net Node, 8 DMX universes per unit (4096 DMX channels)
Produktet er endnu ikke bedømt

Indhent tilbud.Vis uden moms

Artnet and USB interface to issue 8 DMX universes

MADRIX LUNA 8 is an easy-to-use and reliable Art-Net node with unique features
Can also be used as DMX512 USB interface
The device distributes DMX512 data over long or short distances using Ethernet network or USB
8 XLR ports (5-pin, female) distribute 8 DMX universes per unit (4096 DMX channels)
1 XLR port (5-pin, male) is always available for DMX input (512 DMX channels)
Quick and easy installation in MADRIX
MADRIX Sync Mode: Only MADRIX software and LUNA hardware allow you to synchronize Art-Net data for all output ports and even across multiple devices to get an optimal image on the LEDs without visual interruptions
Complies with the official Art-Net specifications and can be used as regular Art-Net unit with other consoles, controllers, or software solutions
Fanless, low-energy design
19" metal case (1U) including brackets for rack mounting
Ready within seconds after startup
Automatic HTP merging for two Art-Net sources
5 status LEDs and built-in web configuration interface
Recommended for any small or large installation
Multiple devices can be used together without problems
MADRIX minimum system requirements: 2.0 GHz dual-core CPU, OpenGL 2.0 graphics card (NVIDIA recommended), 2 GB RAM, 1 GB free harddisk space, 1280 x 768 screen resolution, network card, sound card, USB 2.0
MADRIX supported operating systems: Microsoft Windows Vista 7 8 8.1 10 (compatible with 32 bit and 64 bit)
Installation instructions and software available in English, Spanish, French, and Simplified Chinese
User manual available in English
Quick start guide available in English and German
Made in Germany
Free software demo version, user manuals, and more information available at www.madrix.com

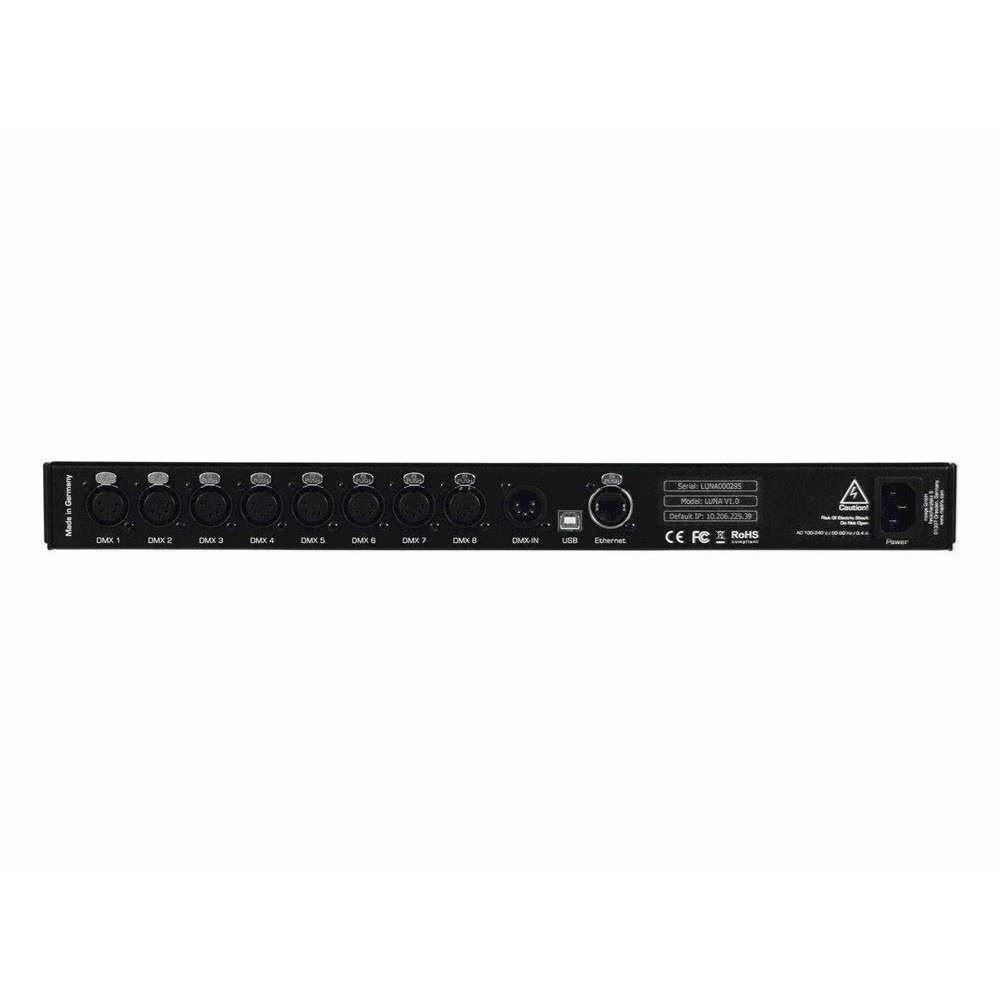

Connectivity: 8x DMX-OUT, 1x DMX-IN, 1x RJ45 Ethernet port, 1x USB port, 1x Power socket

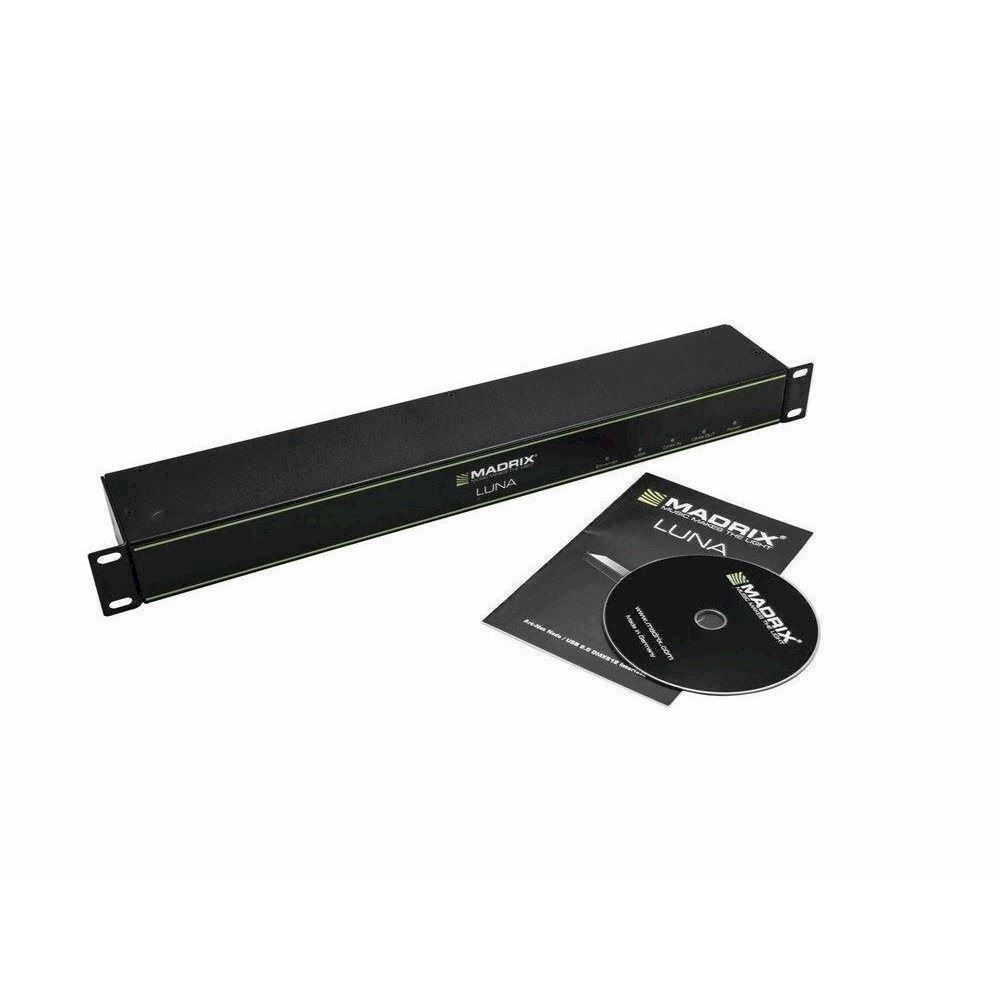

Package Contents: 1x MADRIX LUNA 8, 1x Power cord (IEC C13), 1x USB 2.0 cable (certified), 2x Mounting brackets (already mounted to the device), 1x Quick start guide, 1x CD-ROM incl. MADRIX and USB drivers (software license not included)
Made in Germany

Power supply:	100-240 V AC, 50/60 Hz, 0.4 A max., IEC C14 inlet
DMX512 (OUT):	8x 512 DMX channels output
DMX512 (IN):	1x 512 DMX channels input
DMX512 ports (OUT):	5-pin, XLR, female, NEUTRIK
DMX512 ports (IN):	5-pin, XLR, male, NEUTRIK
Ethernet (Art-Net):	RJ45, 10/100 MBit/s, Auto MDI-X, NEUTRIK etherCON
USB port:	USB 2.0, type B plug
Case:	Metal enclosure, IP20
Size:	19" x 1U
Dimensions (body only):	76 mm x 440 mm x 44 mm (length by width by height)
Dimensions (total):	76 mm x 482.6 mm x 44 mm (length by width by height)
Height:	4,45 cm
Depths:	7,6 cm
Width:	48,3 cm

Varenr.: E-70064845
