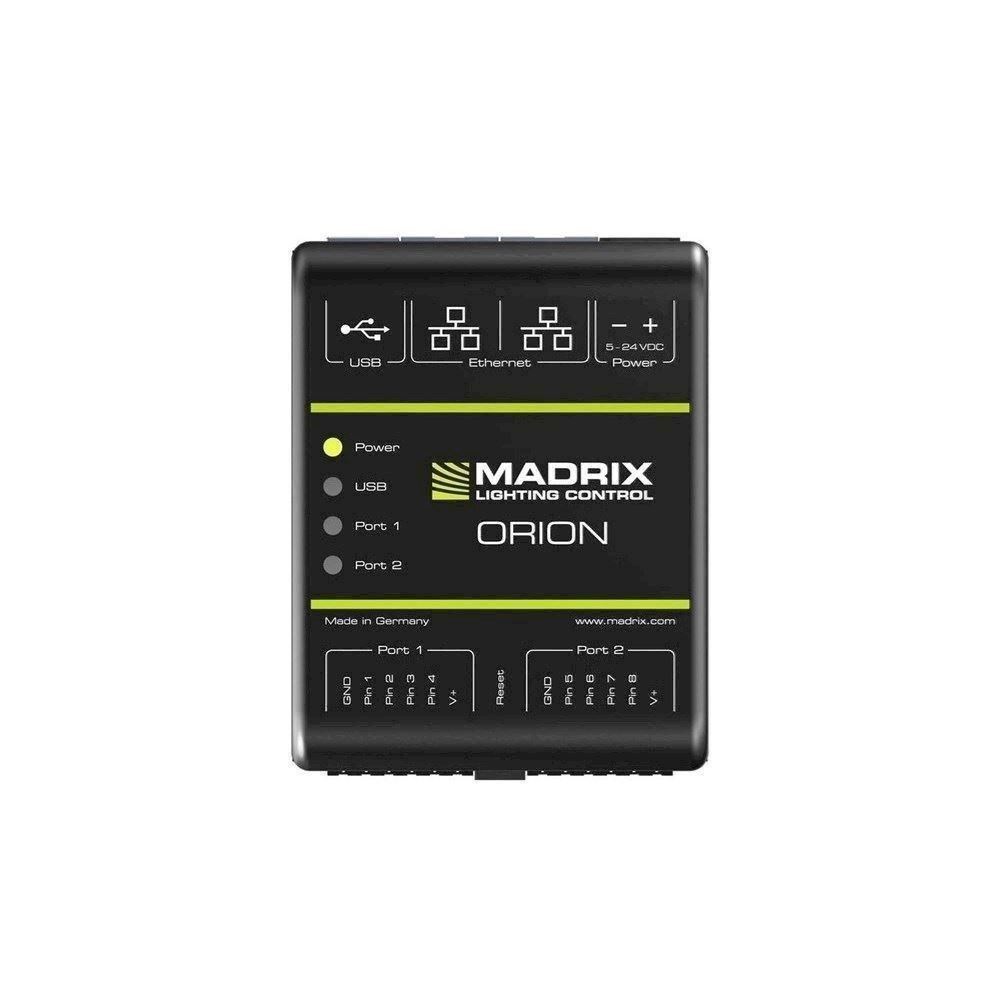

MADRIX ORION

Powerful A/D converter

• Converts analog input signals (0-12 V) into digital DMX output signals (8-bit or 16-bit)
• Supports a wide range of sensors, potentiometers, triggers and switches
• Creative and interactive projects can be easily put into practice thanks to sensors for light, temperature, movements etc.
• Works as a connecting tool between such equipment and a receiver usually processing the incoming signals
• Can be connected to building automation systems
• Transmits data over Ethernet network (Art-Net / ACN)
• Can also be used as MADRIX USB interface with MADRIX-5 software

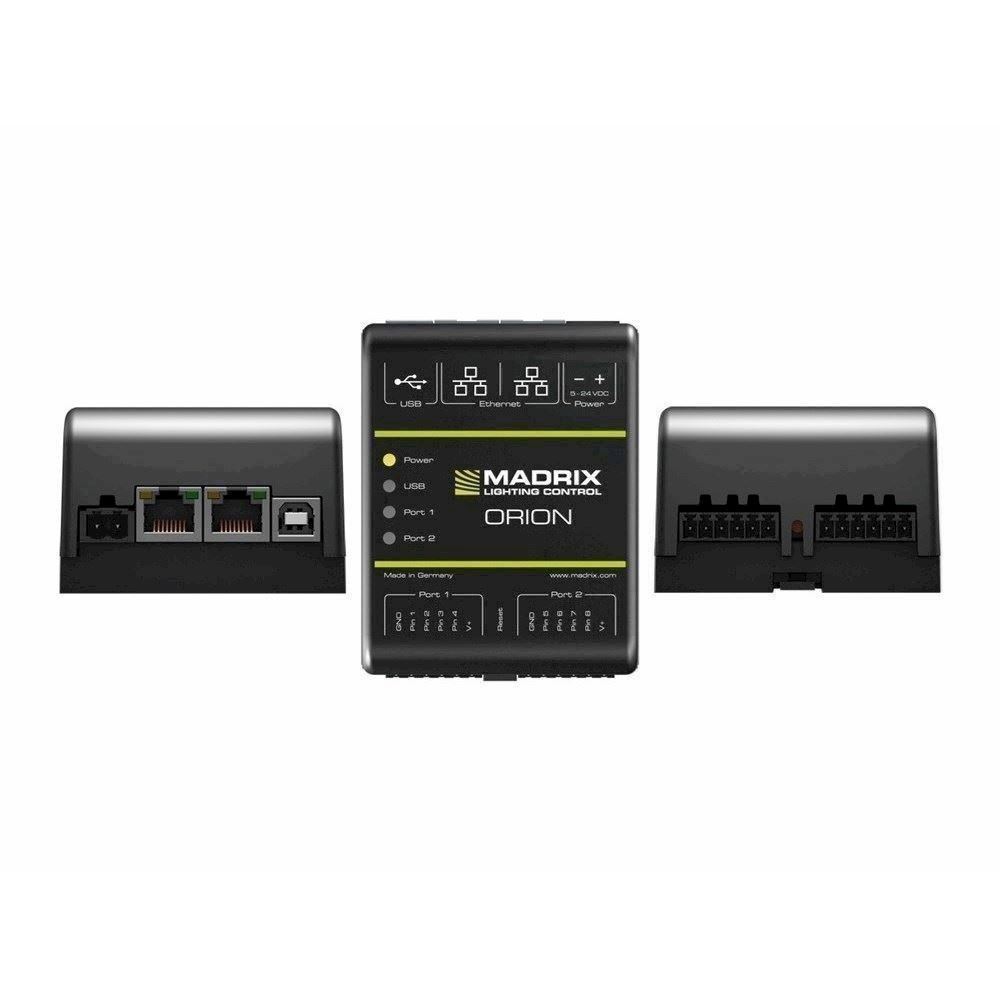

• 2 main 6-pin connectors with 4 individual pins each as well as GND and V+ for direct connection of equipment, 8 inputs in total
• 2 Ethernet ports allow for separate network connections and linearly daisy-chaining several devices without an additional network switch
• Various options for connection and power supply for the device itself as well as connected equipment
• Versatile output through adjustable inputs: Each input individually can be defined as analog or digital input, counter or other useful types
• Works great with the MADRIX software with quick and easy installation (sold separately)
• Complies with the official Art-Net and Streaming ACN specifications and can be used as regular Art-Net unit with other consoles, controllers, or software solutions
• 8 status LEDs which can be turned off
• Built-in web tool for on-device configuration

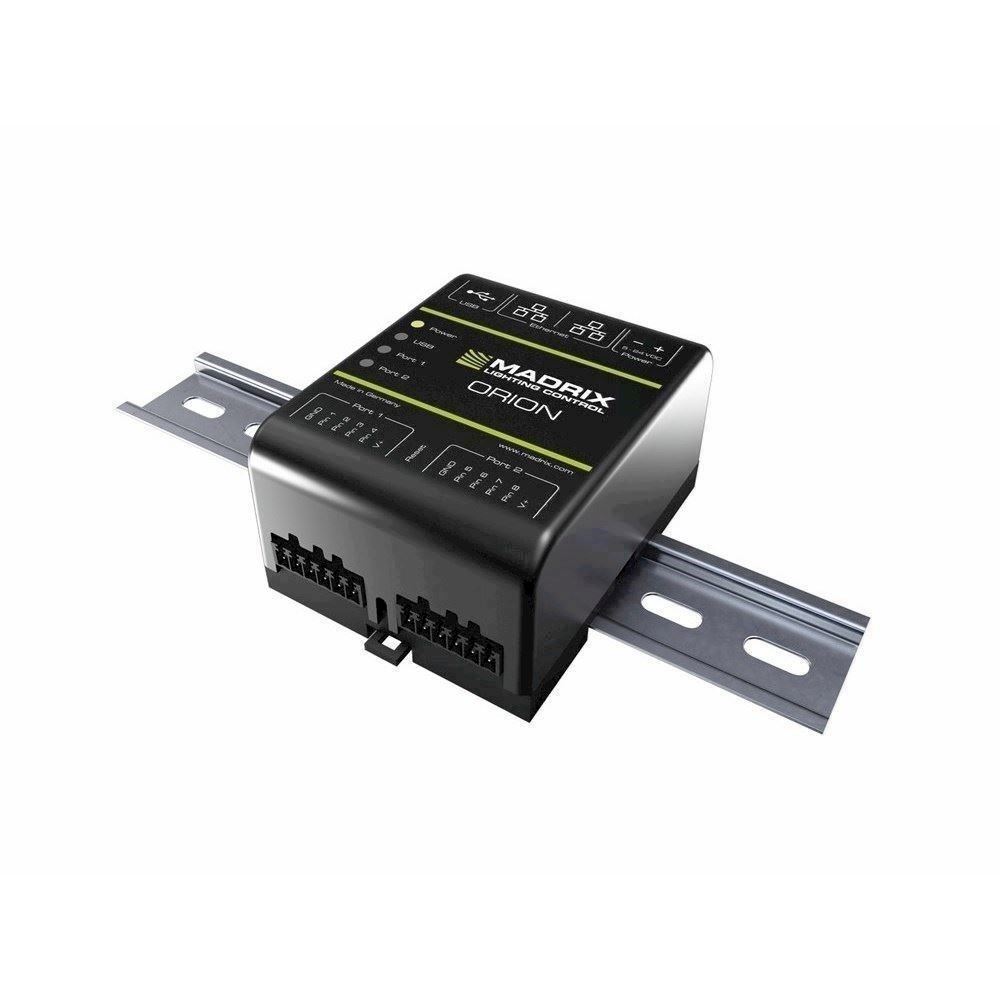

• Can be mounted on 35-mm DIN rails or walls via the provided wall-mount brackets
• Non-conductive enclosure with IP20 and UL94 V-O flammability rating
• Fanless, low-energy design
• Ready within seconds after startup
• Recommended for any small or large installation
• Multiple devices can be used together without problems
• The firmware is upgradable for future features
• Software user manual available in English and German
• Made in Germany
• User manuals also available at help.madrix.com
• Made in Germany
