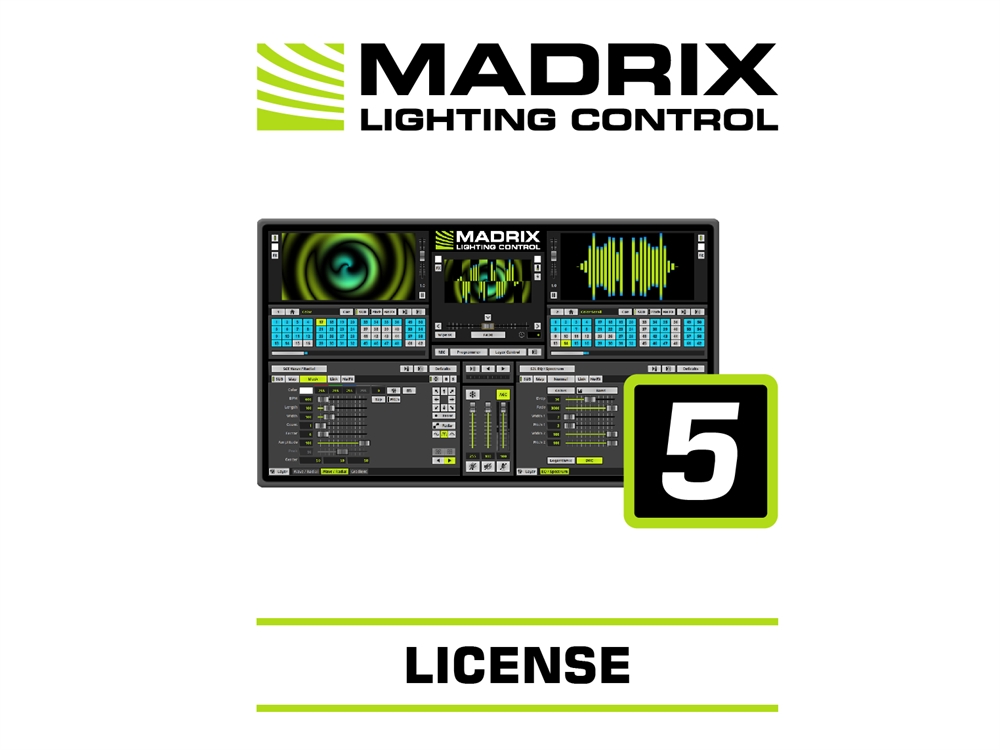

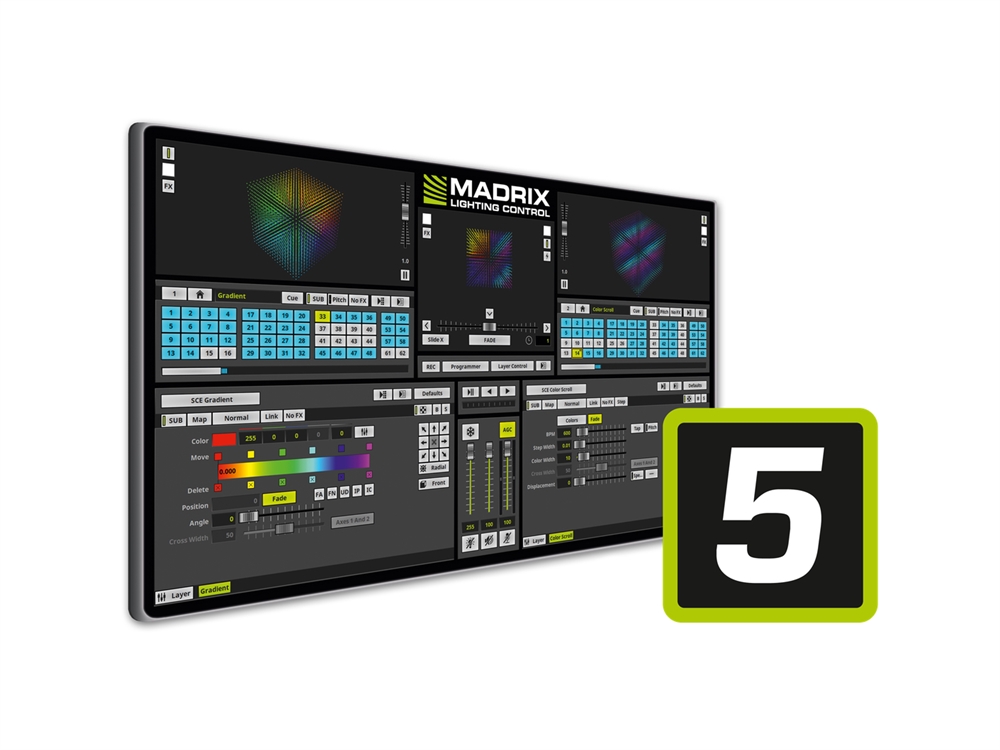

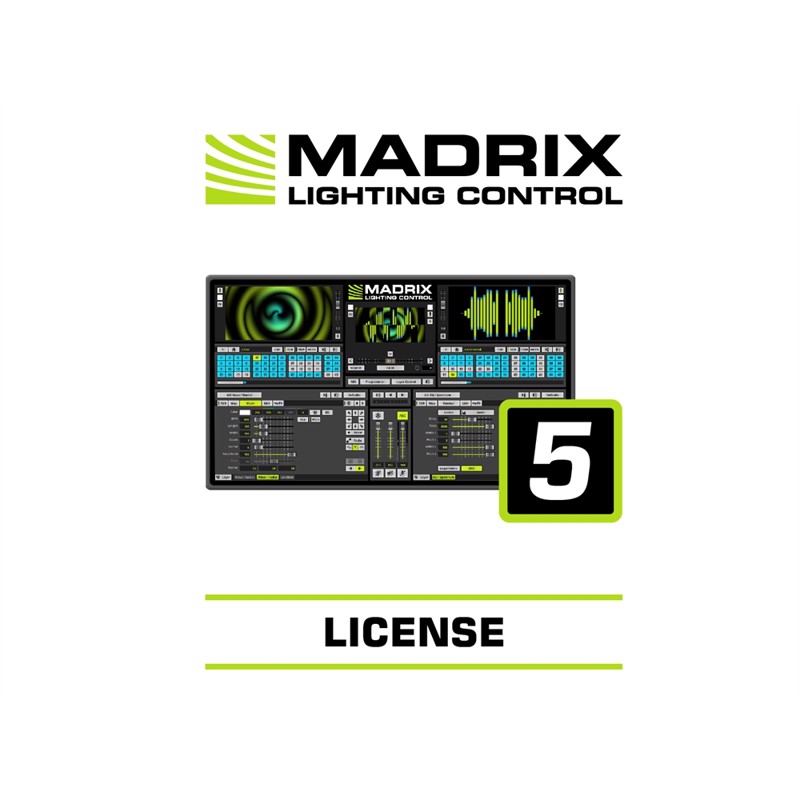

MADRIX Software 5 License basic

MADRIX 5 basic licence

• Includes 1x MADRIX 5 License basic
• Requires a valid, empty, and metallic MADRIX KEY
• MADRIX 5 is a powerful, easy-to-use, and award-winning LED lighting control software
• Allows you to realize all kinds of different LED projects and lighting designs
• A normal PC/laptop can be used for professional LED control
• Activates output for up to 32x 512 DMX channels (16,384 DMX channels, or 32 DMX universes, for example) and up to 262,144 DVI voxels (a resolution of 512 x 512 pixels, for example)
• The license is activated via a USB dongle and can be used flexibly on different computers as needed
• Can be upgraded to higher licenses (up to MADRIX 5 License maximum)
• Online activation is initially required one time
• Only one MADRIX 5 License is possible per MADRIX KEY
• Only one MADRIX 5 KEY can be connected to the software
• Supports many industry protocols and communication standards for direct connection to your LEDs and LED controllers: Art-Net (I, II, 3, 4) (Unicast & Broadcast), DMX512, Philips Color Kinetics KiNET (V1 / V2), Philips Hue, SPI (via MADRIX NEBULA), Streaming ACN (sACN / E1.31) (Unicast & Multicast), ColourSmart Link, Colorlight A8, Colorlight 5A, Colorlight T9, DVI (VGA, HDMI, and more), Eurolite T9
• Even more options are available via converters or bridging tools
• Allows mapping in 2D (pixel mapping) as well as real, spatial 3D (voxel mapping)
• The software generates unique effects, visuals, and animations live and in real time
• No additional content is required
• Already includes a multitude of stock effects that are fully customizable (in speed, color, shape, direction, size, movement, position, brightness, and many more)
• Analyzes incoming audio signals for Sound2Light and Music2Light in real time (WDM or ASIO)
• TRI effect category for interactive performances
• New lighting scenes can easily be created in seconds
• Supports media server features also: Conveniently load and play back images, pictures, logos, and videos as well as live video signal capturing, screen capturing, scrolling text (ticker), and more
• Supports audio playback for videos
• Variety of options to combine visuals and graphical elements (layers, mix modes, filters, etc.)
• Clean and simple user interface with 2 themes (dark and light)
• DJ-/VJ-like operation with 2 decks (A/B) and a crossfader
• 256 x 256 Storage Places to organize and store effects
• 3 real-time previews to show your visual effects in advance (incl. 2D/3D, zoom, rotation)
• 2 DVI outputs
• Controls up to 4 color channels per pixel/voxel (1-channel, 2-channel, RGB, RGBW fixtures, for example)
• Freely configurable Cue List for automated playback of a show (incl. time, date, duration, etc.)
• Supports Time Code (Art-Net, MIDI, SMPTE, and System Time)
• Input, interoperability, and remote control available through industry standards: Art-Net (I, II, 3, 4), Blackmagic Design (DeckLink, Intensity, and more), CITP, DMX512, GamePort, MA-Net 1 / MA-Net 2, MADRIX I/O, MIDI, NewTek NDI (Send & Receive), Remote HTTP (Web Server), Spout (Send & Receive), Streaming ACN (sACN / E1.31)
• Even more options are available via converters or bridging tools
• Accompanying Fixture Editor including large fixture library
• Comfortable patching features (incl. Matrix Generator, graphical Patch Editor with background image support, DVI Patch, CSV Fixture List Import, Fixture List Export, and more)
• Includes various other tools and features (Art-Net Time Code Sender, DMX Fader Tool, DMX Watcher, MIDI Watcher, Touch Screen window, backup system, scripting, mapping, scaling, etc.)
• Supports various 3rd-party interfaces via aforementioned standards as well as MADRIX hardware interfaces (sold separately)
• Minimum system requirements: 2.0 GHz dual-core CPU, OpenGL 2.1 graphics card (NVIDIA recommended), 2 GB RAM, 1 GB free harddisk space, 1280 x 768 screen resolution, network card, sound card, USB 2.0 (optimal system specifications will often be higher)
• Supported operating systems: Microsoft Windows 7 8 8.1 10 (64 bit only)
• Software and installation instructions available in English, German, Spanish, French, and Simplified Chinese
• All user manuals are provided digitally and available in English
• User manuals also available at help.madrix.com
• Made in Germany
• Free software demo mode and more information available at www.madrix.com
• Made in Germany
