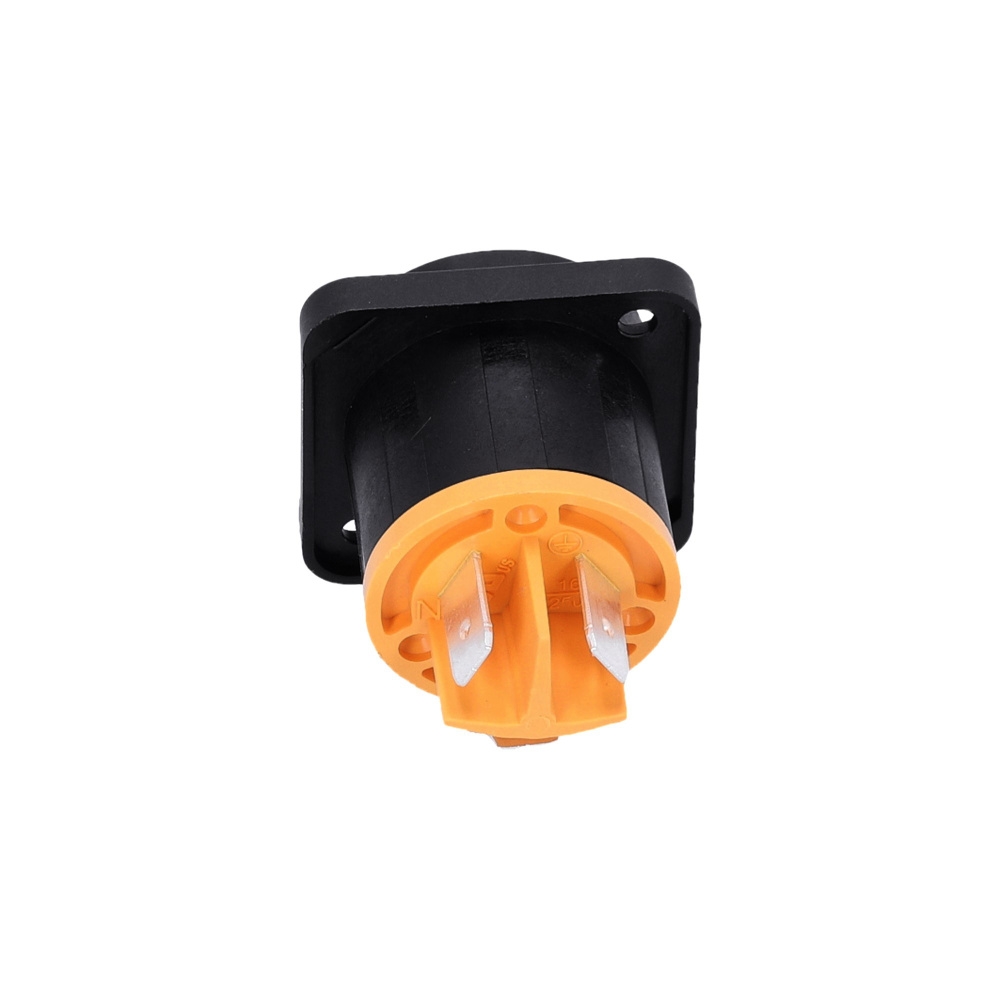

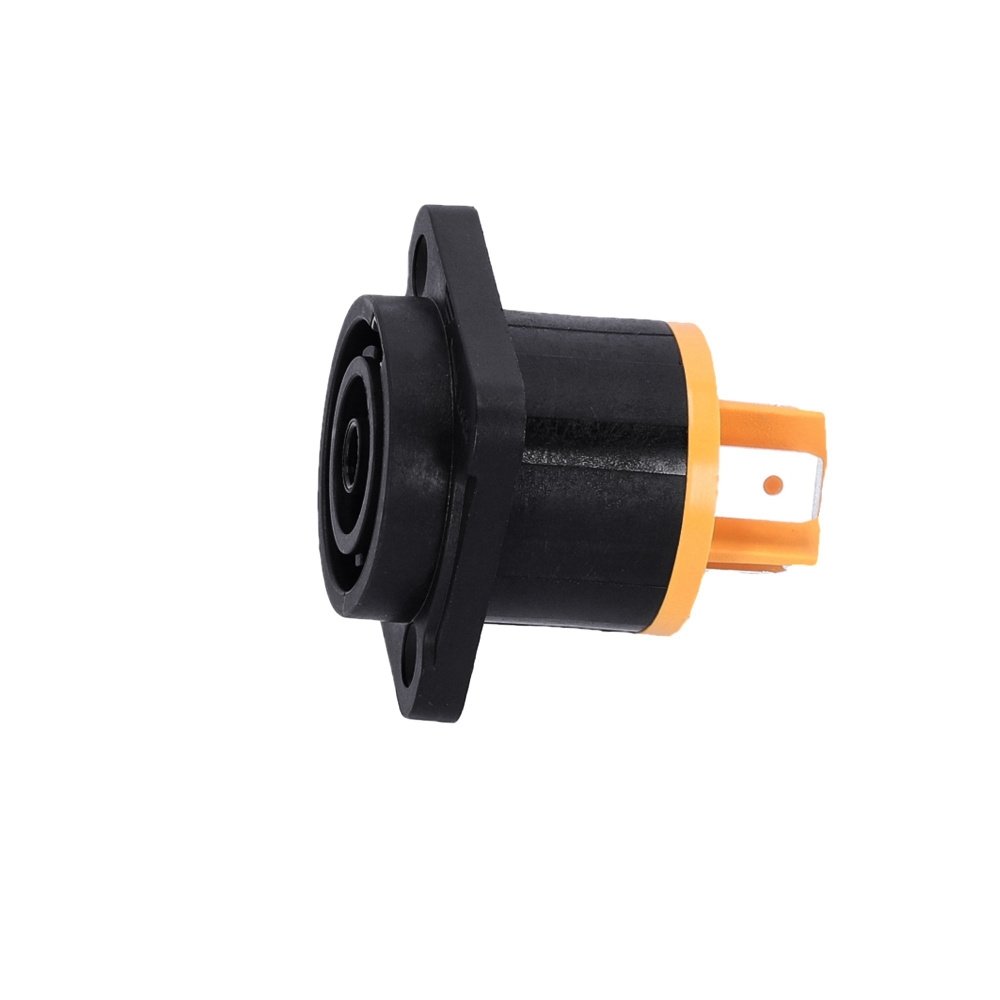

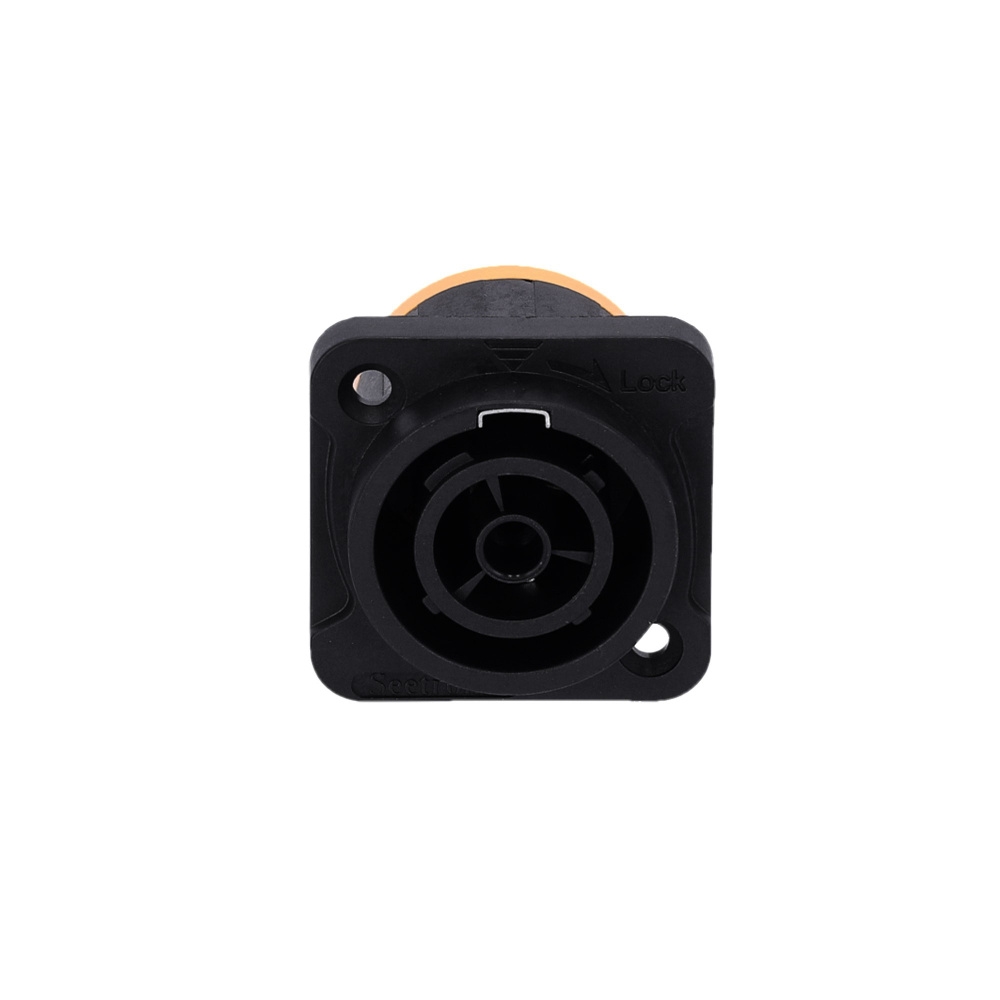

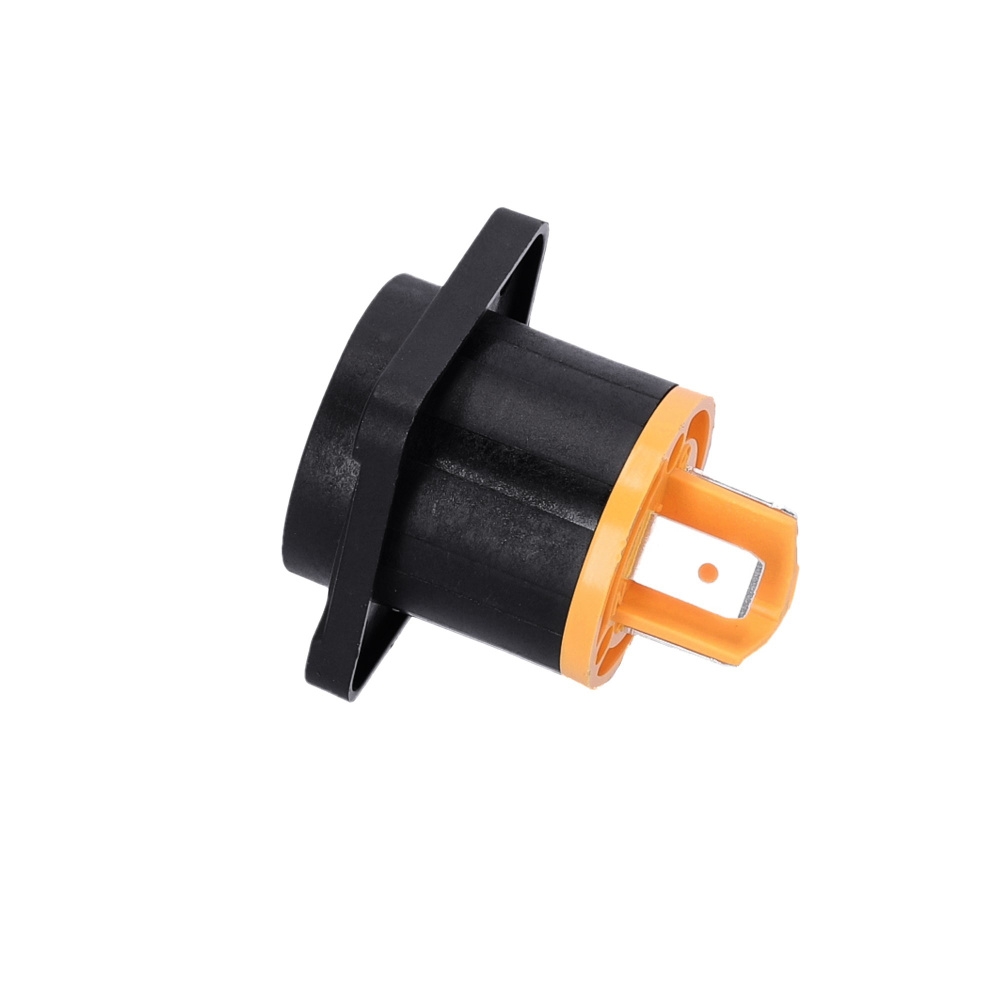

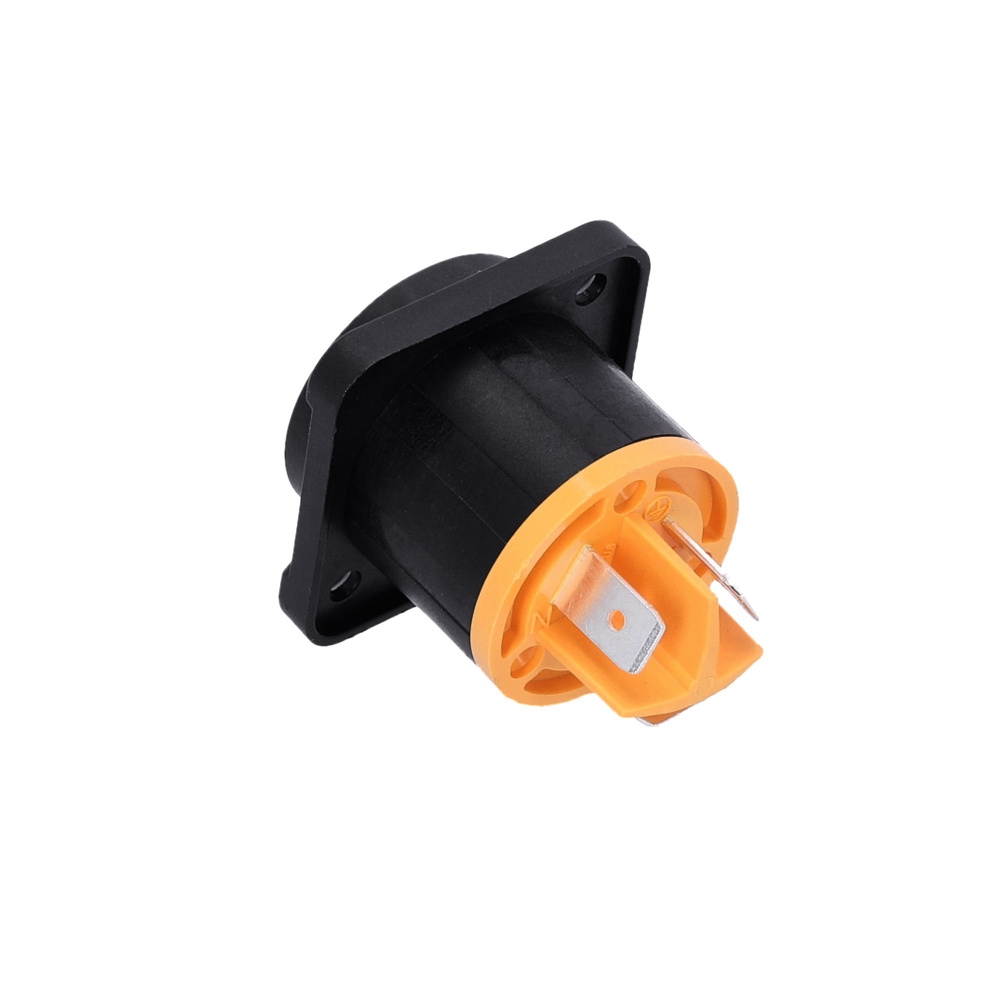

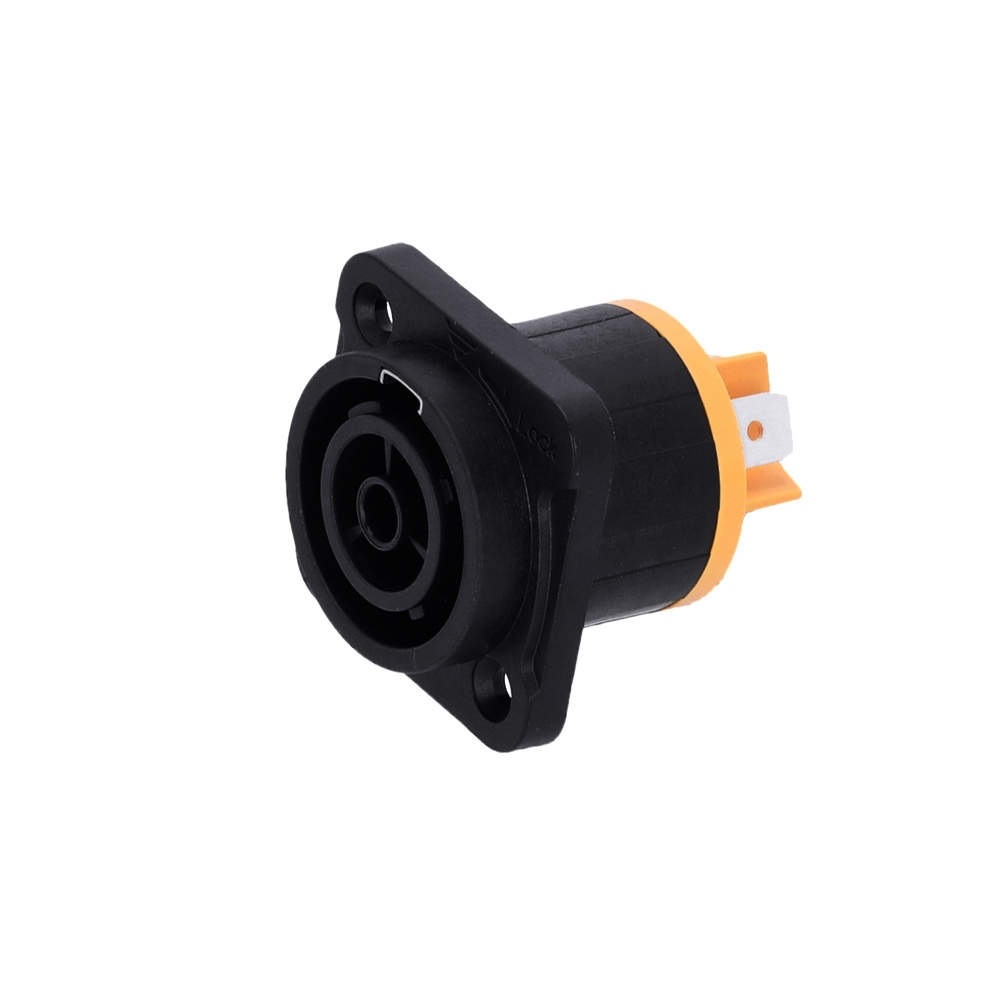

Mains plug device chassis connector female - IP65 - Adam Hall Connectors

Mains plug device chassis connector female - IP65 - Adam Hall Connectors
  • På lager
  • På lager, 3-8 Hverdage
  • Bedømmelse for Mains plug device chassis connector female - IP65 - Adam Hall Connectors
    Produktet er endnu ikke bedømt
  •
    64,50DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner




The 3-pole mains socket replaces cold appliance plugs where a very robust locking solution is needed. Compatible with all common powerCON TRUE1-TOP plugs, our 4 STAR built-in socket is a robust and good choice for powering devices with locking power connection. Load capacity up to 16 A / 250 V AC. IP65 protected when mated.With UL recognised components.

  • Mains connector with neutral conductor from our 4 Star Series
  • Current carrying capacity up to 16 A / 250V AC
  • Dust and splash-proof when plugged in (IP65)
  • Quick and easy locking
  • Compatible with all common powerCON TRUE1-TOP sockets


Product typePlugs and Connectors
TypePower Connectors
Poles3
Genderfemale
Cable diameter8 - 11 mm
ContactsBronze
Connection typeScrew terminals
Housingpolyamide
Strain reliefpolyacetal
Width26 mm
Height31 mm
Depth40.7 mm
Weight0,027 kg
Varenr.: A-K4PPFTCON
