Mini XLR chassis bøsning REAN, 4-pol

Mini XLR chassis bøsning REAN, 4-pol
  • På lager
  • Fjern lager, 1-4 hverdage
  • Bedømmelse for Mini XLR chassis bøsning REAN, 4-pol
    Produktet er endnu ikke bedømt
  •
    29,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner

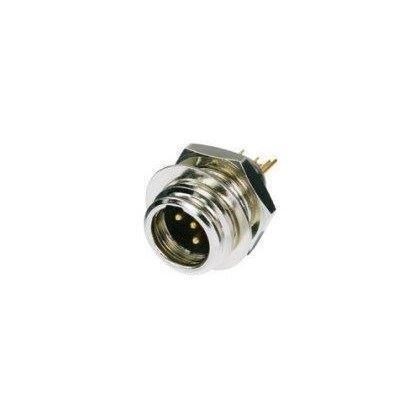

4 pole TINY xlr male chassis connector, nickel housing, gold plated contacts, max. panel thickness: 6 mm



Title RT4MP Electrical Contact resistance < 5 mΩ (inner) Dielectric strength > 0.5 kVdc Insulation resistance > 1 GΩ Rated current per contact < 5 A Mechanical Lifetime > 1000 mating cycles Panel thickness max. 6 mm Wiresize 0.22 mm² Wiresize 24 AWG Environmental Temperature range -30 °C to +85 °C
Varenr.: NEU-RT4MP
