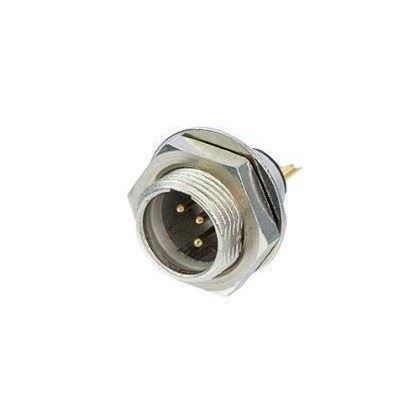

3 pole TINY xlr male chassis connector, nickel housing, gold plated contacts, max. panel thickness: 3 mm
Title RT3MPR Electrical Contact resistance < 5 mΩ (inner) Dielectric strength > 0.5 kVdc Insulation resistance > 1 GΩ Rated current per contact < 5 A Mechanical Lifetime > 1000 mating cycles Panel thickness max. 3 mm Wiresize 0.22 mm² Wiresize 24 AWG Material Contact plating Au Contacts Brass (CuZn38Pb3) Insert PA 6 30 % GR Shell ZuAl4Cu1 Shell plating Nickel Environmental Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +85 °C
