Monteringskasse - AH-101/SW - MONACOR

• På lager
• På lager, 2-4 dage
• Bedømmelse for Monteringskasse - AH-101/SW - MONACOR

  Produktet er endnu ikke bedømt

•
  174,00DKK ved 1 stk.

Vis uden moms

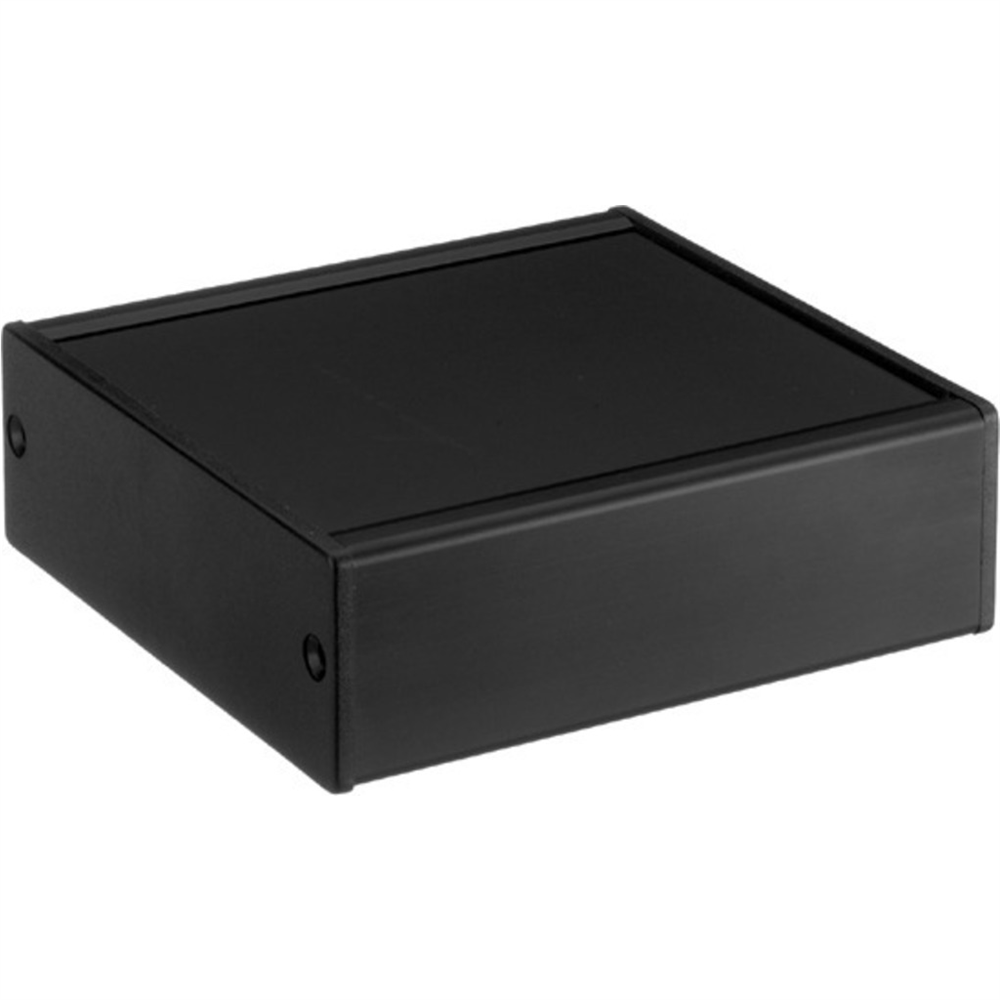

Series of utility cases.

Series of Utility Cases

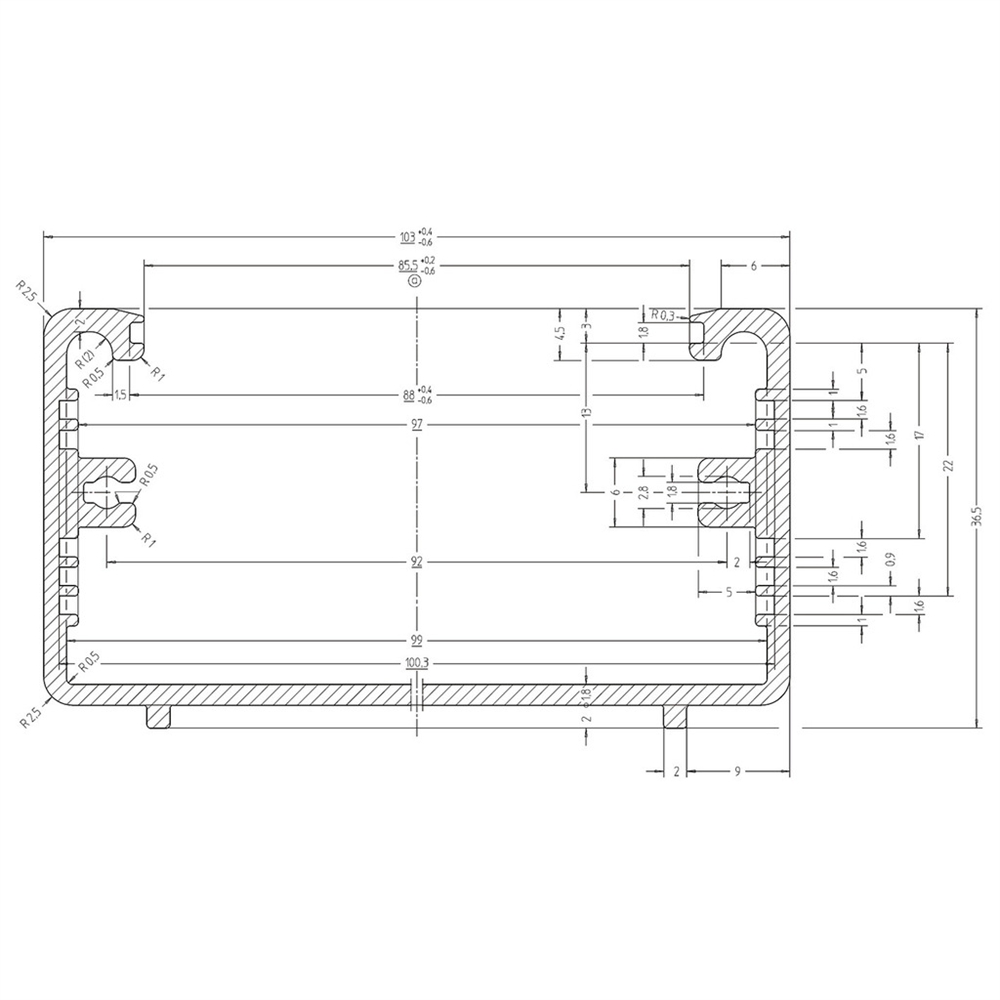

• Made of extruded profile with insertion grooves for printed circuits in different heights (12/17/22 mm distance to the front panel)
• Exchangeable front panel with protective foil of 1.5 mm aluminium plate
• Mat black ABS plastic side covers
• Material surface is anodised and mat etched or black (SW)
• Total height: 36.5 mm



Intended use	case
Material	aluminium sheet, ABS plastic, black
Dimensions	103 x 36.5 x 107 mm
Width	103 mm
Height	36.5 mm
Length	107 mm
PCB dimensions	100 x 100 mm
Weight	159 g

Varenr.: 333040
