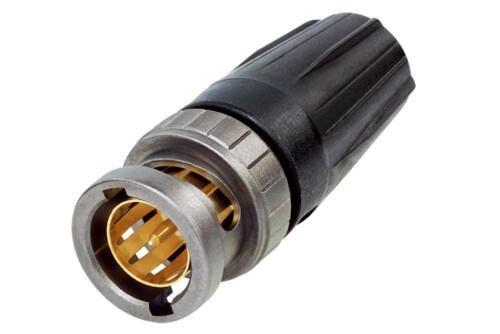

Neutrik NBNC75BZV14X
RearTWIST UHD BNC-stikkene er specielt designet til højopløsnings videosignaltransmissioner. På grund af det unikke isolator- og kontaktstiftdesign har stikkene lave værdier for returtab for 4K- og 8K-signaler.
Passer bla. til CAE UHD145612G videokabel
Title NBNC75BZV14X
Connection Type BNC 75 ?
Gender male
Electrical
Contact resistance ? 3 m? (inner)
Contact resistance ? 2 m? (outer)
Dielectric strength 1.5 kVdc
Impedance 75 ?
Insulation resistance > 5 G?
Rated voltage < 50 V
VSWR ? 1.6 / > 23 dB up to 6 GHz
? 2.3 / >15 dB up to 12 GHz
? 3.9 / >12 dB up to 18 GHz
Mechanical
Cable O.D. 8.1 mm
Cable retention > 30 N (center)
Crimp size 8.23 Hex crimp (shield)
Crimp size (pin) 1.6 crimp
Insertion force < 25 N
Lifetime > 1000 mating cycles
Locking device Bayonett
Cable anchoring Jacket crimping
Material
Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (center contact)
Shell Brass (CuZn39Pb3)
Shell plating Antraloy
Insert PP
Environmental
Temperature range - 30 °C to +85 °C
Contact crimpability Complies with IEC 60803 and IEC 60352-2
