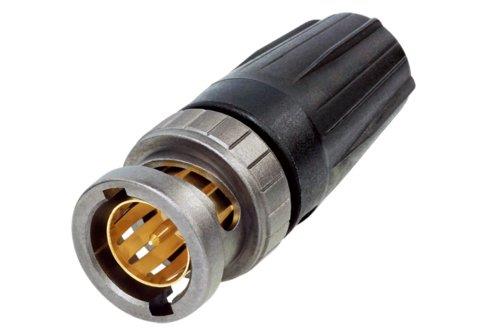

NBNC75BJP9X BNC stik UHD kompatibel med bl.a. Belden 1505F
NBNC75BJP9X rearTWIST UHD BNC-kabelstikket er specifikt designet til h?jopl?selige video-signaltransmissioner. Stikkets unikke isolator og kontakt pin-design s?rger for at signaltabet er minimalt ved 4K og 8K signaler.
NBNC75BJP9 rearTWIST HD BNC-kabelstikket tilbyder et 75ohm design og egner sig perfekt til HD-applikationer.
Egnede kabler: Belden 1505F, Bryant BD SD53F, Cordial CVI 08-37 HD, Klotz VD083LP 0.8L/3.7DZ, Tesca Presto
Contact resistance: ≤ 3 mΩ (inner)
Contact resistance: ≤ 2 mΩ (outer)
Dielectric strength: 1,5 kVdc
Insulation resistance: > 5 GΩ
Rated voltage: VSWR: ≤1.06/>30 dB up to 6 GHz, ≤1.13/>24 dB up to 12 GHz, ≤1.22/>20 dB up to 18 GHz
Cable O.D.: 6.3 mm
Cable retention: > 30 N (Center)
Crimp size: 6,47 Hex crimp (shield) acc. IEC 60803 (die designation E)
Crimp size (pin): 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Insertion force: Lifetime: > 1000 mating cycles
Locking device: Bayonett
Cable anchoring: Jacket crimping
Temperature range: -30 ?C to +85 ?C
Contact crimpability: Complies with IEC 60803 and IEC 60352-2
