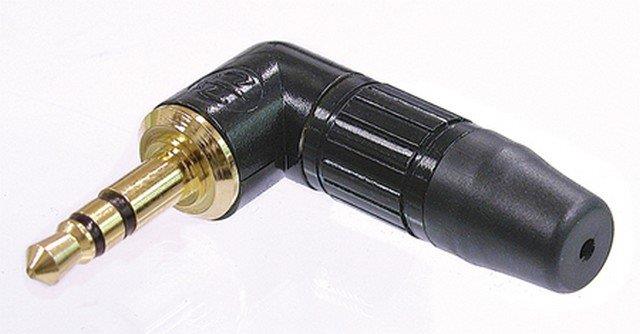

NTP3RC-B Mini jackstik stereo, vinkel, sort hus
3 polet 3,5 mm lydstik, loddetermination, chuck-type aflastning, b?sning, sort hus, forgyldte kontakter. Den accepterer kabler fra 2,0 til 4,5 mm.
Contact resistance: depends on mating connector mΩ
Dielectric strength: 1 kVdc
Insulation resistance: > 2 GΩ (initial)
Rated voltage: Cable O.D.: 2 - 4.5 mm
Wiresize: 0,22 mm?
Wiresize: 24 AWG
Wiring: Solder contacts
Bushing: Brass (CuZn39Pb3) + PU, black Cr
Contact plating: 0.2 ?m Au
Contacts: Brass (CuZn39Pb3)
Insert: Polyamide (PA 6.6 15 % GR)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Black chromium
Strain relief: Polyacetal (POM)
Solderability: Complies with IEC 68-2-20
Temperature range: -20 ?C to +65 ?C
