NEUTRIK Povercon t/230V - NAC3MPXXB

• På lager
• På lager, 2-4 dage
• Bedømmelse for NEUTRIK Povercon t/230V - NAC3MPXXB

  Produktet er endnu ikke bedømt

•
  43,00DKK ved 1 stk.

Vis uden moms

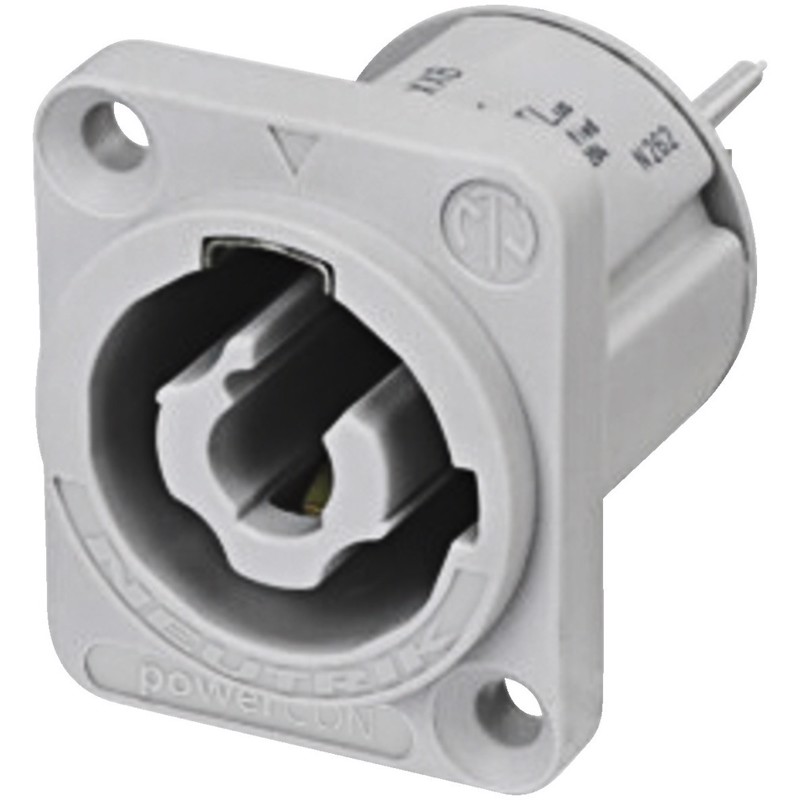

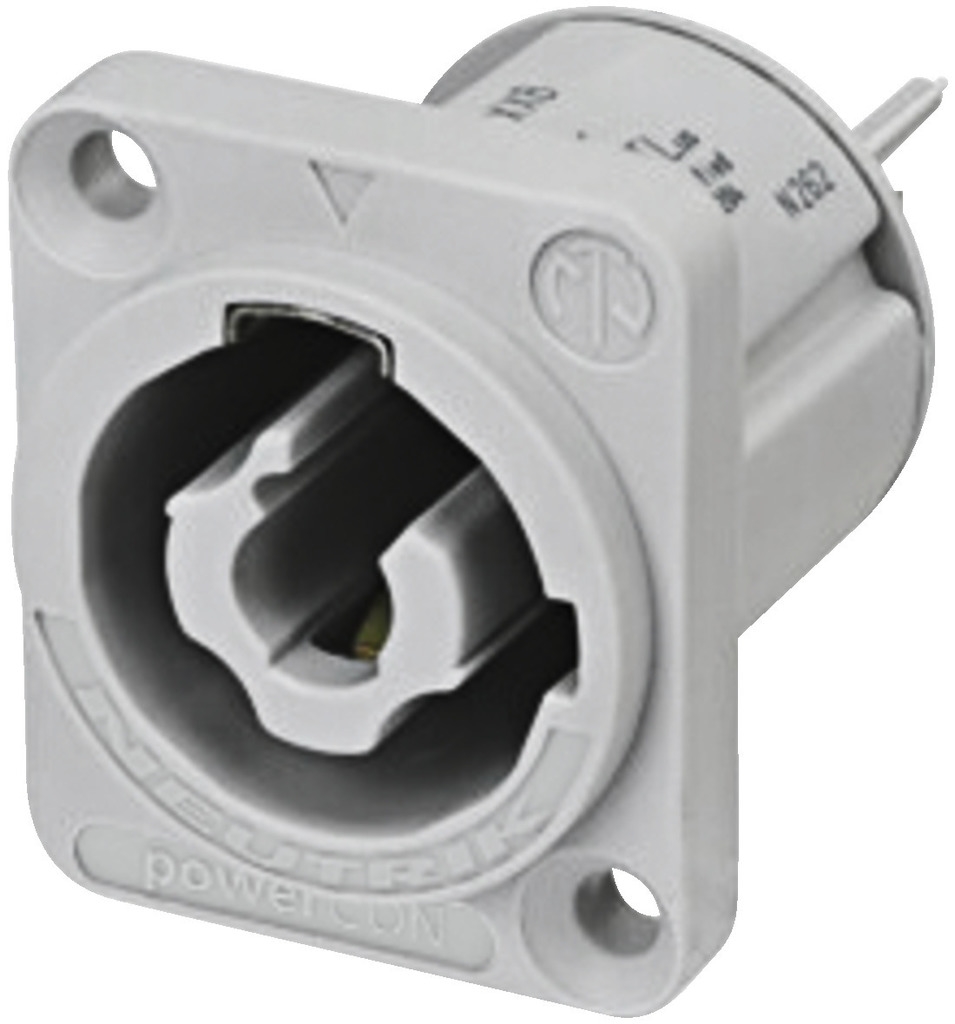

NEUTRIK POWERCON panel jack

• For mains connection up to ∿ 250 V/20 A
• Version for mains output
• Connections for ground, phase and neutral connector
• Self-extinguishing according to UL-94 V-0



Description	panel jack, output
Type	NEUTRIK POWERCON
Quantity	1
Features	latching device, all-insulated contacts
Colour/colour coding	grey
Power rating	∿ 250 V/20 A
Insulating resistance	> 10 GΩ
Dielectric strength	DC 4 kV
Certification	UL, CUL, VDE, Electroswiss
Pole number	2 + PE
Cable inlet	-
Suitable cable cross section	-
Connection	blade terminals, 4.8 mm
Strain relief	-
Cable bending protection	-
Stereo	-
Mono	-
Switches	-
Material	silver-plated bronze contacts, plastic
Central fixing	-
Contact type	-
No. of contacts	-
Contact width	-
Contact distance	-
Admiss. ambient temp.	-30-+80 °C

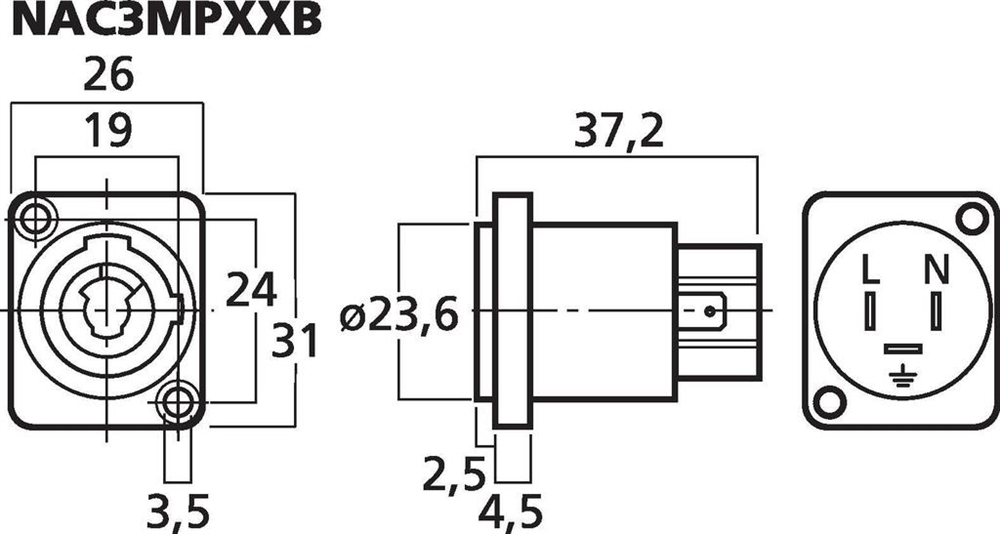

Dimensions	26 x 31 x 37.2 mm
Diameter	-
Length	37.2 mm
Weight	12 g
Other features	-

Varenr.: 1001023
