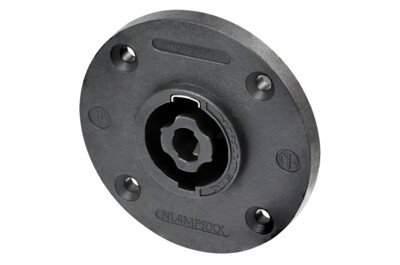

4 pole chassis connector, black round G-size flange, countersunk thru holes, 3/16 flat tabs. The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, m
Teknisk specifikationer Contact resistance≤ 3 mΩ Dielectric strength4 kVdc Insulation resistance> 1 GΩ Rated current per contact30 A rms continuousRated current per contact40 A audiosignal, duty cycle 50 % Rated voltage250 V (AttentionspeakON is NOT to be used as an AC mains or power supply connector) Lifetime> 5000 mating cycles Locking device Quick LockChassis shape round G-size flange Layout four thru holes Contact plating 4 µm Ag Contacts Bronze (CuSn6) Shell Polyamide (PA 6 30 % GR) black Flammability UL 94 HB Solderability Complies with IEC 68-2-20 Temperature range-30 °C to +80 °C
