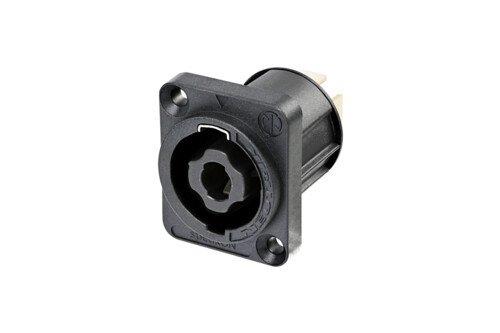

NL4MP SpeakON han chassis stik
4 polet -polet chassisstik, sort D-størrelse flange, forsænkede gennemgående huller, 3/16" flade faner.
SpeakON panelmonteringsstikkene er standard chassisstik til højttaler-/forstærkerforbindelser. De har et unikt metallåsesystem, der kun får kontakt, når de er helt låst. speakON-stikkene er robuste, alsidige og nemme at afslutte.
Title NL4MPXX
Gender male
Electrical
Contact resistance ? 2 m?
Dielectric strength 2.8 kVac
Insulation resistance >0.1 G? (after dampheat)
Rated current per contact 25 A rms continuous (audio rating significantly higher, depending on signal)
Rated voltage 250 V ac
Attention speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime > 5000 mating cycles
Termination 3/16" flat tabs (e.g. NLFASTON)
Locking device Quick Lock
Chassis shape D
Layout standard hole position, thru holes
Material
Contact plating Ag
Locking element Stainless Steel
Shell Polyamide (PA 6.6)
Contacts Copper Alloy
Environmental
Flammability UL94 V-0
Temperature range -30 °C to +80 °C
