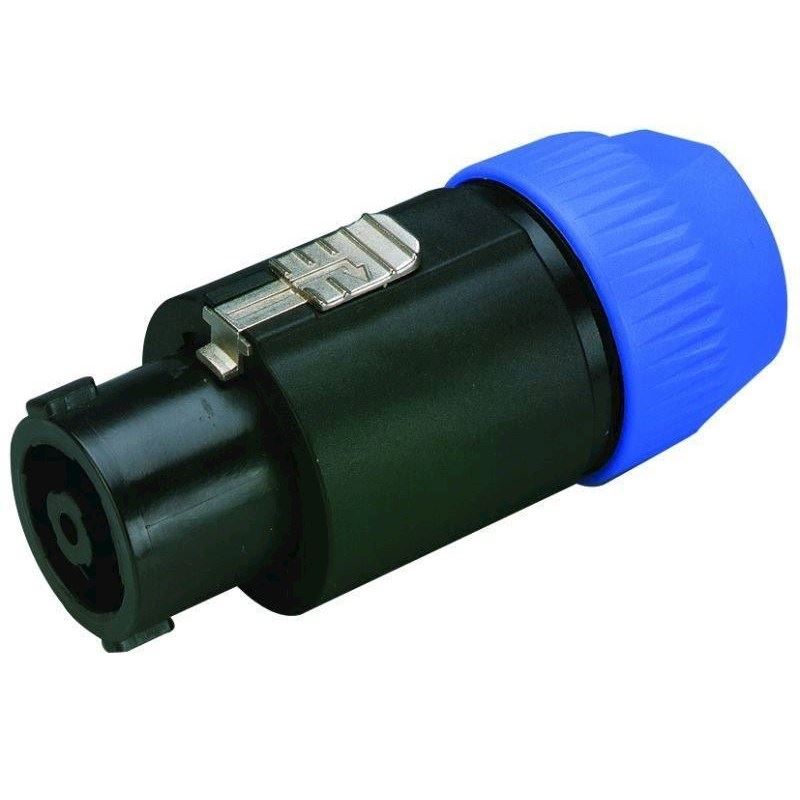

Neutrik speakon kabelstik. 8 pol. NL-8FC

Neutrik speakon kabelstik. 8 pol. NL-8FC
  • På lager
  • Lagervare 1-2 hverdage
  • Bedømmelse for Neutrik speakon kabelstik. 8 pol. NL-8FC
    Produktet er endnu ikke bedømt
  •
    157,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner

Spørg til denne vare
Plug,
Katalog side 191

NEUTRIK SPEAKON Connectors
Series of Speakon connectors for professional speaker connection technology. Robust design, latching device, all-insulated contacts, cable inlet with self-adjusting clamps.
  • Contact resistance: < 2 mΩ
  • Current rating: 50 A (music signal)
  • Self-extinguishing according to UL 94V-0
NEUTRIK SPEAKON plug
  • 8-pole screw terminal for litz wires up to 4 mm2
  • For cables: Ø 8-20 mm
Typeplug
TypeNEUTRIK SPEAKON
Quantity1
Featureslatching device
Colour/colour codingblue, black
Power rating-
Insulating resistance-
Dielectric strength-
CertificationUL94V0
Pole number8
Cable inletØ 8-20 mm
Suitable cable cross section4 mm2
Connection4-pole screw terminal
Strain relief-
Cable bending protection-
Stereo-
Mono-
Switches-
Material-
Central fixing-
Contact type-
No. of contacts-
Contact width-
Contact distance-
Admiss. ambient temp.0-40 °C
Dimensions-
Diameter-
Length-
Weight65 g
Other features-

Varenr.: 344250
