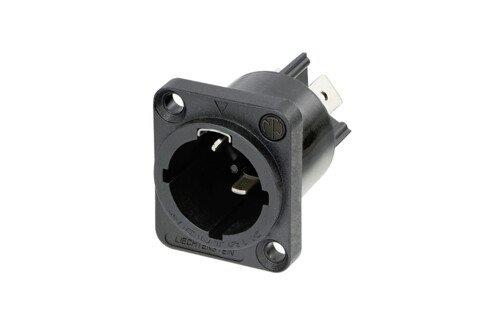

NAC3MPX-TOP
Appliance inlet connector, 1/4" flat tab terminals
The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Heavy duty sealed power connector for harsh and demanding environmentIP65, UL50E enclosure type4 rating in combination with SCNAC-MPX(mated or with closed cap)Uses high impact UV-resistant materialsTrue mains connector with breaking capacity (CBC)Lockable 16 A single phase connector (USA: 20 A)Easy and reliable twist lock systemExtremely robust and reliable Unique Neutrik cable retentionENEC certified according to IEC 60320UL498 certified
Product
Title NAC3MPX-TOP
Electrical
Contact resistance ? 2 m?
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 1 G? (after damp heat test)
Number of electrical contacts 2 + PE
Rating Europe EN 60320-1: 16 A 250 V AC
Rating USA UL 498: 20 A 250 V AC
Mechanical
Lifetime > 5000 mating cycles
Wiresize 2.5 mm²
Wiresize 12 AWG
Material
Contact plating 2 µm Ag
Locking element Stainless steel
Shell Polyamide (PA 6.6)
Contacts Spring Copper (CuSn0.2)
Environmental
Flammability UL 94 V-0
Protection class IP65, UL50E enclosure type4 rating in combination with SCNAC-MPX (mated or with closed cap)
Temperature range - 30 °C - +80 °C
