NAC3FX-W-TOP

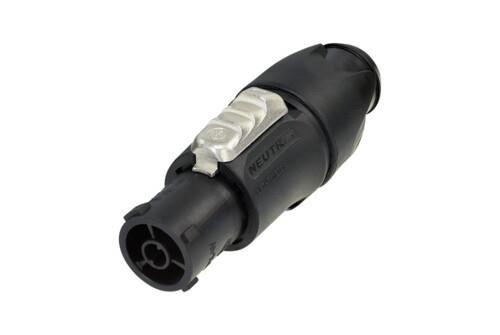

The powerCON TRUE1 TOP is a locking true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Keyed for Power IN, screw terminals, up to 16 A (USA: 20A)
The powerCON TRUE1 TOP is a single-phase connector with breaking capacity (CBC).
Product
Title NAC3FX-W-TOP
Connector series powerCON TRUE1TOP
Electrical
Contact resistance ≤ 2 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 0,1 GΩ (after damp heat test IEC 68-2-30)
Number of electrical contacts 2 + PE
Rating Europe EN 60320-1: 16 A 250 V AC
Rating USA UL 60320-1 & C22.2 No. 60320-1:19: 20 A 250 V AC
Mechanical
Cable O.D. 6 - 12 mm (0.23 – 0.47 inches)
Lifetime > 5000 mating cycles
Wiresize 1.0 - 2.5 mm²
Wiresize 12 AWG
Material
Contact plating 2 µm Ag
Contacts Bronze (CuSn0.2)
Insert Polyamide (PA 6.6 30 % GR)
Locking element ZuAl4Cu1
Shell Polyamide (PA 6.6 30 % GR)
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 V-0
Temperature range -30 °C to +80 °C
