OMNITRONIC DJP-900P MK2 Class D Amplifier

På lager
På lager, 3-5 hverdage
Bedømmelse for OMNITRONIC DJP-900P MK2 Class D Amplifier
Produktet er endnu ikke bedømt

3.069,00DKK ved 1 stk.

Vis uden moms

Compact stereo mixing amplifier with player + Bluetooth, 2 x 460 W / 4 ohms

OMNITRONIC DJP-900P MK2 Class D Amplifier

The compact stereo mixing amplifier DJP-900P with efficient class D output circuitry is particularly suitable for permanent installations in restaurants, gyms and retail locations which require quick-access music playback control. It provides 2 x 460 watts at 4 ohms and makes mixing of a stereo line source and a microphone easy.
For double output power it is possible to switch to bridge mode. Then 900 watts are provided.

Low-impedance speakers and PA speakers with 100 V audio transformers can be connected. Stream your music wirelessly from your smartphone, tablet or computer via Bluetooth to the built-in audio player, which also offers slots for USB storage devices and SD(HC) memory cards. Extensive protective circuits provide protection e.g. against short circuit, overload and overheating.

The compact stereo mixing amplifier DJP-900P with efficient class D output circuitry is particularly suitable for permanent installations in restaurants, gyms and retail locations which require quick-access music playback control. It provides 2 x 460 watts at 4 ohms and makes mixing of a stereo line source and a microphone easy. For double output power it is possible to switch to bridge mode. Then 900 watts are provided.Low-impedance speakers and PA speakers with 100 V audio transformers can be connected. Stream your music wirelessly from your smartphone, tablet or computer via Bluetooth to the built-in audio player, which also offers slots for USB storage devices and SD(HC) memory cards. Extensive protective circuits provide protection e.g. against short circuit, overload and overheating.

Compact stereo mixing amplifier with player + Bluetooth, 2 x 460 W / 4 ohms

For quick-access music playback control in restaurants, fitness studios and retail locations
Built-in audio player with Bluetooth receiver
Extremely low weight and height due to integrated switch mode power supply
2 operating modes can be selected (stereo or bridge/100V)
Speaker switch-on delay and auto limiters
1 mono microphone input with volume control on the front panel
Audio source selector
Outputs for low-impedance and 100 V speakers
Extensive protective circuits
Robust steel chassis with aluminum front panel

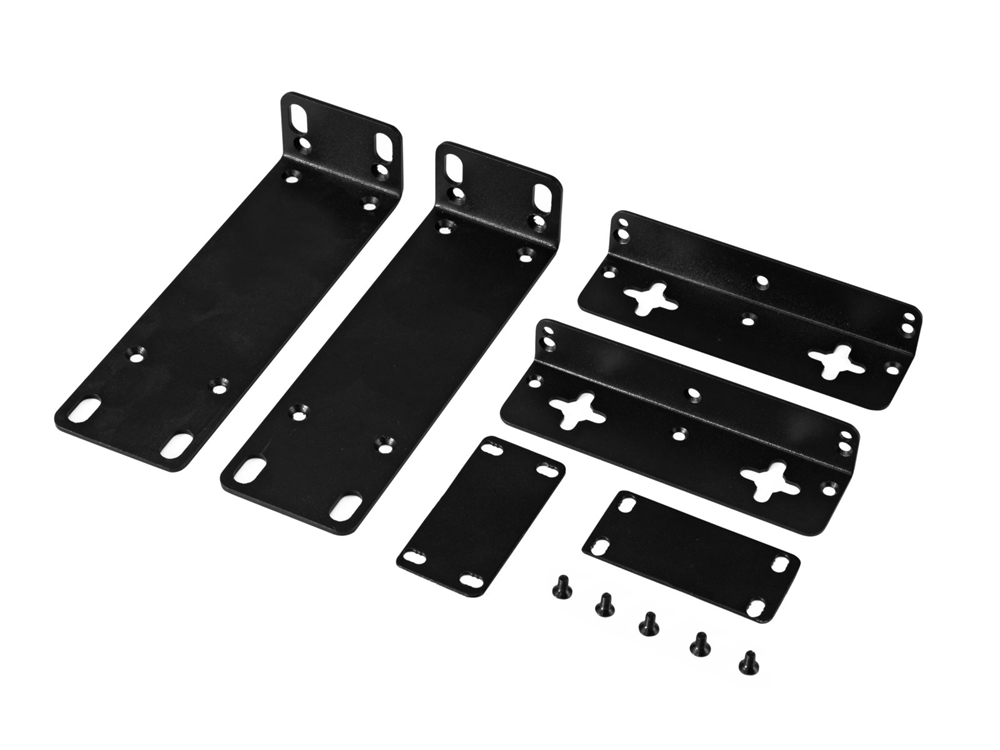

483 mm rack installation possible with supplied mounting brackets
The device is cooled by cooling fan
Desktop console housing; (19") 48.3 cm rack installation (provided) 1 U

Audio player

Controlling by Bluetooth
Bluetooth: Use a operating range up to 10m

Power supply:	230 V AC, 50 Hz
Power consumption:	140 W 1/8 power
Output power:	2 x 460 W RMS (4 ohms) 2 x 240 W RMS (8 ohms) Max. 260 W bridged (100 V) Max. 900 W bridged (8 ohms)
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:	20 - 20,000 Hz
S/N ratio:	>100 dB
THD:	<0,05 % at 1 kHz
Cooling:	Cooling fan
Impedance:	4 ohms; 8 ohms; 16 ohms; Public address systems 100V
Impedance:	Input 20 kOhm , bal. Input 10 kOhm , bal.
Circuitry:	Class D
Slew rate:	>14 V/µs
Damping factor:	>300
Control elements:	Power switch, source selector, EQ controls, level control, mode switch (stereo / bridged/100V)
Controls:	Softstart; short-circuit; overheat; overload; DC voltage; VHF
Equalizer:	Master: 1 x 2-band tone control stereo
Status LED:	Power
Connections:	Input: Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 4 x stereo RCA Input: line via 1 x 3.5 mm jack (stereo) mounting version Output: speakers via 1 x screw terminal Output: rec. via 1 x stereo RCA
Input sensitivity:	1 V
Material:	Metal
Housing design:	Desktop console housing (19") 48.3 cm rack installation (provided) 1 U
Dimensions:	Width: 24,1 cm Depth: 25,6 cm Height: 4,45 cm
Weight:	2,54 kg
Audio player
Control:	Bluetooth
Audio player:	USB + SD + Bluetooth
Format:	MP3, WMA; WAV
Frequency band:	2.4 GHz
Available storage media:	USB devices/SD cards max. 32GB (FAT 16/32)
Range:	10 m Bluetooth

Varenr.: E-10451607
