| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 240 W |
| Output power: | 120 W RMS |
| Power connection: | Fixed power supply cord with safety plug |
| Frequency range: | 50 - 18000 Hz |
| S/N ratio: | >75 dB Microphone
>85 dB line |
| THD: | <0,5 % at 1 kHz |
| Cooling: | Cooling fan |
| Impedance: | Public address systems 100V; 4-16 ohms; Public address systems 70V |
| Control: | IR remote control |
| Audio player: | USB + SD + Bluetooth |
| Zone output: | 6 adjustable zones |
| Circuitry: | Class AB |
| Display type: | LCD display |
| Controls: | Current limiting; short-circuit; power on/off transient; power on/off transient; Overvoltage; short-circuit |
| Status LED: | Power, fault, level meter |

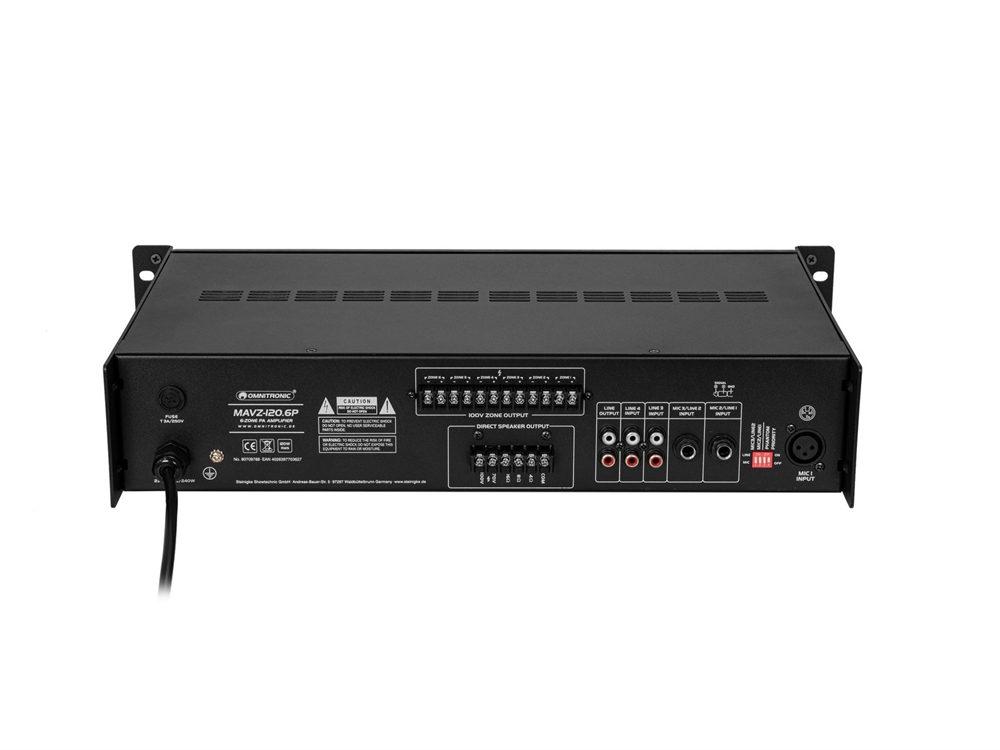

| Connections: | Input: Microphone via 1 x 3-pin XLR
Input: Microphone via 2 x 6.3 mm plug (unbal.)
Input: line via 2 x stereo RCA 0,3 V
Output: line via 1 x stereo RCA
Output: speaker via screw terminal |
| Equalizer: | Master: 1 x 2-band tone control mono |
| Music format: | MP3 |
| Number of files: | Max. 999 |
| Available storage media: | USB devices/SD cards max. 32GB (FAT 32) |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48,3 cm
Depth: 32 cm
Height: 9,2 cm |
| Weight: | 5,70 kg |

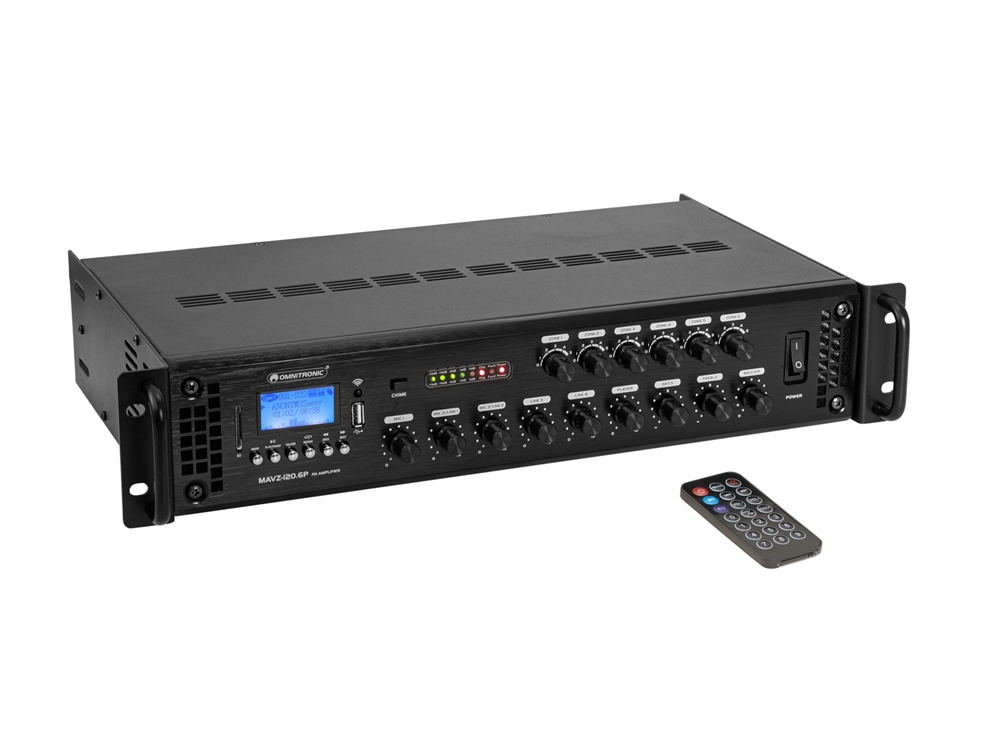

| Remote control |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
