| Weight: | 34,35 kg |

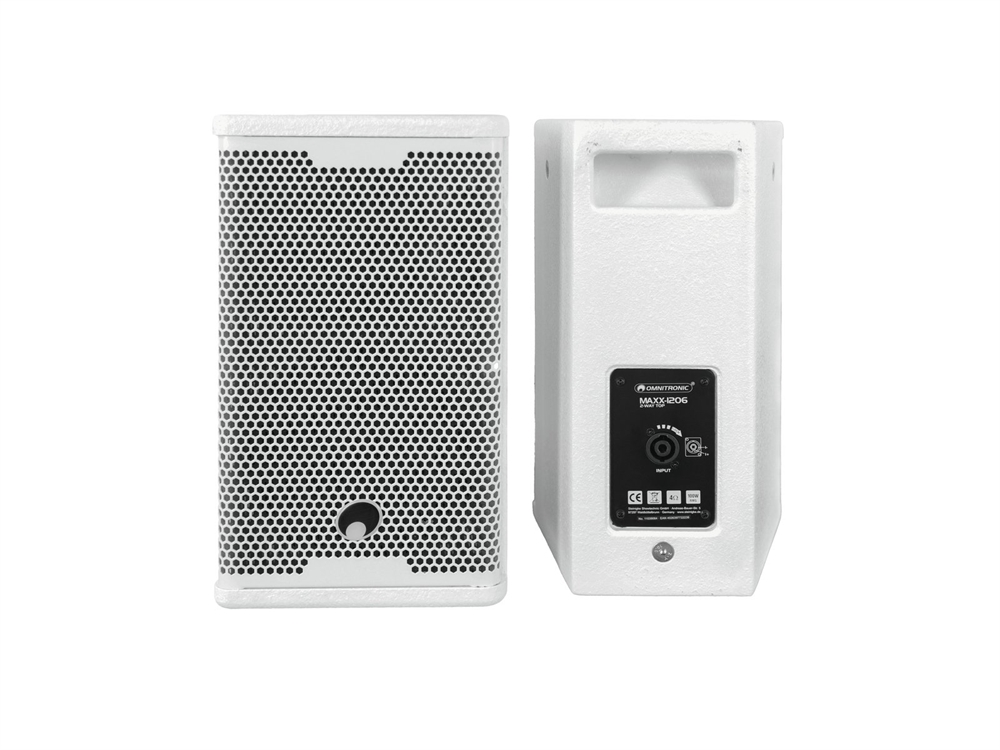

| OMNITRONIC MAXX-1206 2-Way Top 6.5" 2x white |
| Power: | Program: 200W
Rated: 100W RMS |
| Frequency range: | 100 - 17000 Hz |
| Sensitivity: | 91 dB |
| Max. SPL: | 115 dB |
| Dispersion angle: | 90° x 60° |
| Impedance: | 4 ohms |
| Attachment system: | Flange: Ø 35mm |
| Flying points: | 3 x M8 thread |
| Connections: | Input: speaker via 1 x speaker built-in socket (F) |
| Speaker: | 1 x woofer (6.5") approx. 17 cm
Basket material: Steel
Conematerial: Cardboard/paper
1 x compression tweeter highs (1") approx. 2.5 cm |
| Type of speaker: | Compact cabinet speaker |
| Carrying handle: | 1 pc/pcs |
| Material: | MDF (Medium-density fibreboard), 16 mm |
| Color: | White, textured coating, painted |
| Dimensions: | Width: 20,4 cm
Depth: 19 cm
Height: 36,2 cm |
| Weight: | 12,70 kg |
| OMNITRONIC MAXX-1206DSP 2.1 Active Subwoofer 12" white |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 500 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug included |
| Device fuse: | 5 x 20 mm, T 4 A Fuse replaceable |
| Power: | Rated: 250W RMS LF
Rated: 2x 100W RMS HF |
| Frequency range: | 38 - 250 Hz Bass
100 - 17000 Hz Top |
| Sensitivity: | 97 dB |
| Max. SPL: | 119 dB |
| DSP: | Digital signal processor |
| DSP presets: | FLAT; DJ; LIVE |
| Control: | Bluetooth |
| Bluetooth device name: | OMNITRONIC MAXX1206 |
| Attachment system: | Flange: M20 thread |
| Circuitry: | Class D |

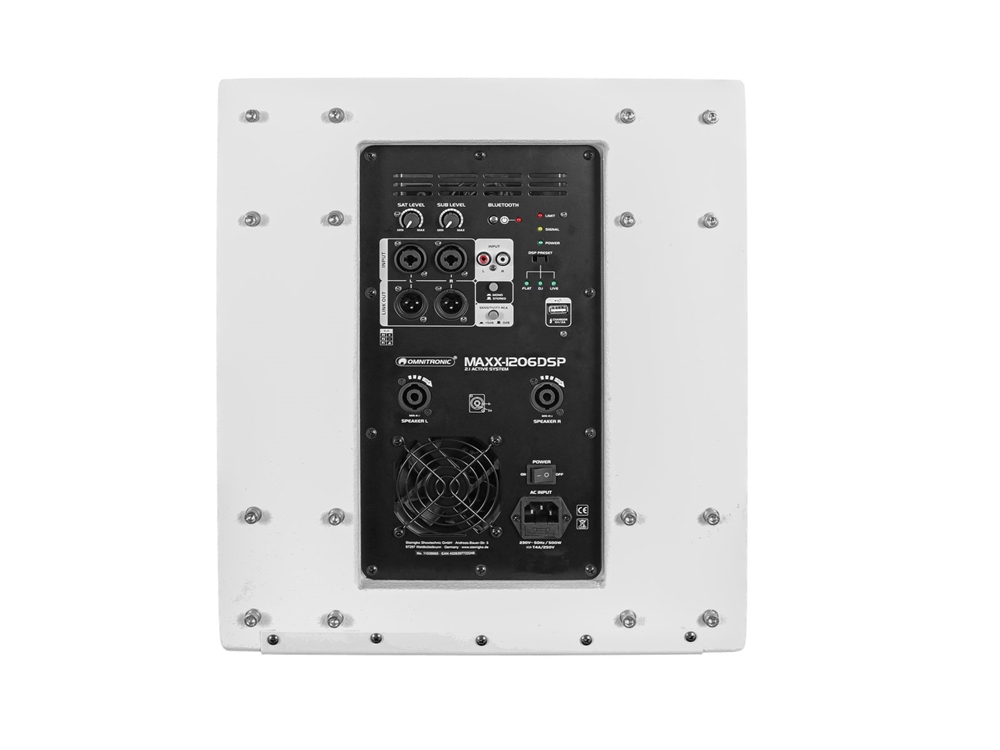

| Control elements: | Power switch, level control, Input sensitivity switch, connect, tone control |
| Controls: | Limiter |
| Status LED: | Power, signal, limit, pairing, DSP presets |
| Connections: | Input: line via 1 x stereo RCA
Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: line via 2 x 3-pin XLR (M) mounting version
Output: speaker via 2 x speaker built-in socket (F) |
| Input channels: | 1 x stereo via XLR or RCA or bluetooth, channel control via Rotary dial |
| Speaker: | 1 x woofer (12") approx. 30 cm with ferrit magnet
Basket material: Steel
Conematerial: Cardboard/paper |
| USB port: | 1 x Typ C, 2 A |
| Type of speaker: | Subwoofer |
| Type of construction: | Vented |
| Transport aid: | Rubber feet
Wheels optional |
| Material: | MDF (Medium-density fibreboard), 16 mm |
| Color: | White, textured coating, painted |
| Dimensions: | Width: 38,4 cm
Depth: 47,4 cm
Height: 45,8 cm |
| Weight: | 19,50 kg |
