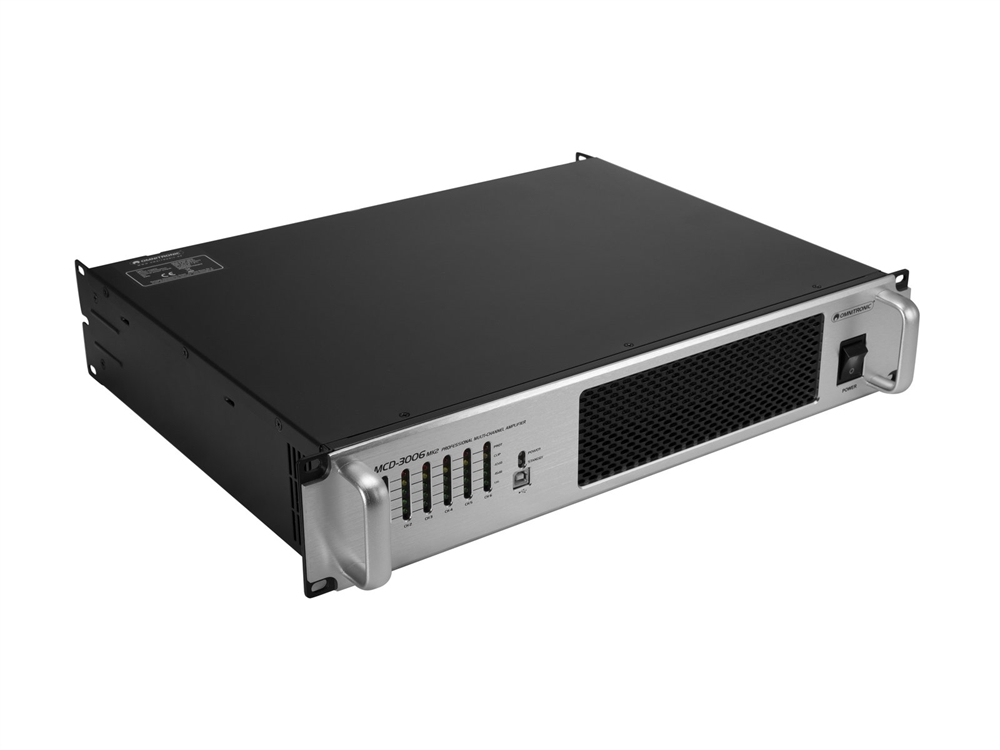

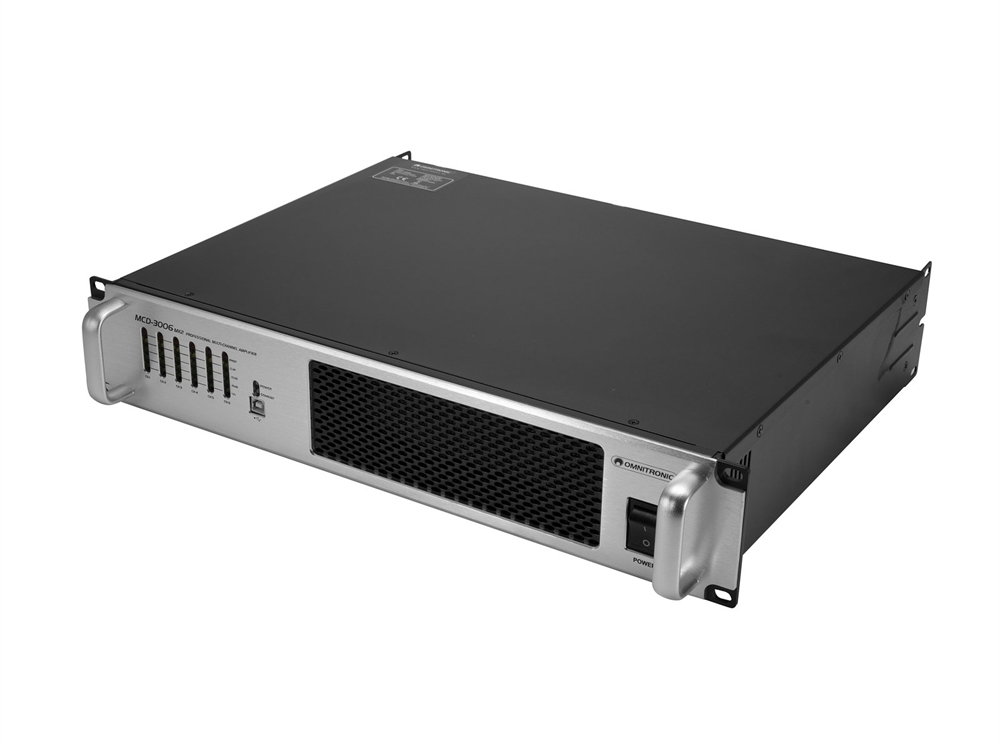

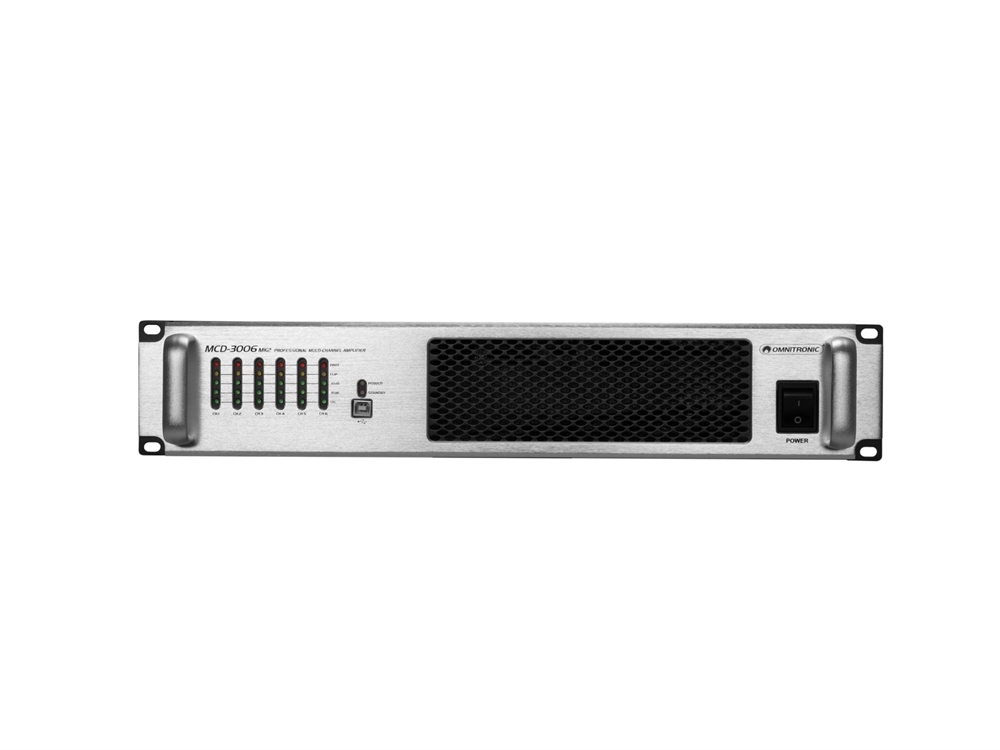

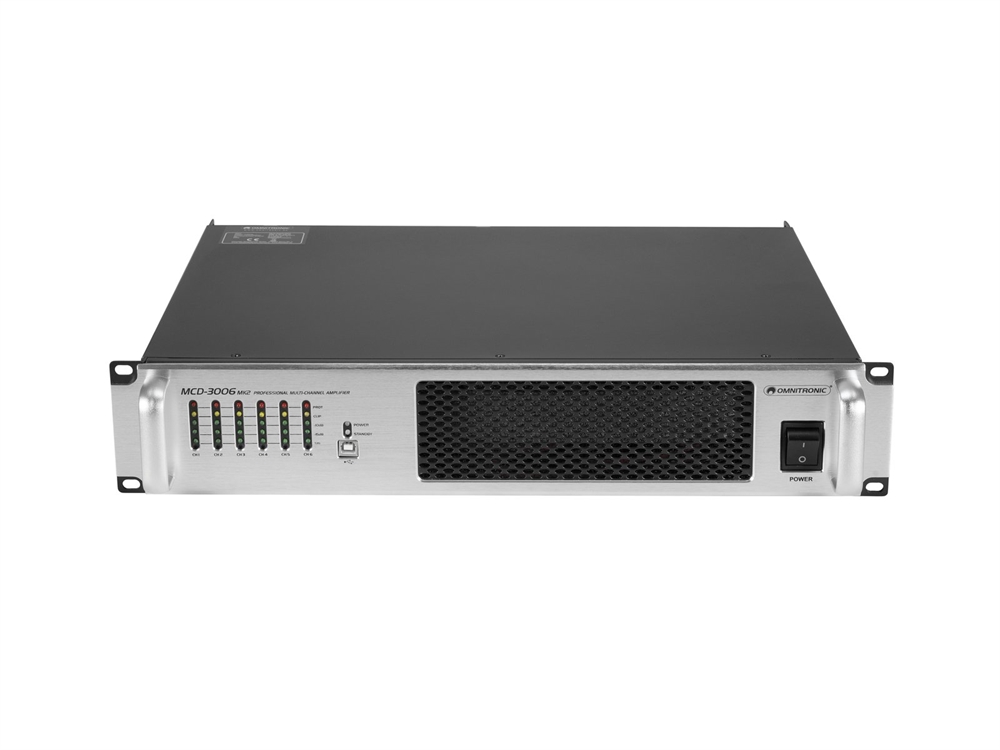

OMNITRONIC MCD-3006 MK2 6-Channel Installation Amplifier

På lager
På lager, 3-5 hverdage
Bedømmelse for OMNITRONIC MCD-3006 MK2 6-Channel Installation Amplifier
Produktet er endnu ikke bedømt

6-channel PA amplifier with SMPS, 4 ohms: 6 x 500 W, 8 ohms: 6 x 250 W

OMNITRONIC MCD-3006 MK2 6-Channel Installation Amplifier

6-channel PA amplifier with SMPS, 4 ohms: 6 x 500 W, 8 ohms: 6 x 250 W

PA amplifier with integrated limiter for multi-zone applications
6 x 500 W/4 ohms

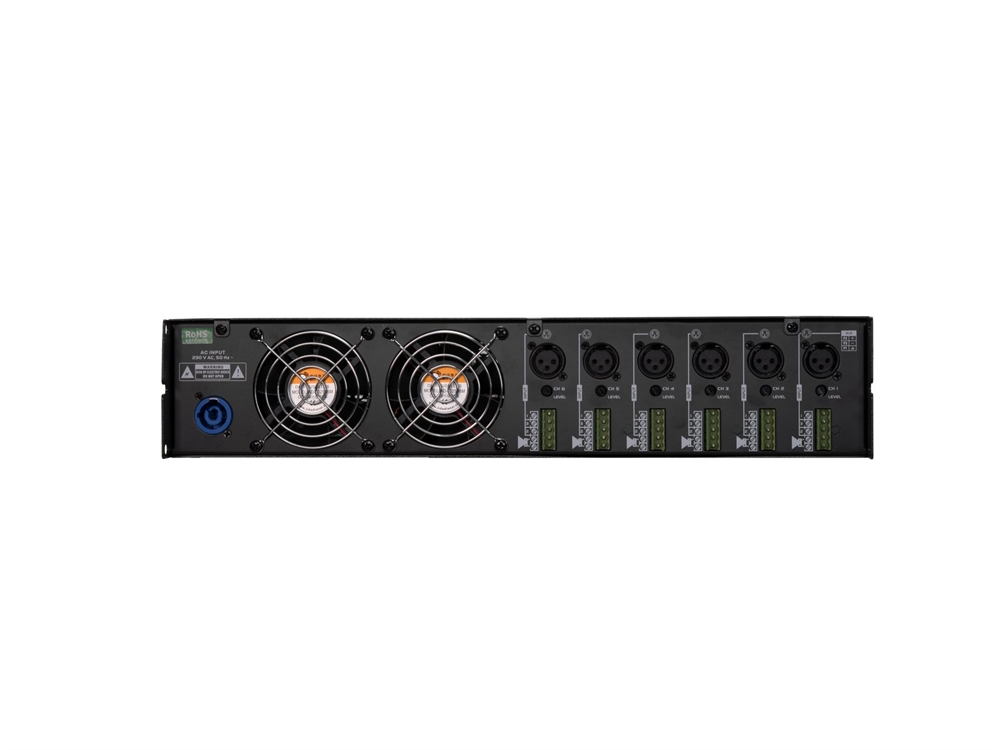

Signal inputs via balanced XLR mounting jacks and terminal blocks
Speaker connection via terminal blocks
Tamper-proof level adjustment on the rear panel
3-fold output meter with clip LED per channel
Speaker switch-on delay
Rugged steel chassis with aluminum front panel
Complete protection set against short-circuit, overheat, overload, and DC voltage overlay at the outputs
Rack installation, 3 U
Air flow from front to rear
The device is cooled by 2x cooling fan
(19") 48.3 cm rack installation 2 U

Power supply:	230 V AC, 50 Hz
Power consumption:	525 W 1/8 power
Output power:	6 x 250 W RMS (8 ohms) 6 x 500 W RMS (4 ohms)
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Frequency range:	22 - 25000 Hz
S/N ratio:	>120 dB
THD:	<0,003 % at 1 kHz
Cooling:	2 x cooling fan , Air flow from front to rear
Impedance:	Input 22 kOhm , bal. Input 12 kOhm , unbal.
Gain:	26 dB
Circuitry:	Class D
Slew rate:	>10 V/µs
Damping factor:	>500
Control elements:	Power switch, level control per channel
Controls:	Softstart; short-circuit; overheat; overload; DC voltage; power on/off transient
Status LED:	Power, level meter, clip, protect
Connections:	Input: line via 6 x 3-pin XLR Input: line via 6 x screw terminal Link: speakers via 6 x screw terminal
Max. level:	Input: +2 V
Housing design:	(19") 48.3 cm rack installation 2 U
Dimensions:	Width: 48,3 cm Depth: 38,8 cm Height: 8,9 cm
Weight:	9,05 kg

Varenr.: E-10452415
