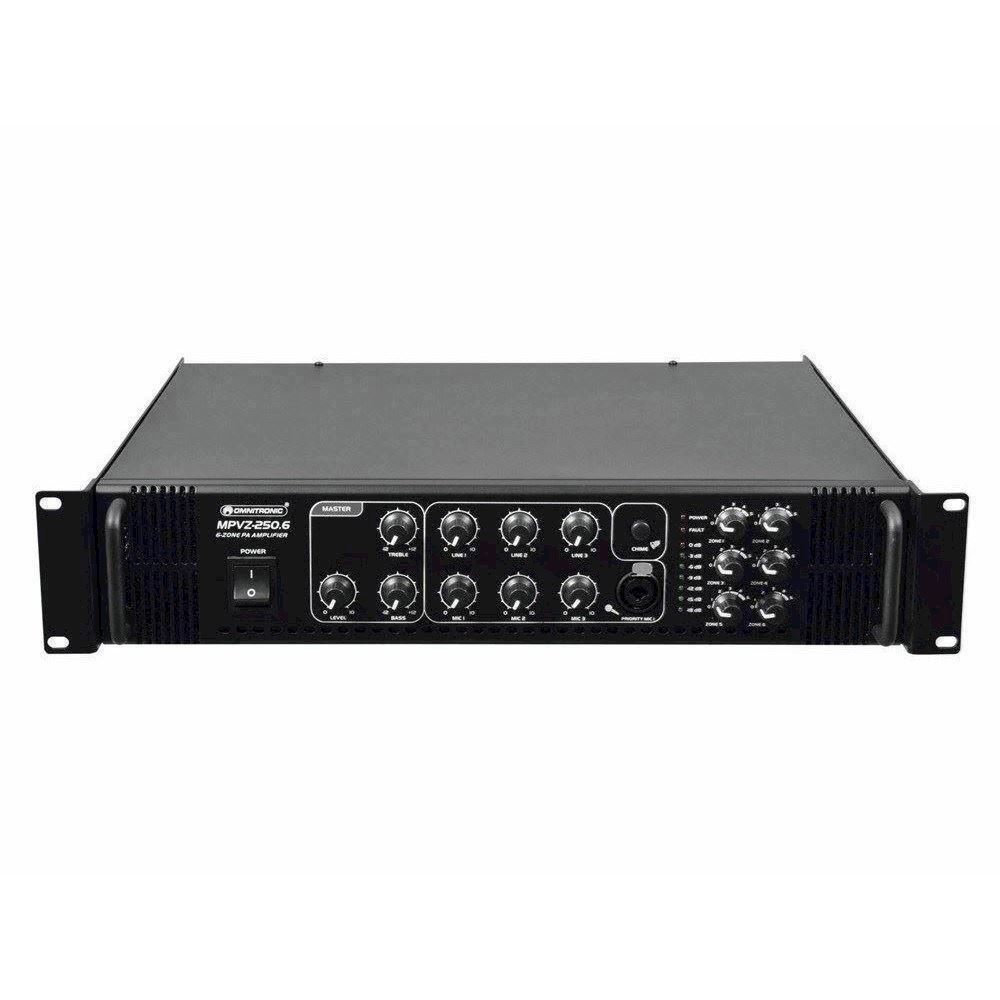

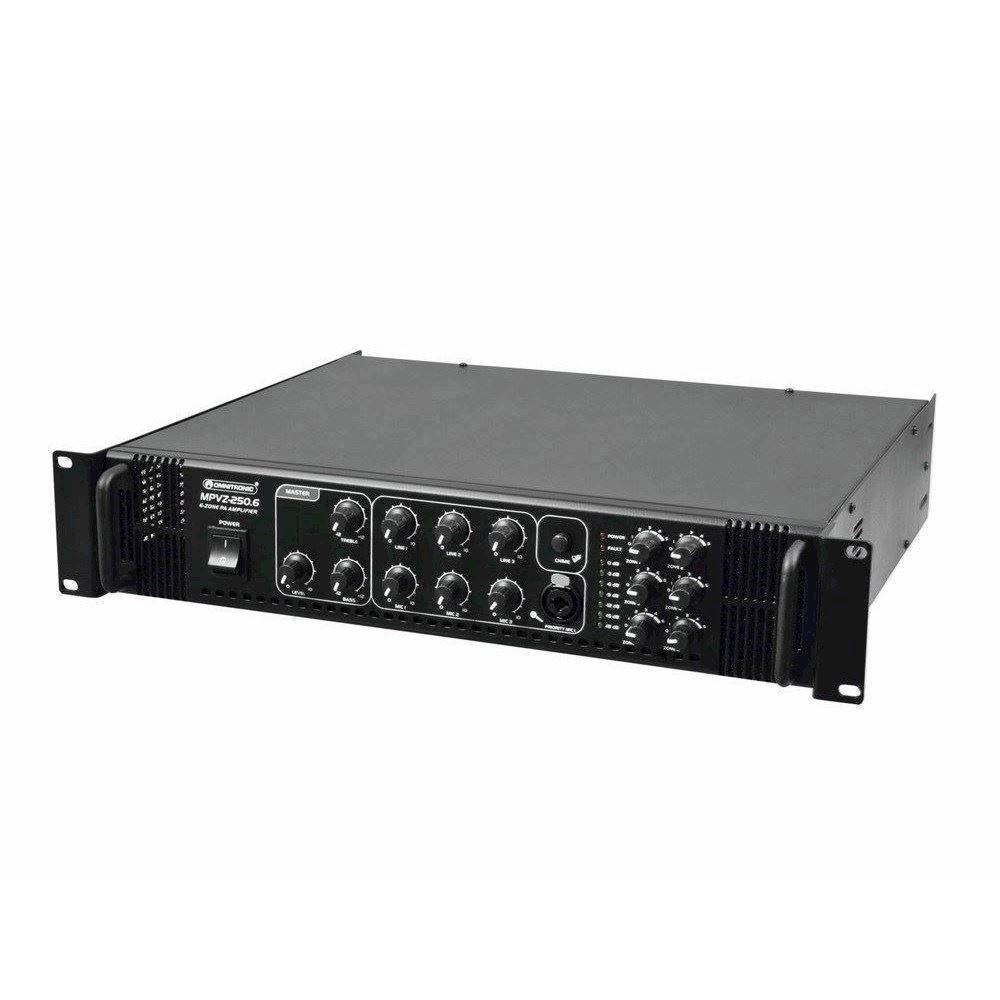

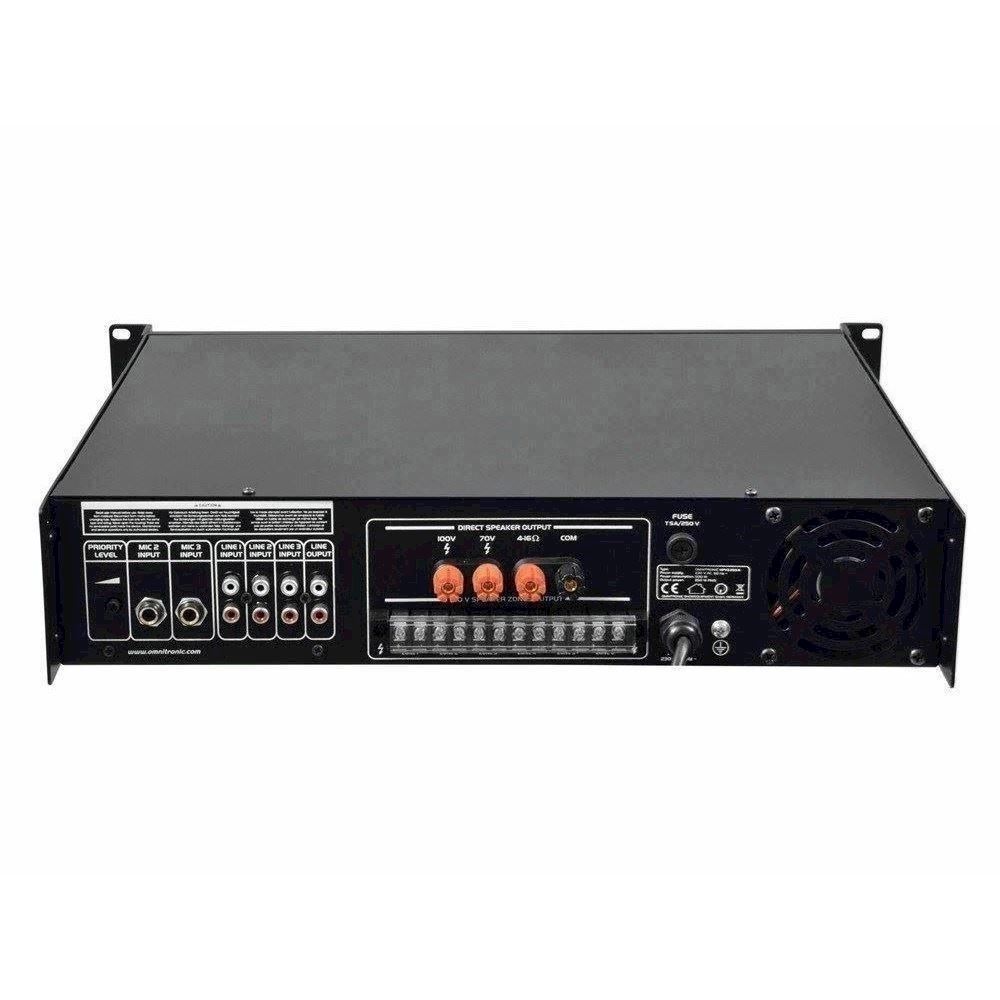

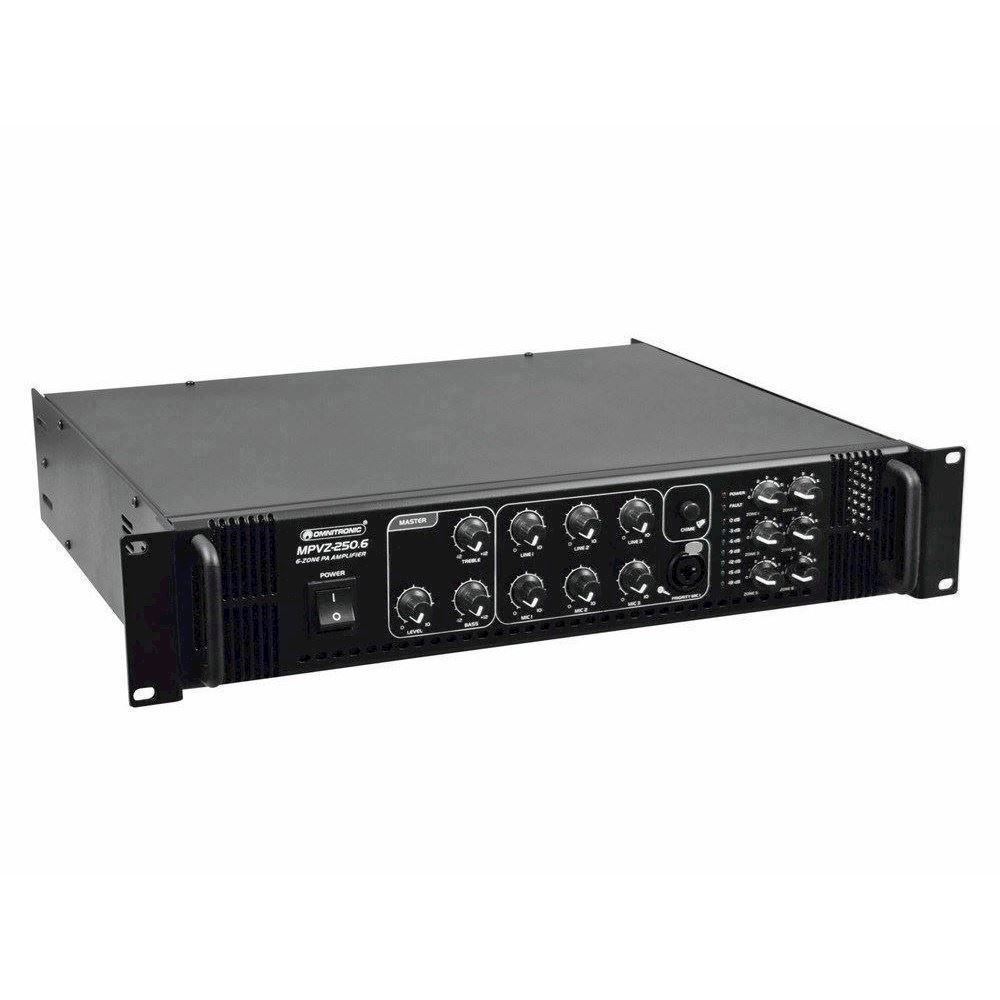

OMNITRONIC MPVZ-250.6 PA mixing amplifier

Ikke på lager
Forventet levering om 11 uger
Bedømmelse for OMNITRONIC MPVZ-250.6 PA mixing amplifier
Produktet er endnu ikke bedømt

6-zone PA mono mixing amplifier

Comfortable control of PA speakers via 6-zone technology
6 PA zone outputs with separate 5-step level controls
Master PA output (70 V and 100 V)
Output for low-impedance speakers (4-16 ohms)
2 rear microphone inputs (6.3 mm jack, unbal.)
1 front microphone input (combination XLR/6.3 mm jack, unbal.) with adjustable priority circuit
All microphone inputs with separate level controls
3 line inputs (stereo RCA) with separate level controls
1 line output (stereo RCA)
Chime, switchable
Treble and bass control for the output signal
7-fold LED level display
Master control for the output signal
Fan-cooled
Protection circuits with LED indication: over current, short circuit, turn-on delay
Rack installation
Master Equalizer: 1 x 2 band tone control Mono

Power supply:	230 V AC, 50 Hz
Output power:	250 W RMS
Output type:	70 V, 100 V or 4-16 ohms
Output current:	3.6 A (70 V), 2.5 A (100 V)
Mic inputs:	5 mV, 600 ohms
Line inputs:	300 mV, 10 kohms
Speaker connectors:	Screw connectors, terminal block
Distortion:	0.5 % (1 kHz)
S/N ratio:	85 dB (line), 75 dB (mic)
Dimensions:	483 x 385 x 92 mm
Weight:	14 kg
Power consumption:	500.00 W
Output power:	250 W RMS
Frequency range:	80 - 16000 Hz
Height:	8,9 cm
Depths:	38,5 cm
Width:	48,3 cm

Varenr.: E-80709786
