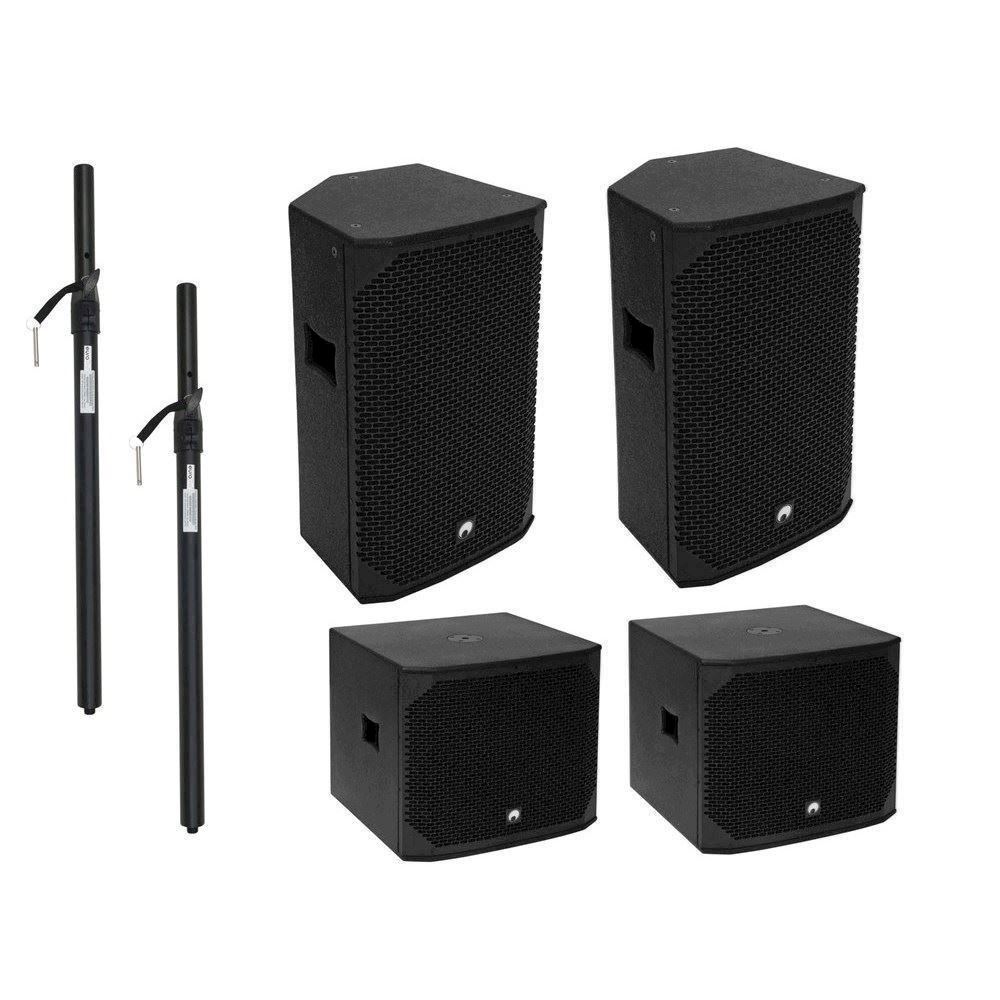

11039046 OMNITRONIC AZX-118A PA Subwoofer active 400W
Active 18" PA bassreflex subwoofer, 400 W
- 46 cm (18") bass speaker with 76 mm voice coil
- Class D amplifier with 400 W
- XLR inputs and parallel outputs L/R
- XLR output L/R with high-pass filter
- Adjustable crossover frequency 80-200 Hz
- Phase reversal switch
- Limiter for overload protection
- Limit, signal and power LED
- M20 metal flange for top speakers
- Carrying handles
- Housing made of 15 mm MDF
- Scratch-resistant lacquer surface
- Impact-resistant steel grille with acoustic foam
11039034 OMNITRONIC AZX-215A 2-way top active 350W
Active speaker with 15" woofer, 1.75" titanium driver, LF 300 W RMS, HF 50 W RMS
- 2-way bassreflex enclosure with 38 cm woofer and 4.5 cm titanium driver
- Class D biamp amplifier (LF 400 W, HF 50 W)
- Balanced signal input XLR/6.3 mm jack, switchable mic/line
- XLR output for linking further active speaker systems
- Master control with 2-band EQ
- HF adjustment -4 dB, -2 dB, 0 dB
- Limiter for overload protection
- Limit, signal and power LED
- Housing made of 15 mm MDF
- Scratch-resistant lacquer surface
- Carrying handles
- Impact-resistant steel grille with acoustic foam
- M10 threaded inserts for suspended installation
- Dual flange with 0° and 5° tilt angle enables flexible positioning
- Applications: standing, as monitor, on a subwoofer or speaker stand, suspended
- Master Equalizer: 1 x 2 band tone control
60004558 OMNITRONIC Distance Tube Subwoofer/Satellite M20
Variable distance tube with M20 thread, height adjustable 75-135 cm
- Connecting tube for satellite systems
- Height adjustable 75-135 cm
- Locking screw and bolt
- M20 thread
- Powder-coated steel version
- Color: black
11039046 OMNITRONIC AZX-118A PA Subwoofer active 400W
Power supply: 230 V AC, 50 Hz
Power consumption: 650 W
Amplifier power: 400 W RMS
Signal input: XLR L/R
Parallel output: XLR L/R
High-pass output: XLR L/R
Sensitivity: 95 dB
Crossover frequency: 80-200 Hz
Acoustic loading: Bassreflex
Amplifier: Class D
Dimensions (W x D x H): 665 x 665 x 590 mm
Size of woofer: (18") ca. 46 cm
Number of bass-woofer: 1 Pc/Pcs
Frequency range: 40 - 250 Hz
Material: MDF (Medium-density fibreboard)
Weight: 33,65 kg
11039034 OMNITRONIC AZX-215A 2-way top active 350W
Power supply: 230 V AC, 50 Hz
Power consumption: 650 W
Amplifier power: 300 W RMS LF, 50 W RMS HF
LF speaker: 38 cm bass/mids (15") with 76 mm voice coil
HF speaker: 4,5 cm compression driver (1.75")
Input mic/line: combination XLR/6.3 mm jack, bal.
Output line: XLR, bal.
Frequency range: 50 - 20000 Hz
Number of bass-woofer: 1 Pc/Pcs
Size of woofer: (15") ca. 38 cm
Material: MDF (Medium-density fibreboard)
Weight: 25,45 kg
Width: 48,5 cm
Depth: 48 cm
Height: 75 cm
60004558 OMNITRONIC Distance Tube Subwoofer/Satellite M20
Maximum load: 30 kg
Adjustable height: 75-135 cm
Tube diameter: 41/35 mm
Weight: 1,6 kg
Max. height: 1,35 m
Min. height: 0,75 m
Maximum carrying capacity: 30 kg
Color: Black
Pick-up: Flange system 35mm
