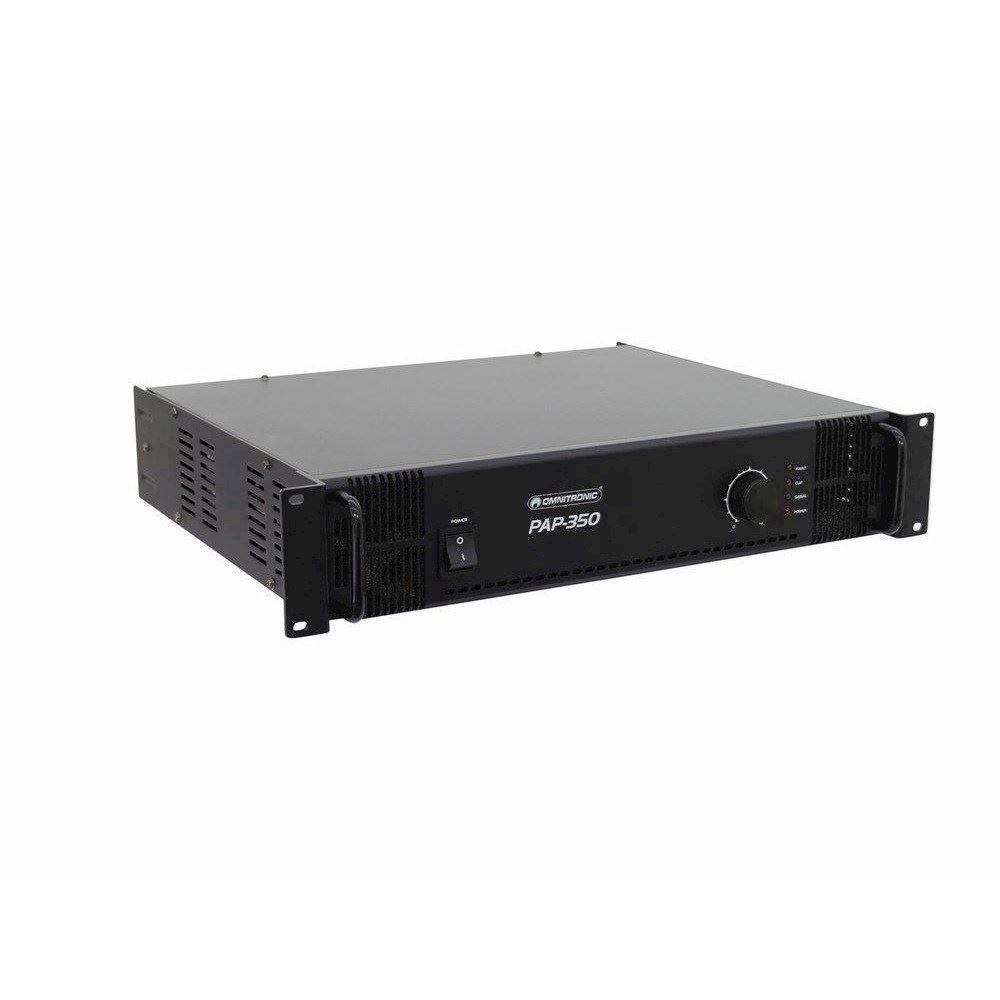

OMNITRONIC PAP-350 PA amplifier

PA power amplifier

1 line input (optionally XLR or 6.3 mm jack)
1 feed-through output (optionally XLR or 6.3 mm jack)
70 V, 100 V or 4-16 ohms operation
Master control
LED indicators for power, signal, clip and fault
Protective circuits: over load, short circuit, turn-on delay, over heating, DC offset protection
Load detection and power control
Rack installation

Power supply:	230 V AC, 50 Hz
Output power:	350 W RMS
Output current:	5 A/ 70 V, 3.5 A/ 100 V
Speaker outputs:	70 V, 100 V or 4-16 ohms
Input connectors:	XLR, 6.3 mm jack mounting socket
Output connectors:	XLR, 6.3 mm jack mounting socket
Line input:	300 mV, 10 kohms
Distortion:	0.5 %/ 1 kHz
S/N ratio (line):	90 dB
Protection:	Overheat, overload, short-circuit, DC, softstart
Indicators:	Power, fault, clip, signal
Dimensions:	483 x 385 x 92 mm
	Rack installation with 2 U
Weight:	16 kg
Output power:	350 W RMS
Frequency range:	80 - 16000 Hz
Height:	8,9 cm
Depths:	38,5 cm
Width:	48,3 cm

Varenr.: E-80709810
