| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | Max. 5 W |
| Protection class: | Class II |
| Power connection: | Mains input via C8 "figure 8" mounting version power supply cord with Euro plug (provided) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >70 dB |
| THD: | <0,025 % at 1 kHz |
| Impedance: | Input Microphone: 47 kOhm
Input line: 47 kOhm
Input phono: 47 kOhm |
| Gain: | Input: variable |
| Control: | Bluetooth |
| Bluetooth: | Version: 4,2 + EDR
Profiles: A2DP, AVRCP |
| Display type: | Monochrome LCD display |
| Control elements: | Audio player, Crossfader, Cue-mix-function, source selector, Crossfade curve switch; Crossfade reverse switch |
| Status LED: | Switchable master level meter, clip, CUE, power |

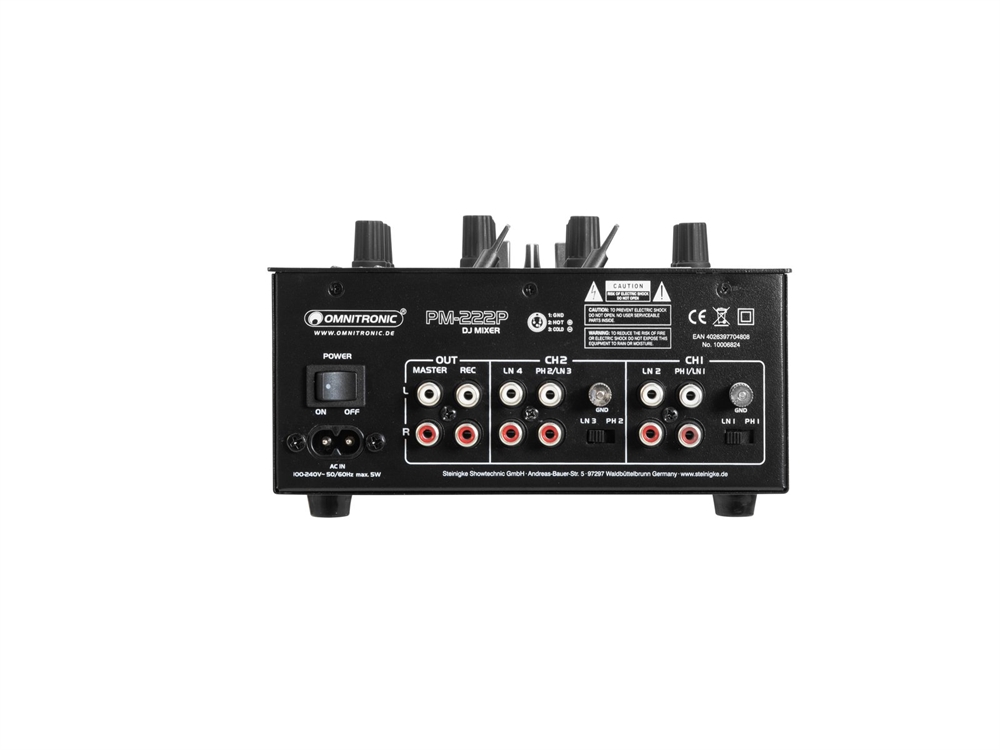

| Connections: | Input: Microphone via 1 x 6.3 mm jack socket (mono) mounting version
Input: line via 4 x stereo RCA
Input: phono via 2 x stereo RCA
Output: master via 1 x stereo RCA
Output: rec. via 1 x stereo RCA
Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version |
| Channels: | Input chanel: 2 x stereo with Line-Line-Phono switch via RCA, channel control via fader, 2-band tone control EQ, gain control,
Microphon chanal: 1 x mono via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial, Cue-mix-function,
Master output: 1 x stereo via RCA, channel control via Rotary dial
Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial |
| Format: | MP3, WAV; WMA |
| Carrier frequency: | 2,4 GHz |
| Max. level: | Output: master +19 dBu |
| USB port: | Typ A |
| Housing design: | Desktop console housing |
| Dimensions: | Width: 19 cm
Depth: 26 cm
Height: 13,7 cm |
| Weight: | 2,10 kg |
| Audio player |
| Available storage media: | USB devices max. 32GB (FAT 32) |
