| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | Max. 10 W |
| Protection class: | Class II |
| Power connection: | Mains input via C8 "figure 8" mounting version power supply cord with Euro plug (provided) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >60 dB |
| Impedance: | Input Microphone: 1 kOhm
Input line: 1 kOhm
Input phono: 1 kOhm |
| Gain: | Input: variable |
| Bluetooth: | Version: 4,2 + EDR
Profiles: A2DP, AVRCP |
| Display type: | Monochrome LCD display |

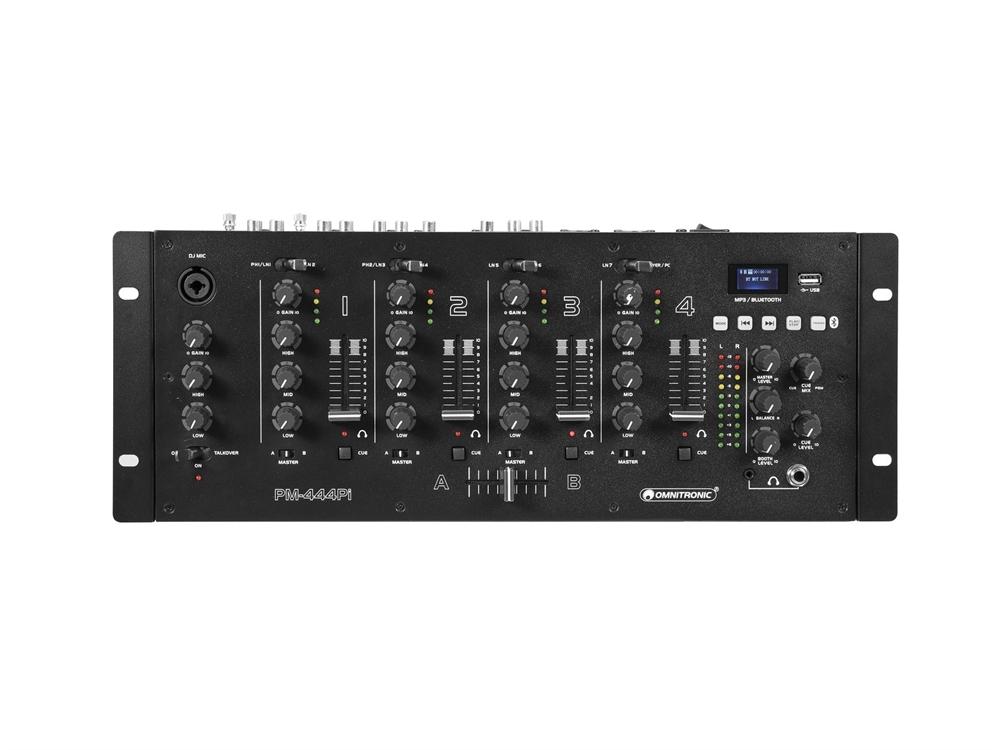

| Control elements: | Crossfader selector switch, Crossfader, source selector, power switch |
| Status LED: | Power, CUE, master level meter, chanal level meter |

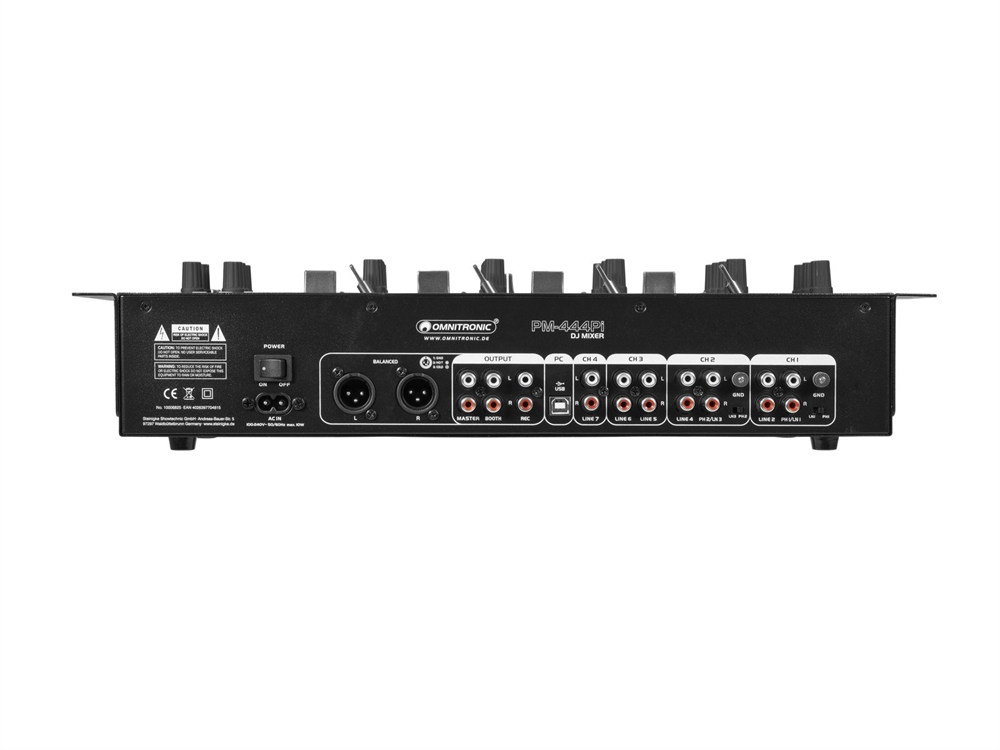

| Connections: | Input: Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 5 x stereo RCA
Input: phono via 2 x stereo RCA
Output: master via 2 x 3-pin XLR
Output: master via 1 x stereo RCA
Output: rec. via 1 x stereo RCA
Output: rec. via 1 x USB B (F) mounting version
Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version |
| Channels: | Input chanel: 2 x stereo with line-phono switch via RCA, channel control via fader, 2-band tone control EQ -30dB to12dB at 80Hz/12kHz, gain control,
Input chanel: 1 x stereo with Line-line switch via RCA, channel control via fader, 2-band tone control EQ -30dB to12dB at 80Hz/12kHz, gain control, CUE switch,
Input chanel: 1 x stereo with Line-USB switch via RCA or USB, channel control via fader, 2-band tone control EQ -30dB to12dB at 80Hz/12kHz, gain control,
Microphon chanal: 1 x mono via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary dial, 2-band tone control EQ -30dB to12dB at 70Hz/13kHz, Cue-mix-function,
Master output: 1 x stereo via XLR or RCA, channel control via Rotary dial
Headphones output: stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial |
| Format: | MP3, WAV; WAV |
| USB port: | USB 2.0, Typ B; Typ A |
| PC connect: | Via USB |
| Housing design: | (19") 48.3 cm rack installation 4 U |
| Dimensions: | Width: 48,3 cm
Depth: 17,8 cm
Height: 8,9 cm |
| Weight: | 2,00 kg |
| Audio player |
| Available storage media: | USB devices max. 32GB (FAT 32) |
