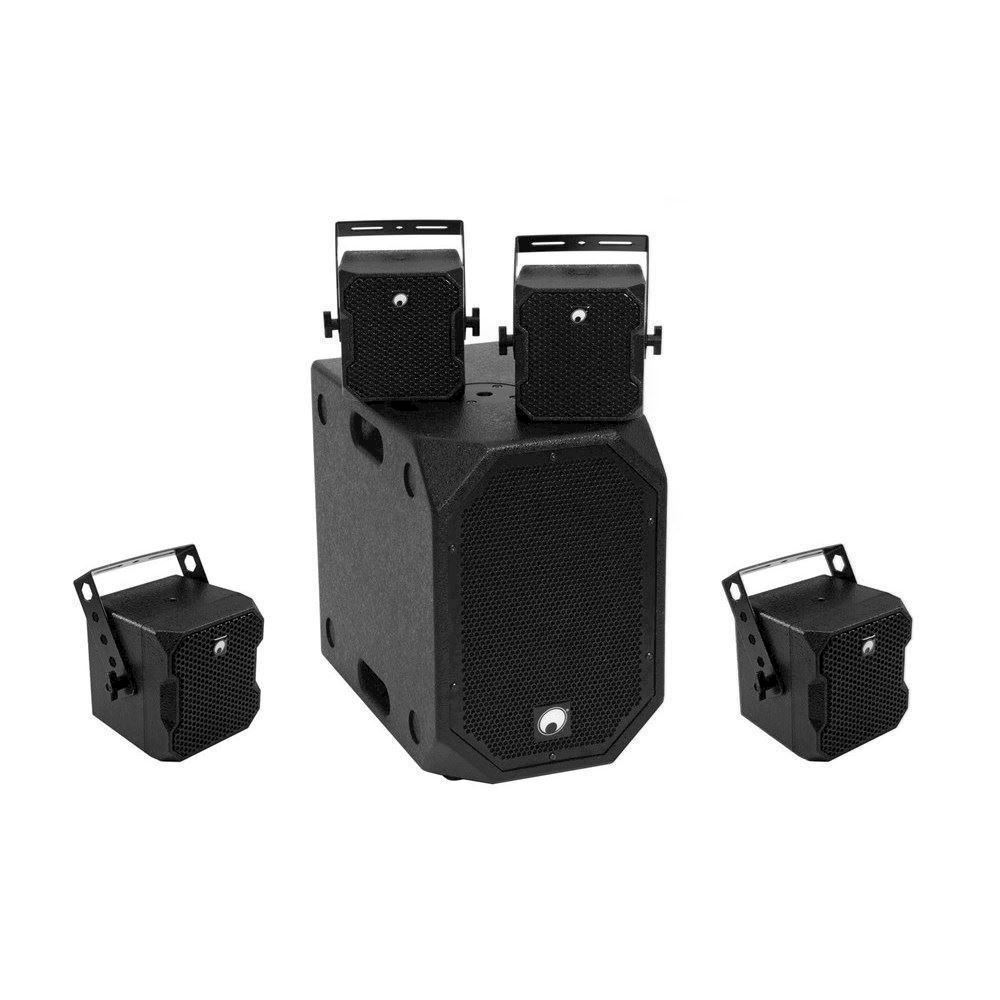

11038870 OMNITRONIC BOB-10A Subwoofer active black
10" subwoofer with DSP and Bluetooth for the BOB series
- 10" bassreflex subwoofer with DSP and 600 watts RMS power
- Flexibly extendable with BOB-4 satellites for 2.1, 4.1 and 8.1 configurations
- DSP-controlled class D amplifier (300 W + 2 x 300 W)
- Integrated Bluetooth audio streaming
- 4 EQ presets with indicators
- Signal limiter and crossover
- Signal inputs via combo jacks (XLR/6.3 mm jack) and RCA
- Parallel XLR outputs for linking further BOB systems or active systems
- Separate volume controls for subwoofer and satellites L/R
- Stereo/mono selection
- Phase reversal switch
- Fault, limit, signal and power indicators
- Built-in protection circuits: soft start, short-circuit, limiter, overcurrent, overheat
- Two M20 metal flanges for mounting satellite speakers
- MDF enclosure with scratch-resistant lacquer surface and steel grille
- Built-in handles and low weight for ease of transport
- Stackable via recesses when set up horizontally
- Delivery includes two speaker cables
- For mobile live and DJ applications and installation in bars, stores, conference rooms and home theaters
11038872 OMNITRONIC BOB-4 Top 16 Ohm black 2x
2 x 4" satellite speakers with bracket for the BOB series
- 16-ohm speaker pair with 4" full-range speaker
- For use with BOB-10A subwoofers for 2.1, 4.1 and 8.1 configurations
- Incl. 2 x U-bracket for wall, ceiling and stand installation
- Optional stand adaptor required for stand mounting
- Extension U-bracket and cable available for connecting 2 satellite speakers
- Rated power: 75 W RMS/150 W program
- Connectors: 1 x speaker and screw plug terminal
- ABS plastic cabinet with M8 and M10 threaded inserts
- Scratch-resistant lacquer surface and steel grille
- Transport bag for 4 satellites, brackets and cables optional
11038870 OMNITRONIC BOB-10A Subwoofer active black
Power supply: 115/230 V AC, 50/60 Hz
Power consumption: 1060 W
Amplifier power: LF 300 W RMS + HF 2 x 300 W RMS
LF speaker: 25 cm (10") with 50 mm voice coil
Frequency range: 45-250 Hz
Sensitivity: 100 dB
Maximum SPL: 125 dB
Signal input: combination XLR/6.3 mm jack L/R and RCA L/R
Parallel output: XLR L/R
Satellite: Speaker L/R
Dimensions (L x W x H): 470 x 300 x 430 mm
Weight: 16.5 kg
Weight: 17,00 kg
Power consumption: 1060 W
Size of woofer: (10") ca. 25 cm
Frequency range: 45 - 250 Hz
Material: MDF (Medium-density fibreboard) Bass
Number of bass-woofer: 1 Pc/Pcs
Length: 47 cm Bass
Width: 30 cm Bass
Height: 43 cm Bass
11038872 OMNITRONIC BOB-4 Top 16 Ohm black 2x
Components: 10 cm speaker (4") with 25 mm voice coil
Frequency range: 150-16000 Hz
Sensitivity: 90 dB
Maximum SPL: 109 dB
Impedance: 16 ohms
Connection: 1 x speaker and screw plug terminal
Dimensions (L x W x H): 160 x 150 x 158 mm
Weight: 1.7 kg
Weight: 4,00 kg
Size of woofer: (4") ca. 10 cm
Number of bass-woofer: 1 Pc/Pcs
Rated power: 75 W RMS
Program power: 150 W
Frequency range: 150 - 16000 Hz
Height: 15,8 cm Top
Depth: 16 cm Top
Width: 15 cm Top
Loudspeaker control (Impedanz): 16 Ohm
