| Weight: | 8,55 kg |

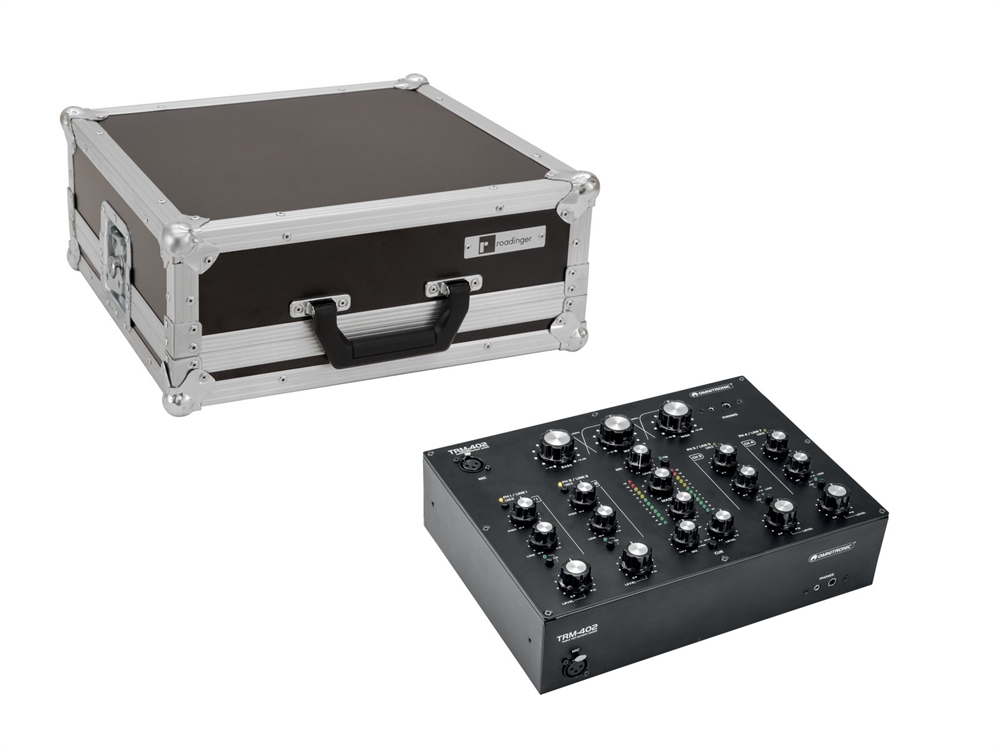

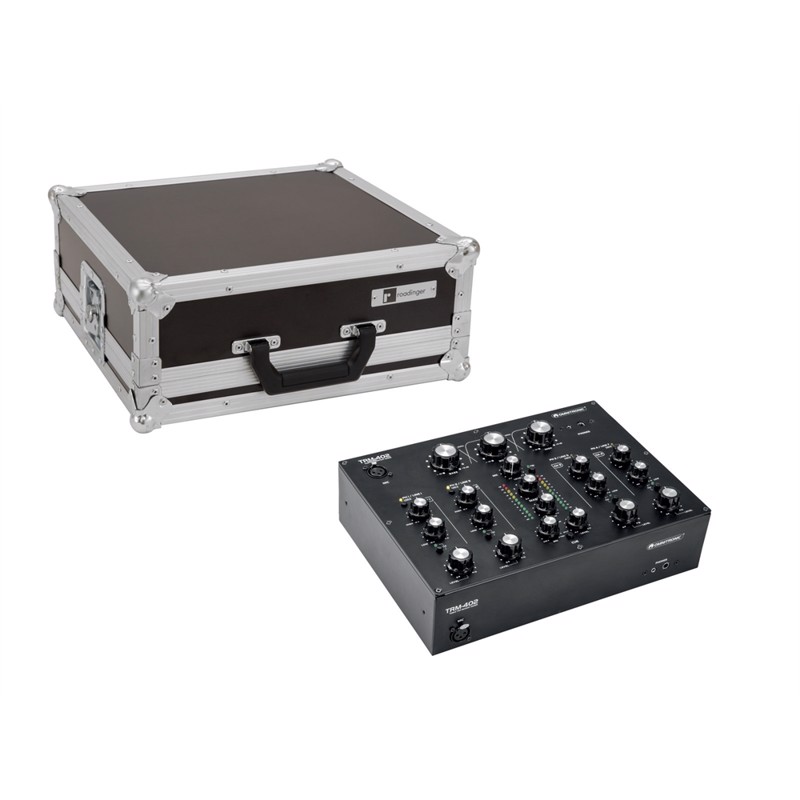

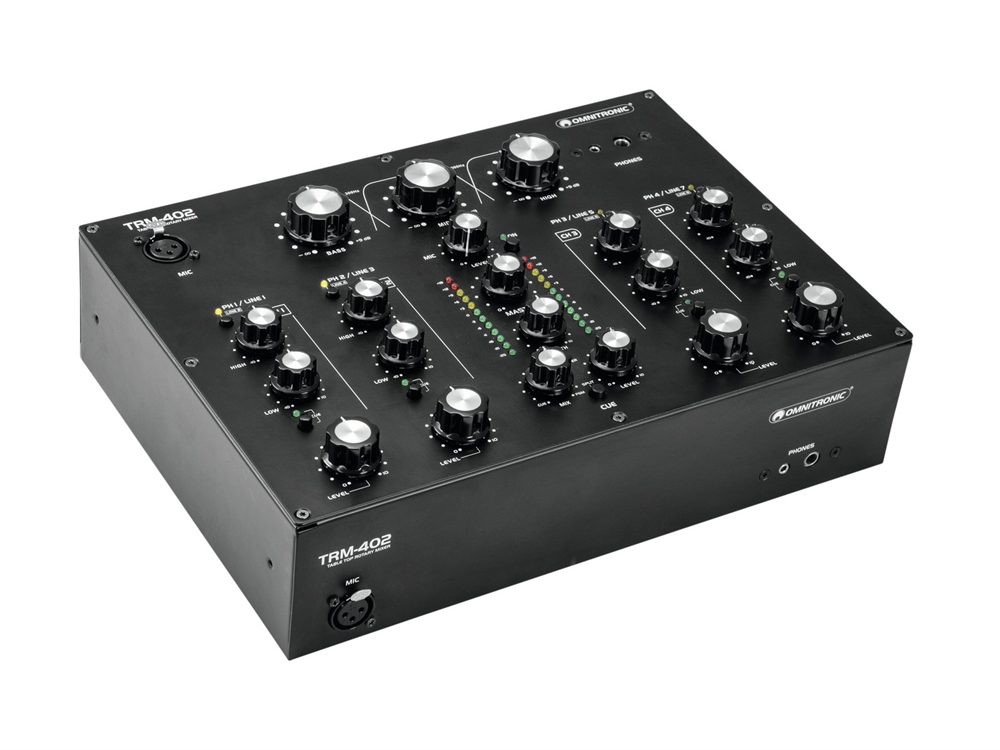

| OMNITRONIC TRM-402 4-Channel Rotary Mixer |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 7,2 W |
| Protection class: | Class I |
| Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Frequency range: | Microphone 20 - 20000 Hz
Line 20 - 20000 Hz
Phono 40 - 18000 Hz |
| S/N ratio: | >77 dB phono
>80 dB Microphone
>85 dB line |
| THD: | Line <0,03 % at 1 kHz
Phono <0,1 % at 1 kHz |
| Gain: | Microphone 44 dB
Line 20 dB
Phono 60 dB to +75 dB |
| Isolators: | Master Gain:- ? bis +9
Low/mid 300 Hz, 18db/oct , Butterworth
Mid/high 4000 Hz, 18db/oct , Butterworth |
| Control elements: | Source selector, power switch |
| Status LED: | Power, master level meter, chanal source, CUE, Microphone |
| Connections: | Input: 4 x line via stereo RCA
Input: 4 x line/phono via stereo RCA
Input: 2 x Microphone via 3-pin XLR
Output: 2 x headphones via 6.3 mm jack socket (stereo) mounting version
Output: 2 x headphones via 3.5 mm jack (stereo) mounting version
Output: 1 x rec. via stereo RCA
Output: 2 x booth via 3-pin XLR
Output: 1 x booth via stereo RCA
Output: 2 x master via 3-pin XLR
Output: 1 x master via stereo RCA |
| Chanals: | Input chanel: 4 x stereo with Line-Line/Phono switch via RCA, channel control via Rotary, 2-band tone control EQ, CUE switch, Phono gain rotery,
Microphon chanal: 1 x mono via XLR, channel control via Rotary dial, Cue mix split function,
Booth output: 1 x stereo via XLR or RCA, channel control via Rotary dial
Master output: 1 x stereo via XLR or RCA, channel control via Rotary dial
Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial |
| Max. level: | Output: +22 dBu |
| Housing design: | Desktop console housing |
| Dimensions: | Width: 33 cm
Depth: 24,7 cm
Height: 10,7 cm |
| Weight: | 4,05 kg |
| ROADINGER Flightcase TRM-402 |
| Maximum load: | 25 kg |
| Color: | Dark brown, laminated |
| Material thickness: | 6,5 mm |
| Dimensions: | Width: 40 cm
Depth: 37 cm
Height: 17,5 cm |
| Weight: | 3,85 kg |
