OMNITRONIC Set TRM-422 + Case

På lager
På lager, 3-5 hverdage
Bedømmelse for OMNITRONIC Set TRM-422 + Case
Produktet er endnu ikke bedømt

8.229,00DKK ved 1 stk.

Vis uden moms

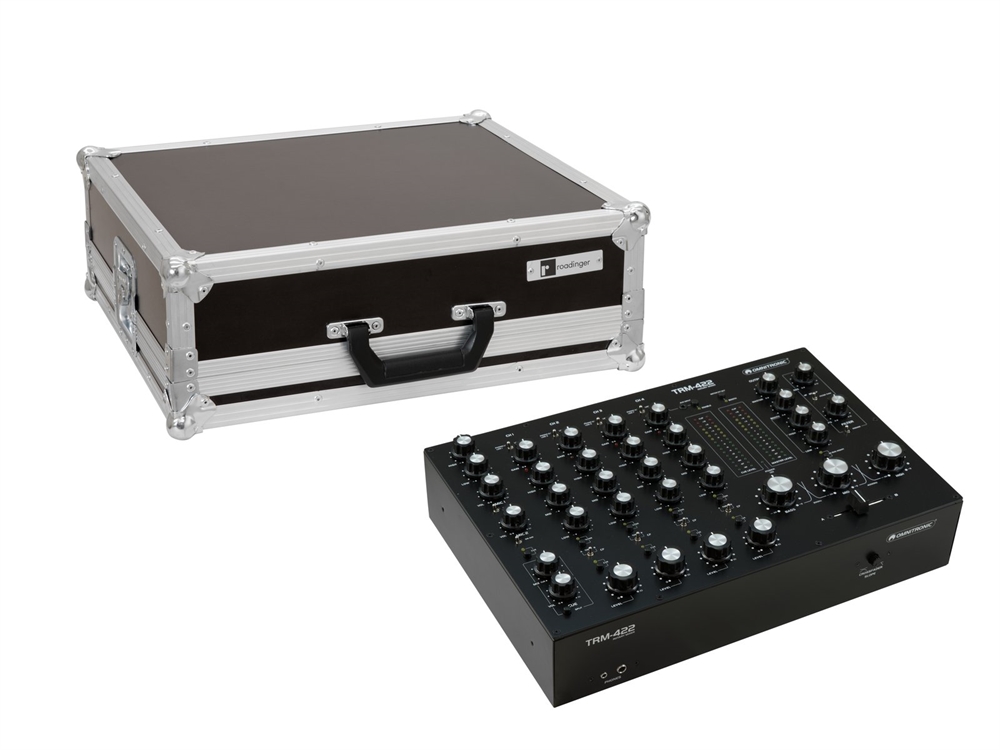

OMNITRONIC Set TRM-422 + Case

1 x OMNITRONIC TRM-422 4-Channel Rotary Mixer

1 x ROADINGER Flightcase TRM-422

Dette sæt bestående af:

OMNITRONIC TRM-422 4-Channel Rotary Mixer

4-channel rotary mixer with 3-band frequency isolator and filter section for DJs

3-band master frequency isolator with vintage ALPS potentiometers (Blue Velvet RK27)
Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
Filter section with HPF, BPF, LPF, resonance and sweep control for creative sound shaping
4 stereo input channels with gain control, clip LED, 3-way equalizer and phono/line switching
2 microphone input channels with gain control, 2-way equalizer on air switch
High-grade components ensure long life and excellent sound quality
16-digit stereo LED level meter, switchable between master and booth outputs
Booth output with separate 2-way equalizer and level control
PFL section with 16-digit stereo LED level meter, level control, PFL/master mix control and cue mix/split option
Fully assignable VCA crossfader with adjustable curve
2 effects send/return paths
4 direct outputs for Timecode applications
Inputs: 8 x line and 4 x phono (RCA L/R), 1 x front aux (mini jack)
Outputs: master and booth (XLR/RCA L/R), record (RCA L/R), master insert send/return (RCA L/R), FX in/out (stereo jack)
483 mm rack installation possible with supplied mounting brackets
Matching woodkits available at www.omniwoodkit.com
Desktop console housing

ROADINGER Flightcase TRM-422

PRO flightcase for 1 x TRM-422 Rotary Mixer

High-quality workmanship with birch multiplex 6,5 mm, dark brown, laminated
Interior with foam padding
cover with foam padding
Removable cover
Aluminum profile frames 22mm with rounded edges
1 rugged carrying handle
2 high-quality spring locks
With 4 rubber feet
Made in Europe

Weight:	10,39 kg
OMNITRONIC TRM-422 4-Channel Rotary Mixer
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	24 W
Protection class:	Class I
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:	Microphone 20 - 20000 Hz Line 20 - 20000 Hz Phono 40 - 18000 Hz
S/N ratio:	>97,2 dB line >91,7 dB Microphone
THD:	Line <0,04 % at 1 kHz Phono <0,13 % at 1 kHz Microphone <0,008 % at 1 kHz
Gain:	Microphone 44 dB Line -16,5 dB to +8,5 dB Phono -48,5 dB to +23,5 dB
Isolators:	Master Gain:- ? bis +9 Low/mid 300 Hz, 18db/oct , Butterworth Mid/high 4000 Hz, 18db/oct , Butterworth
Crosstalk:	>-68 dB
Control elements:	Power switch, source selector, Crossfader, Crossfader selector switch, Crossfade curve switch; Cue mix split function, EQ controls
Status LED:	Power, master level meter, clip, CUE
Connections:	Input: line via 4 x stereo RCA Input: line/phono via 4 x stereo RCA Input: Microphone via 2 x 3-pin XLR Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version Output: headphones via 1 x 3.5 mm jack (stereo) mounting version Output: rec. via 1 x stereo RCA Output: booth via 2 x 3-pin XLR Output: booth via 1 x stereo RCA Output: master via 2 x 3-pin XLR Output: master via 1 x stereo RCA Output: AUX sends via 1 x 6.3 mm jack socket (stereo) mounting version Output: AUX returns via 1 x 6.3 mm jack socket (stereo) mounting version Output: Timecode via 4 x stereo RCA
Channels:	Input chanel: 4 x stereo with Line-Line/Phono switch via RCA, channel control via Rotary, 3-band tone control EQ, source selector, gain control, CUE switch, FX routing switch, Crossfader selector switch, Microphon chanal: 2 x mono via XLR, channel control via Rotary dial, ON AIR switch, Master output: 2 x stereo via XLR, channel control via Rotary Booth output: 2 x stereo via XLR, channel control via Rotary Rec. output: 1 x stereo via RCA Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial, Cue mix split function,
Max. level:	Output: +18 dBu
Material:	Metal
Housing design:	Desktop console housing
Dimensions:	Width: 41 cm Depth: 28,5 cm Height: 10,5 cm
Weight:	5,74 kg
ROADINGER Flightcase TRM-422
Maximum load:	25 kg
Removable covers:	1 pc/pcs
Aluminum profile frames:	22 mm
Carrying handle:	1 pc/pcs
Lock:	Spring lock: 2 pc/pcs
Transport aid:	4 x rubber feet
Material:	Birch multiplex, 6,5 mm
Color:	Dark brown, laminated
Dimensions:	Width: 48 cm Depth: 43 cm Height: 17,5 cm
Weight:	4,65 kg

Varenr.: E-20000897
