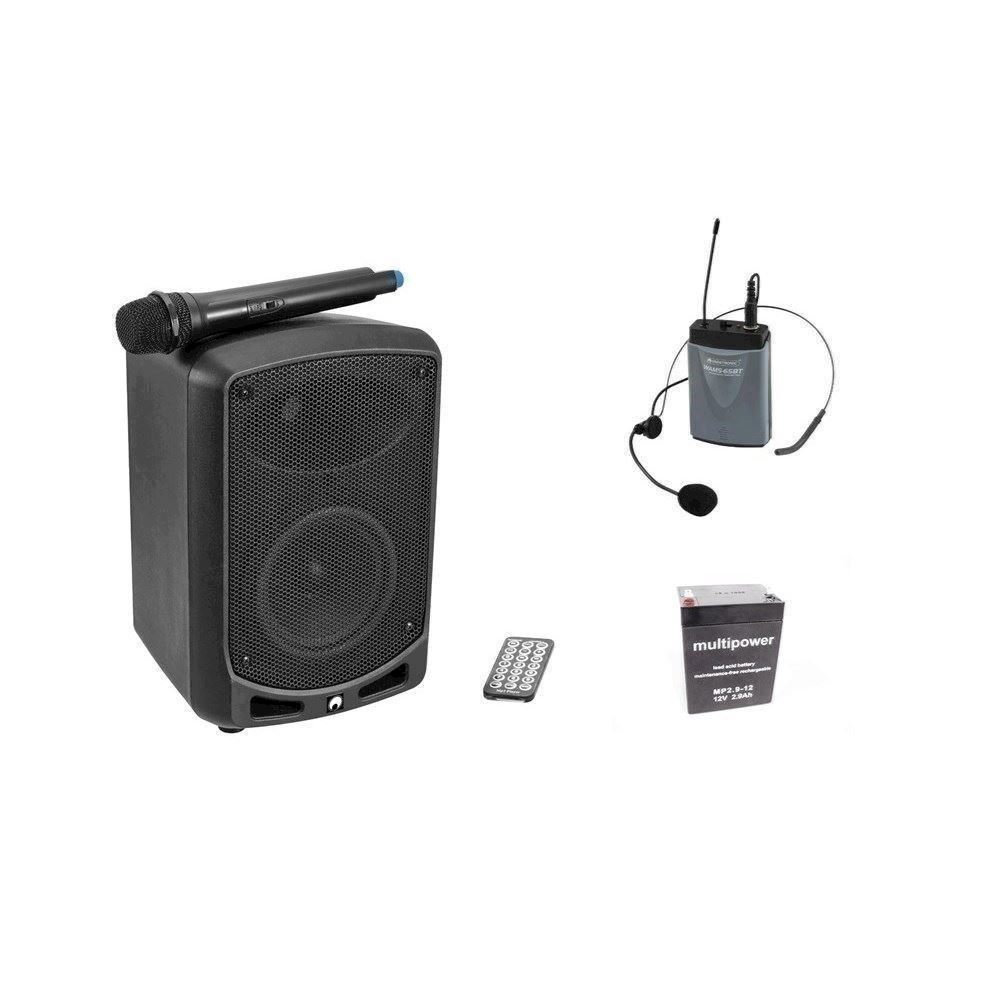

13107003 OMNITRONIC WAMS-65BT Wireless PA System
Portable 6.5" PA with UHF receiver unit, audio player, Bluetooth and 40 W RMS
- Compact, all-in-one PA system for mobile use
- Ideal for mains independent and wireless applications, e.g. at sales events, lectures and gyms
- 4-channel power mixer with 40 watts power
- 2-way bass-reflex system with 16 cm woofer (6.5")
- Power-efficient and battery-saving class D amplifier
- MP3 player with Bluetooth receiver and IR remote control
- SD card slot and USB input
- Stream music wirelessly from your mobile devices (e.g. smartphone, tablet) via Bluetooth
- UHF receiver unit and matching wireless microphone
- Mains operation or battery operation for up to 4 hours of music playing
- Integrated automatic charging of the battery
- Rechargeable battery optionally available (E0055612)
- 1 microphone input (XLR) with adjustable reverb effect
- 1 line input (RCA)
- Tone control and master control
- Link output for the combination of several amplifier systems
- Light-weight black plastic enclosure with metal grille and carrying handle
- Operation of the hand-held microphone via 2 x AA batteries (not included)
- Flange for speaker stand installation
- License-free and approved in the EU
- On/off/mute switch: On/off/mute switch Microphone
- Control: IR remote control Provided; Bluetooth
13107005 OMNITRONIC WAMS-65BT Bodypack Transmitter incl. Headset
Pocket transmitter with headset microphone for WAMS-65BT
- Pocket transmitter for the portable PA system WAMS-65BT
- Operation with 865 MHz
- Incl. headset microphone
- Transmitting power 10 mW
- Mute switch
- Power LED
- Operation via 2 x 1.5 V batteries (type AA), not included
- License-free and approved in the EU
13107003 OMNITRONIC WAMS-65BT Wireless PA System
Power supply: 100-240 V AC, 50/60 Hz
or 12 V DC via rechargeable battery
Rec. battery (accessory): 12 V DC, 2900 mAh
Battery operation: 4 hours
Recharging time: 4-6 hours
Amplifier power: 40 W RMS
Speakers: 16 cm subwoofer (6.5"), 2.5 cm tweeter (1")
Inputs: mic (XLR), line (stereo RCA)
Output: line (6.3 mm jack)
T.H.D.: <0.5 %
Audio player: Bluetooth, USB devices and SD(HC) cards
Dimensions (L x W x H): 218 x 235 x 348 mm
Wireless microphone:
Carrier frequency: 865 MHz
Frequency stability: ±0.005 %
RF power output: 10 mW
Polar pattern: omnidirectional
Range: approx. 30 m
Battery: 2 x 1.5 V AA
Battery life: 13 hours
Dimensions (D x L): 40 x 260 mm
Weight: 4 kg
Power consumption: 60 W
Size of woofer: (6,5") ca. 17 cm
Frequency range: 62 - 18000 Hz
Height: 34,8 cm
Depth: 21,8 cm
Width: 23,5 cm
13107005 OMNITRONIC WAMS-65BT Bodypack Transmitter incl. Headset
Carrier frequency: 865 MHz
Coverage: 50 m (with line-of-sight)
RF power output: 10 mW
Modulation method: F3F
S/N ratio: >105 dB
Selectivity: >80 dB
T.H.D.: <0.5 % at 1 kHz
Connection: 3.5 mm jack screw connection
Battery: 2 x 1.5 V, type AA
Battery life: approx. 10 hours
Dimensions: 100 x 64 x 36 mm
Frequency range: 40 - 18000 Hz
Weight: 0,10 kg
