OMNITRONIC TM-105 Transmitter set XLR WAMS-05

På lager
På lager, 3-5 hverdage
Bedømmelse for OMNITRONIC TM-105 Transmitter set XLR WAMS-05
Produktet er endnu ikke bedømt

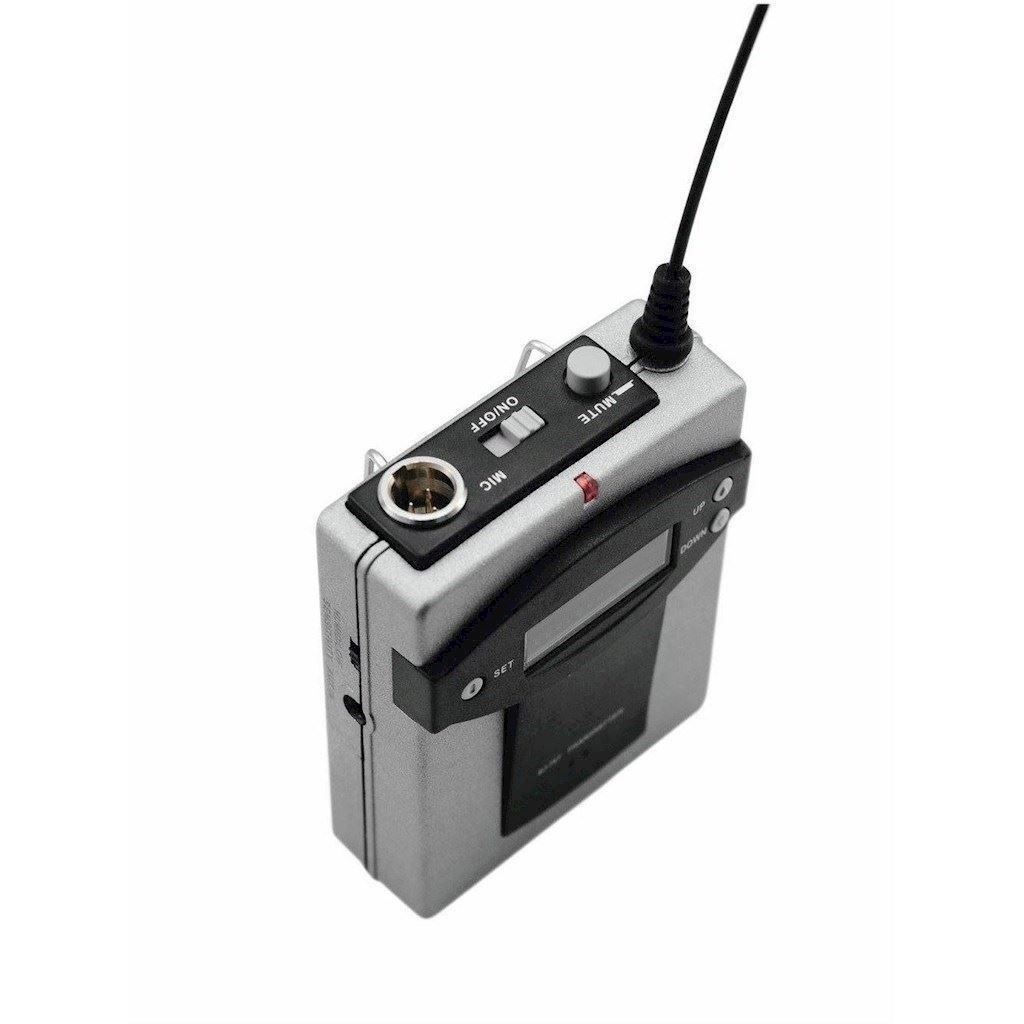

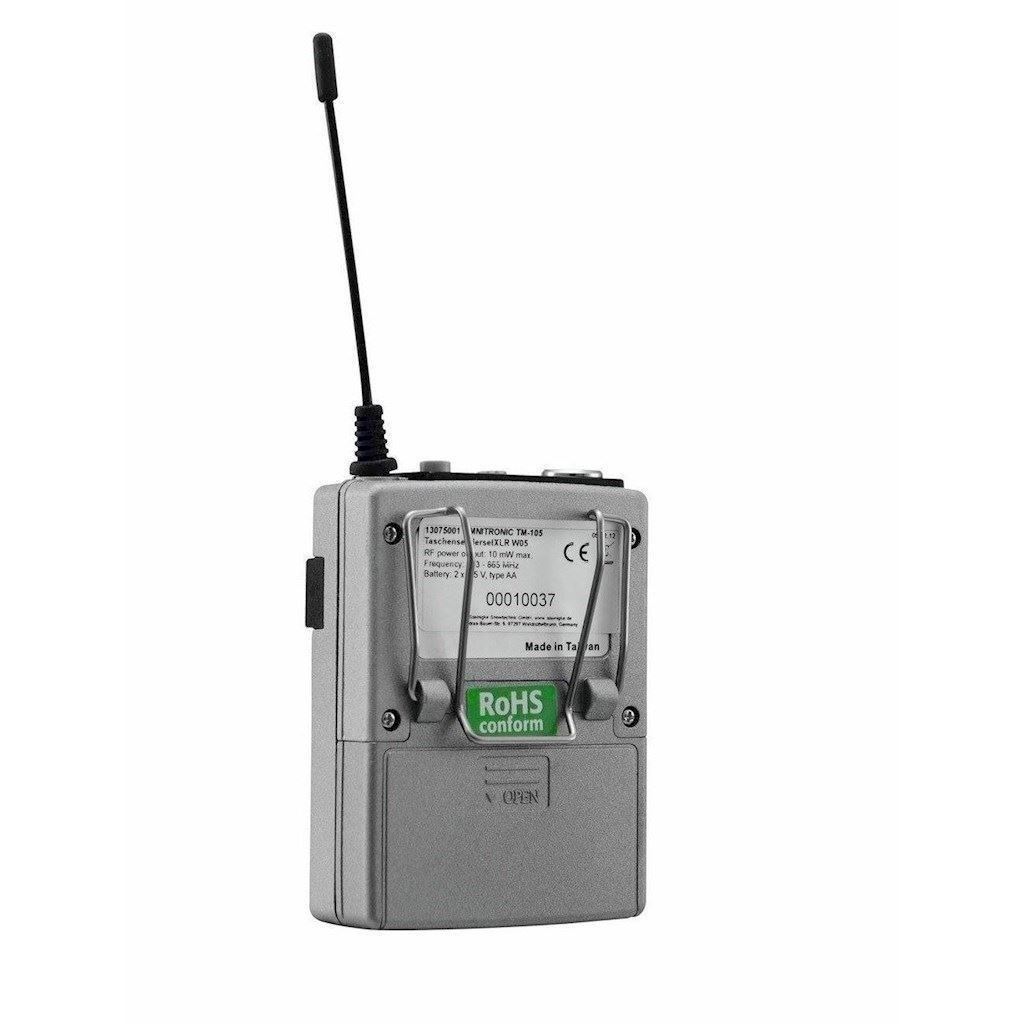

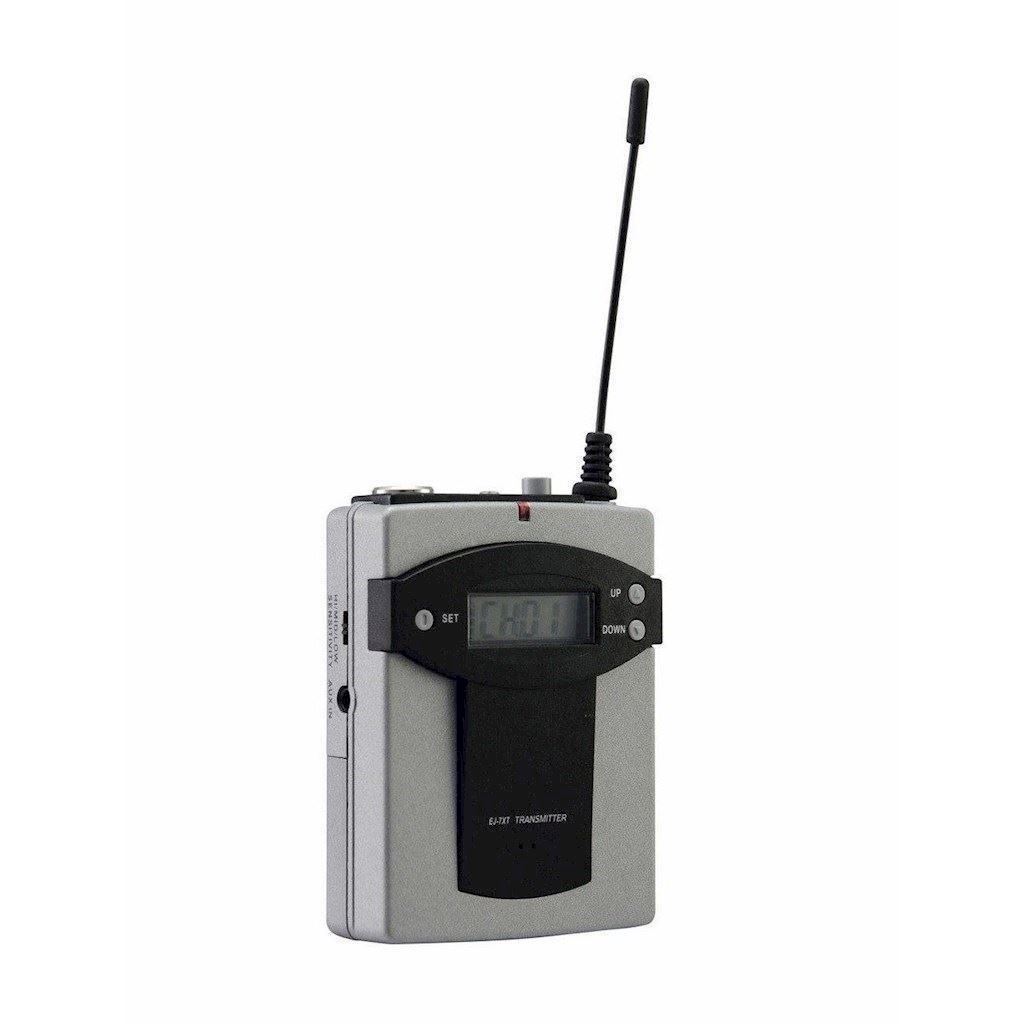

Multifrequency transmitter for W.A.M.S.-05

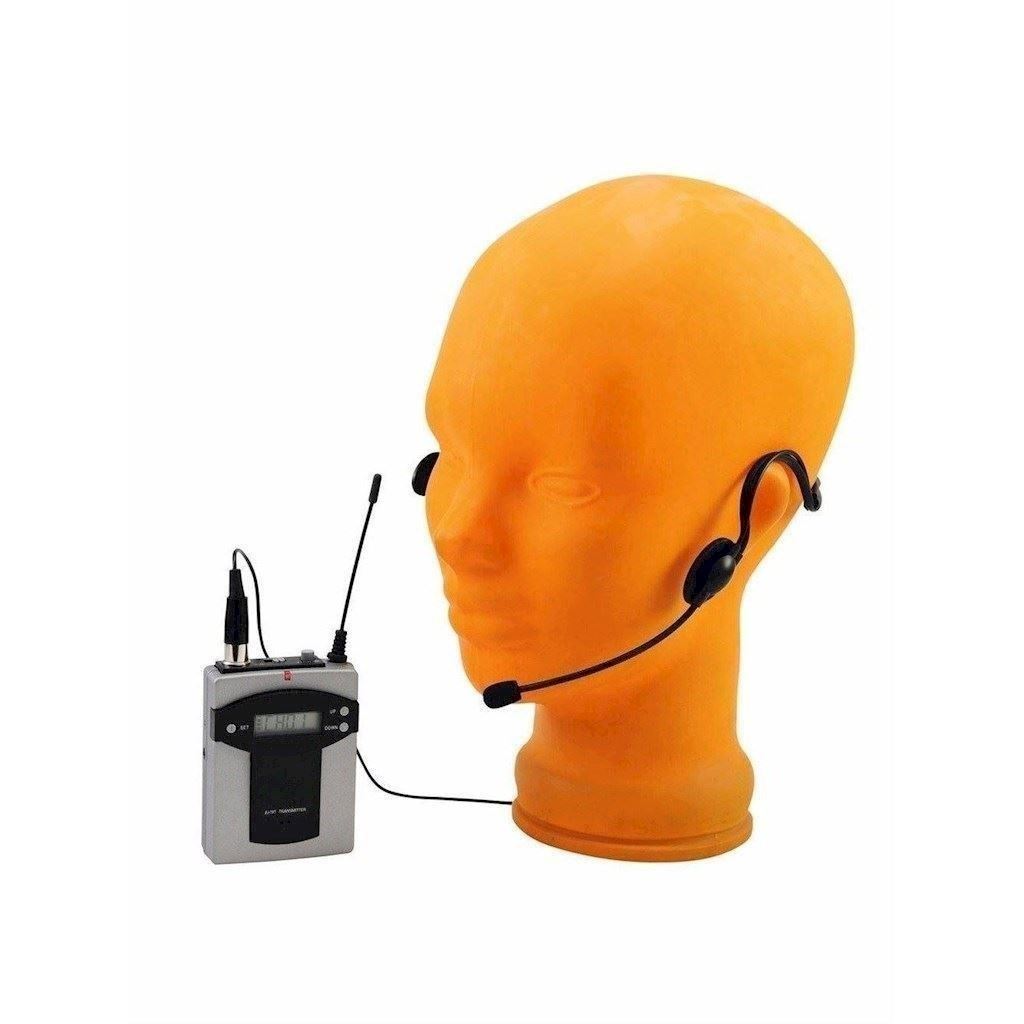

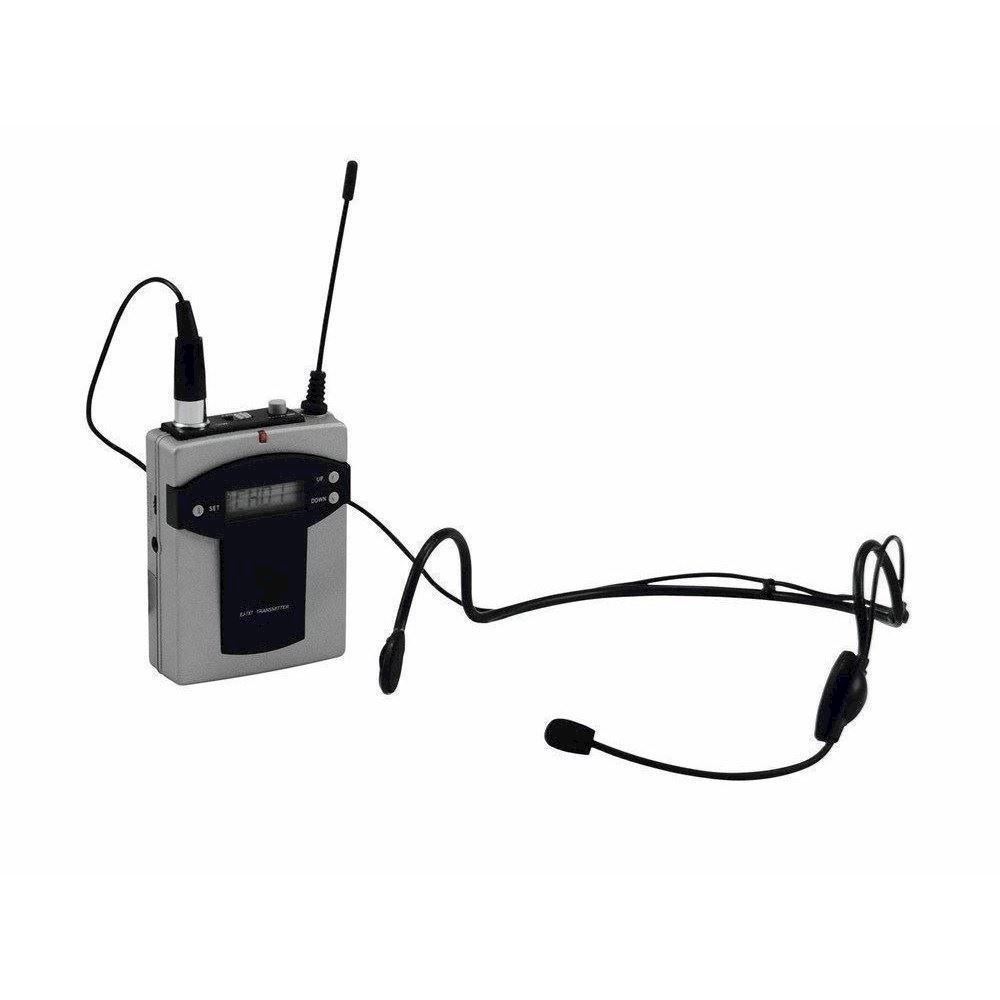

Set includes pocket transmitter and headset microphone
Transmitter as UHF PLL system, suitable for WAMS-05 system
Suitable for optional lavalier microphone LS-105
Operation in the low-interference UHF-band (863.1-864.9 MHz) with 16 frequencies selectable
LCD for channel, frequency and battery capacity
Sensitivity adjustable in 3 steps
Transmitting power 10 mW
For 2 x 1.5 V mignon batteries or 2 x 1.2 V rechargeable batteries (type AA) (not included)
With charging contacts, suitable for optional charging station TM-105
Connection via XLR mini plug
License-free and approved in the EU

Modulation:	FM
Carrier frequency:	UHF 863.000-865.000 MHz
Microphone type:	Condenser with cardiodid pattern
RF power output:	10 mW
Coverage:	50-70 m (with line-of-sight)
Frequency range:	50-18000 Hz (±3 dB)
Frequency stability:	±0.005 %
Power supply:	2 x 1.5 V mignon batteries (type AA)/
	2 x 1.2 V rechargeable batteries (type AA)
Battery life:	approx. 14 hours
Rechargeable battery life:	approx. 11 hours
Audio input:	mini XLR
Dimensions (L x W x H):	88 x 64 x 26 mm
Weight:	0.186 kg
Height:	8,8 cm
Depths:	2,6 cm
Width:	6,4 cm

Varenr.: E-13075001
