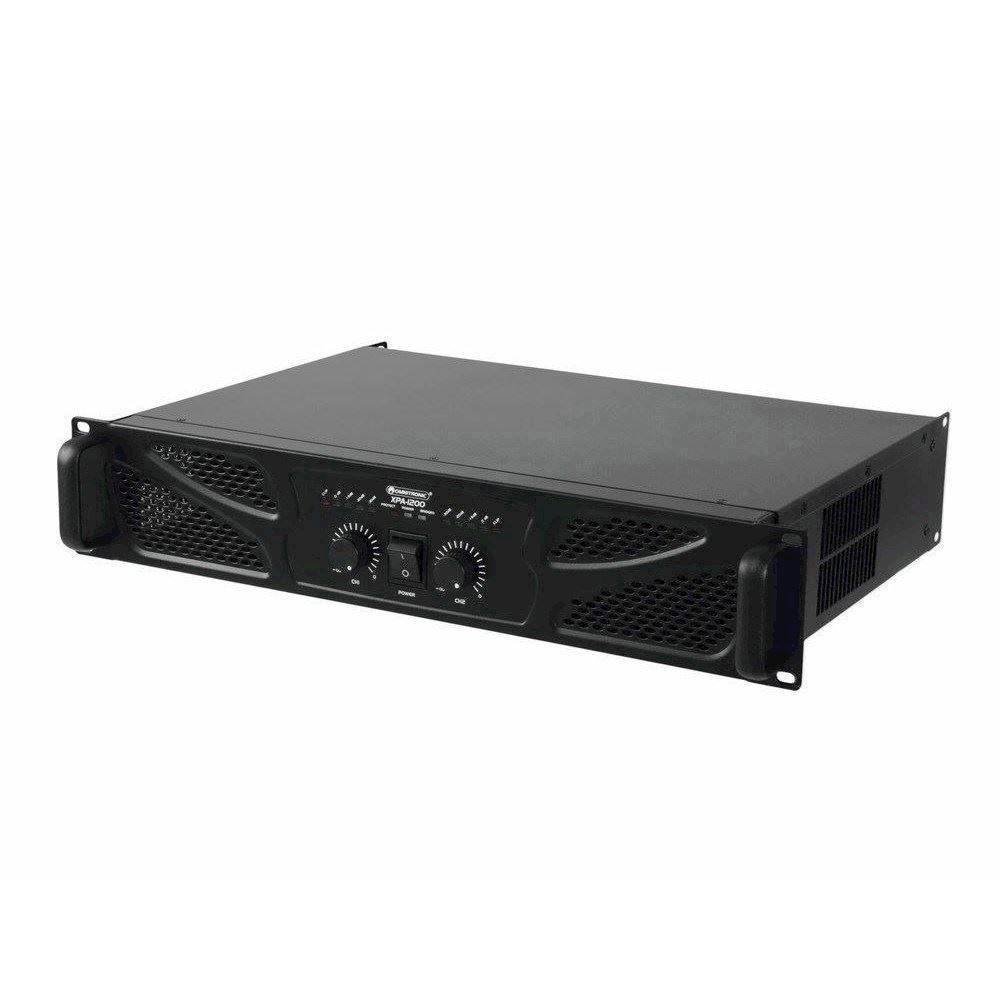

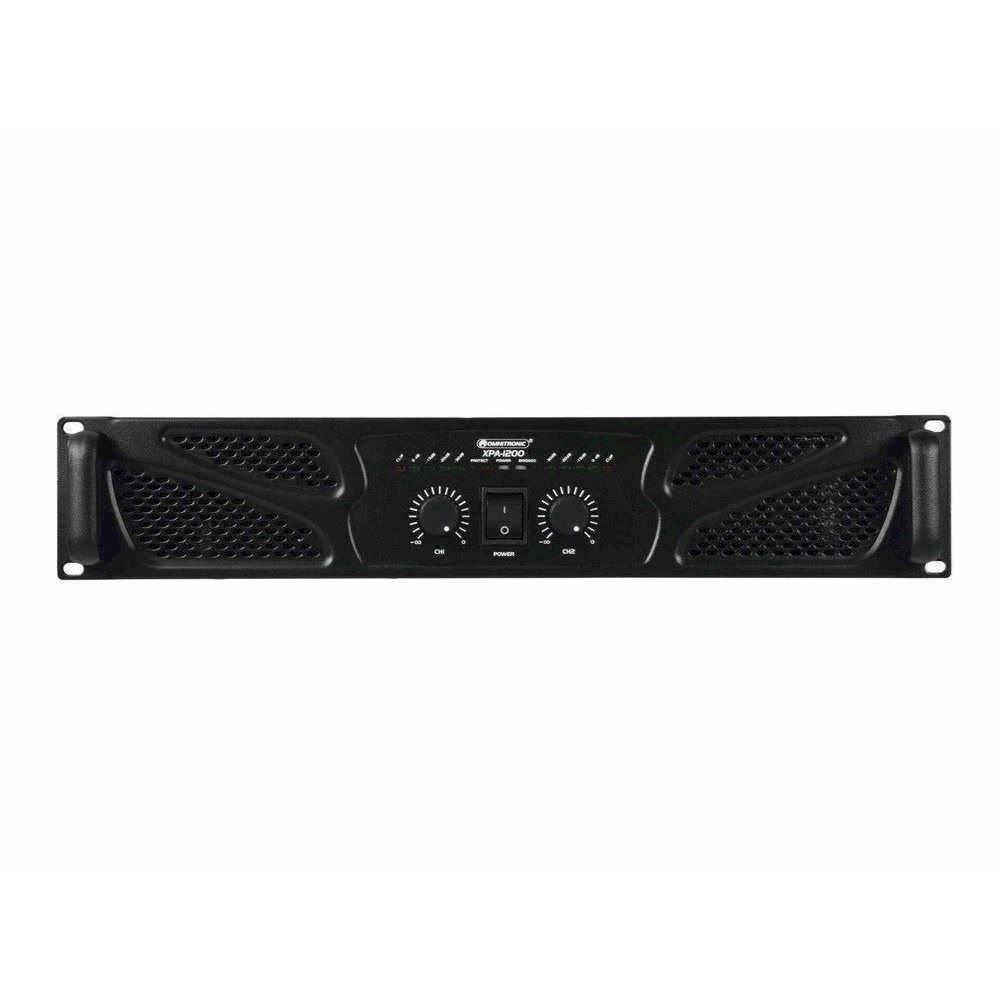

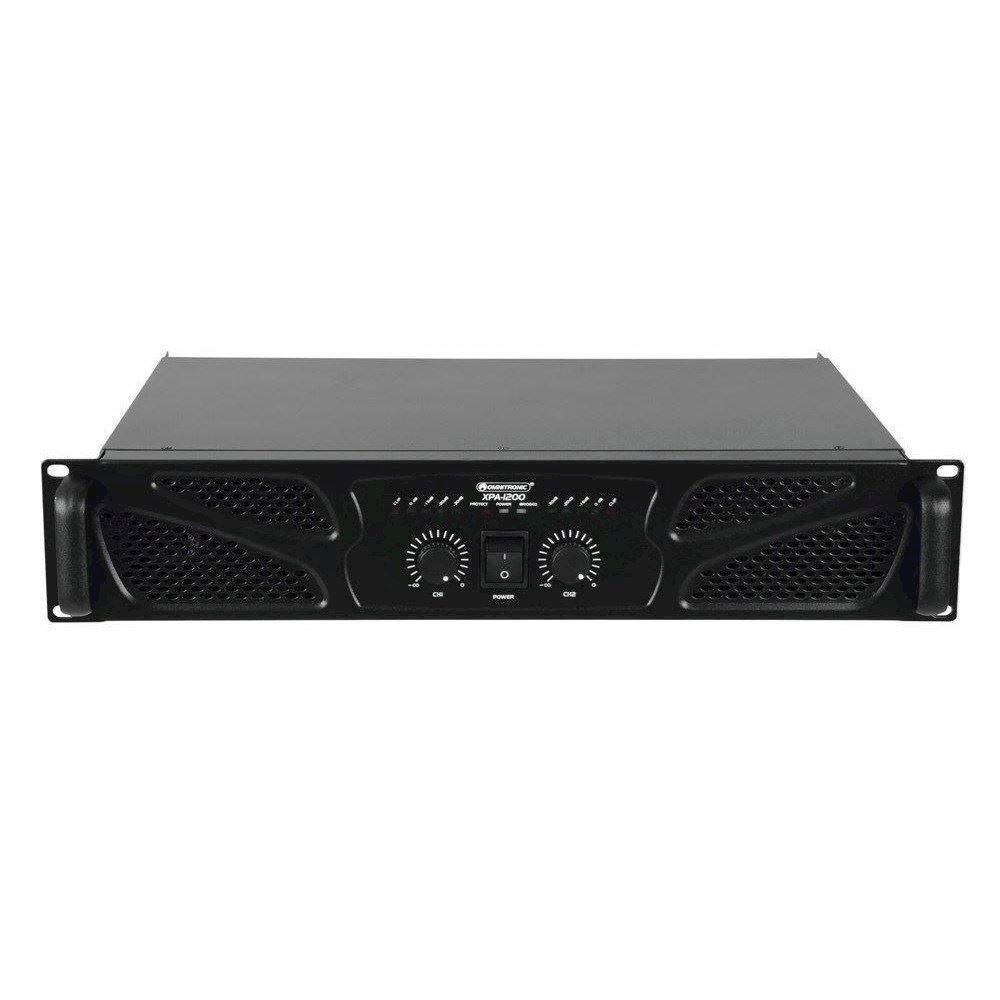

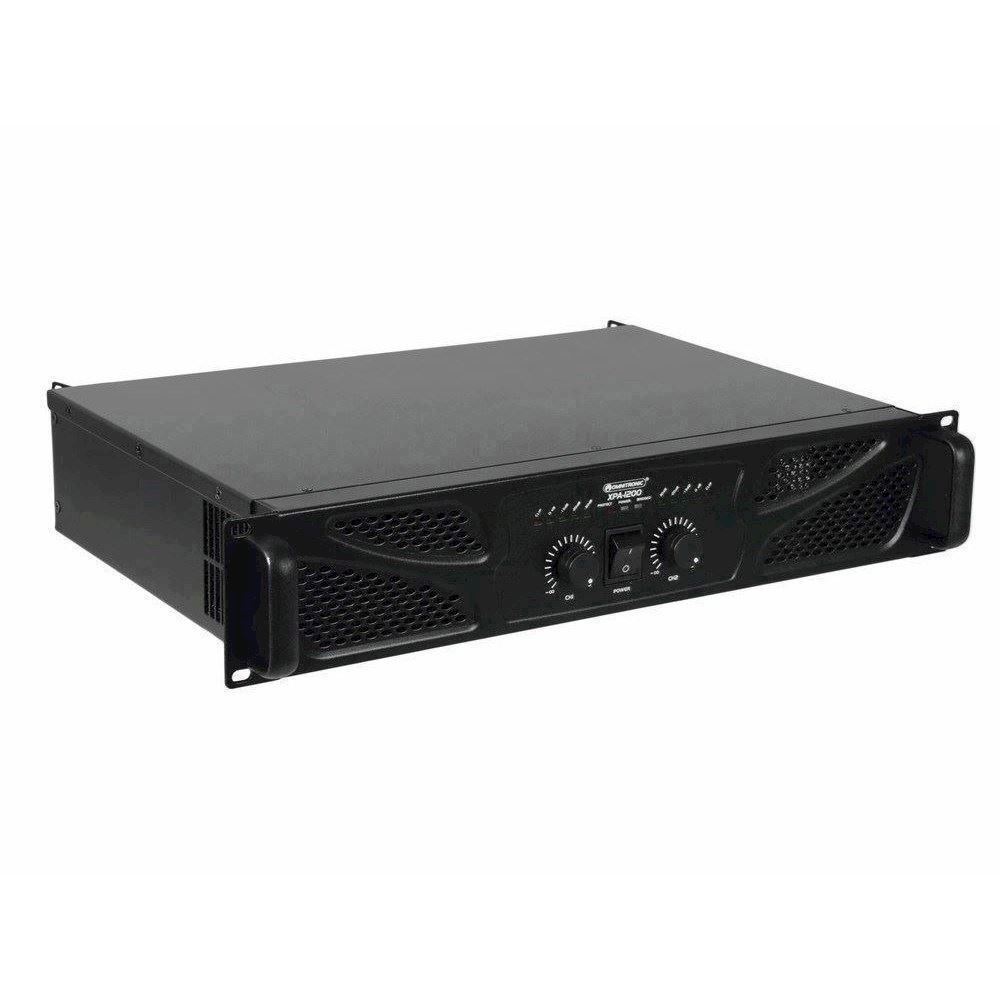

OMNITRONIC XPA-1200 Amplifier with integrated limiter, 2 x 600 W / 4 ohms, 2 x 420 W / 8 ohms

På lager
På lager, 3-5 hverdage
Bedømmelse for OMNITRONIC XPA-1200 Amplifier with integrated limiter, 2 x 600 W / 4 ohms, 2 x 420 W / 8 ohms
Produktet er endnu ikke bedømt

PA amplifier with integrated limiter, 2 x 600 W / 4 ohms, 2 x 420 W / 8 ohms

2 operating modes can be selected (stereo or bridged)
Limiter, switchable
Speaker switch-on delay
2 level controls
Each channel with LED for activated protective circuit (protect) and output meter with clip LED
Complete protection set against short-circuit, overheat, DC voltage, power on/off transients
Groundlift switch against humming
Fan cooling
Signal inputs via XLR or 6.3mm jack connectors
Speaker outputs via lockable speaker jacks and pairs of screw terminals
Additional Speaker plug for 8-ohm bridge operation
Class AB circuitry
Rack installation with 2 units

Power supply:	115/230 V AC, 50/60 Hz
Power output sine:
Stereo 4 ohms	2 x 610 W
Stereo 8 ohms	2 x 420 W
8 ohms bridged	1 x 1200 W
Frequency range:	20-20000 Hz, ±1 dB
Damping factor:	>350
Distortion factor:	0.5 %
Slew rate:	20 V/µsec
S/N ratio:	>95 dB
Input sensitivity:	1.4 V
Input impedance:	20 kohms (balanced), 10 kohms (unbalanced)
Input voltage:	max. 21 dBV/9V

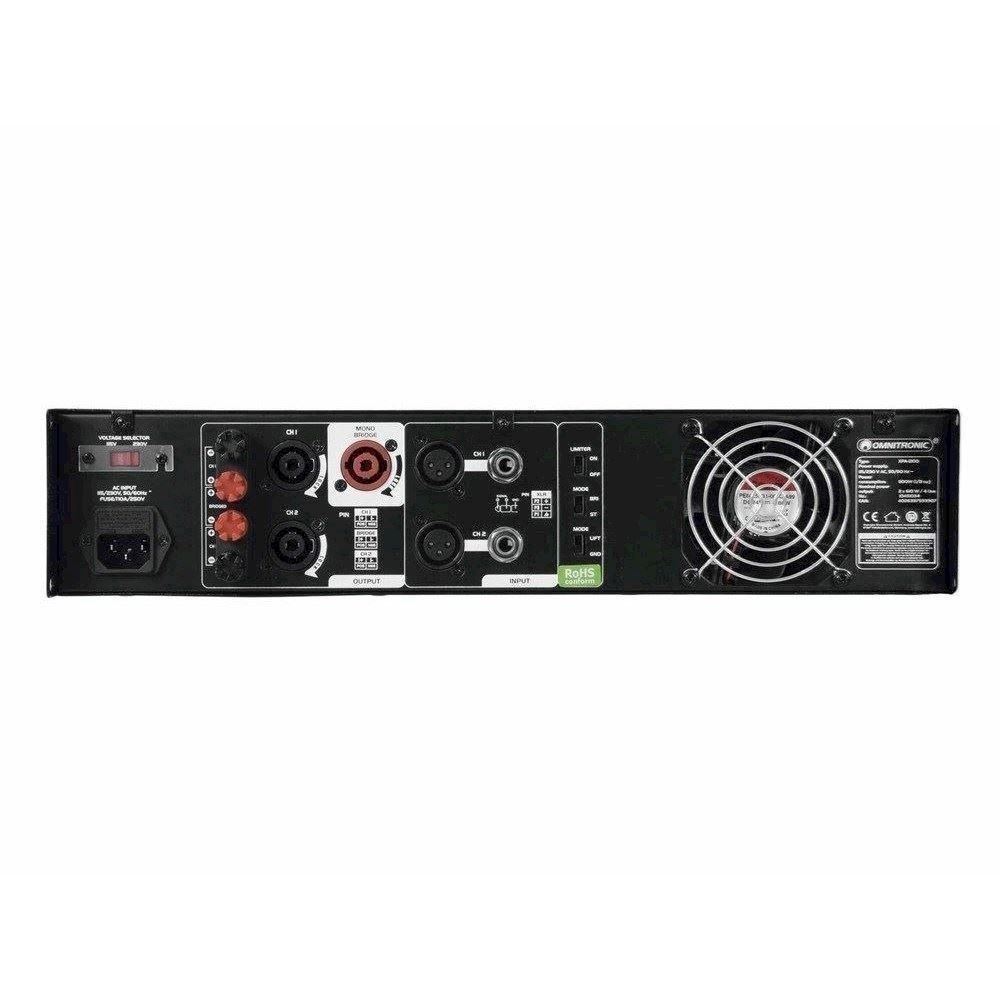

Input connectors:	2 x XLR, 2 x 6.3 mm jack
Output connectors:	2 x speaker, 1 x speaker (bridge), 2 x pairs of screw terminals
Control elements:	power switch, level control per channel, mode switch (stereo/bridged), limiter selector, groundlift selector
LED indicators:	bridged, protect, and 5-fold output meter with clip LED (per channel)
Protection circuits:	short-circuit, overheat, DC voltage, power on/off transients, softstart
Construction:	steel chassis with steel front panel
Dimensions (DxWxH):	354 x 483 x 103 mm (19", 2 U)
Weight:	12,4 kg
Power consumption:	800 1/8 power W
Power/channel (8 Ohm):	420
Power/channel (4 Ohm):	610
Height:	8,9 cm
Depths:	35,4 cm
Width:	48,3 cm

Varenr.: E-10451034
