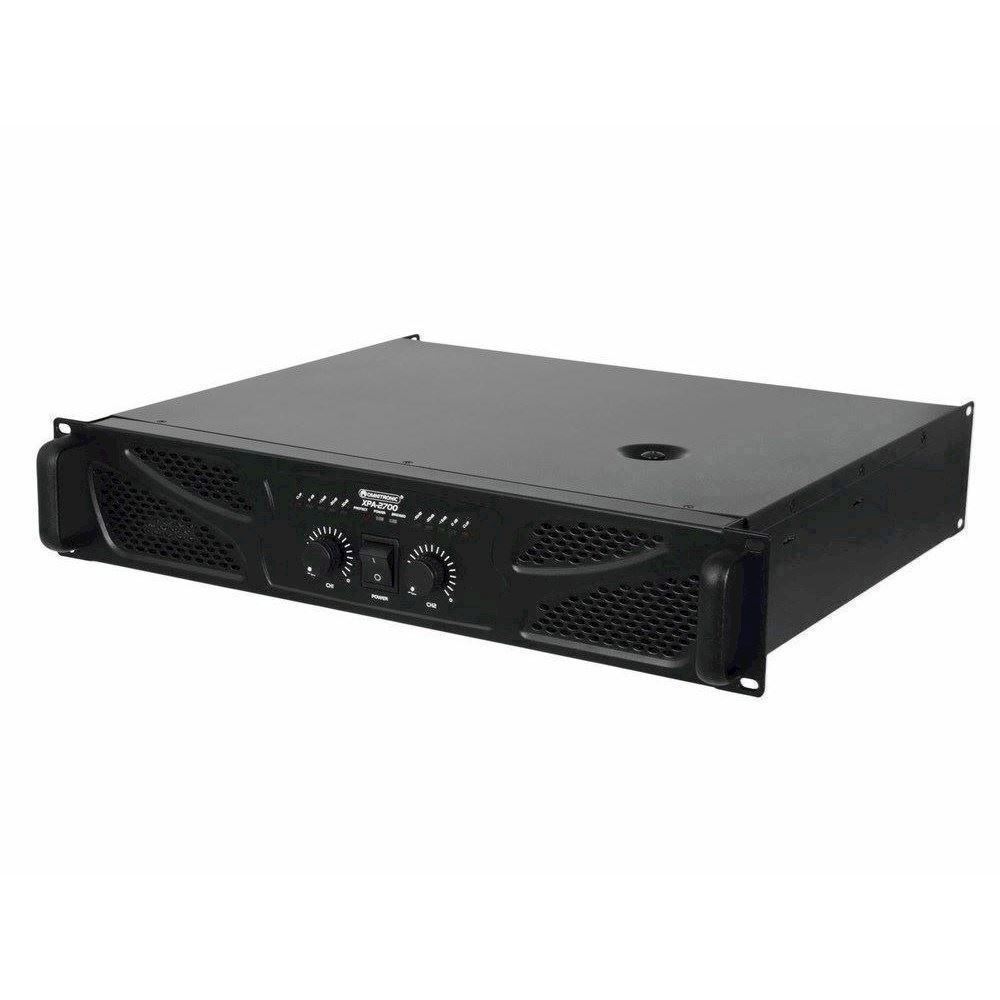

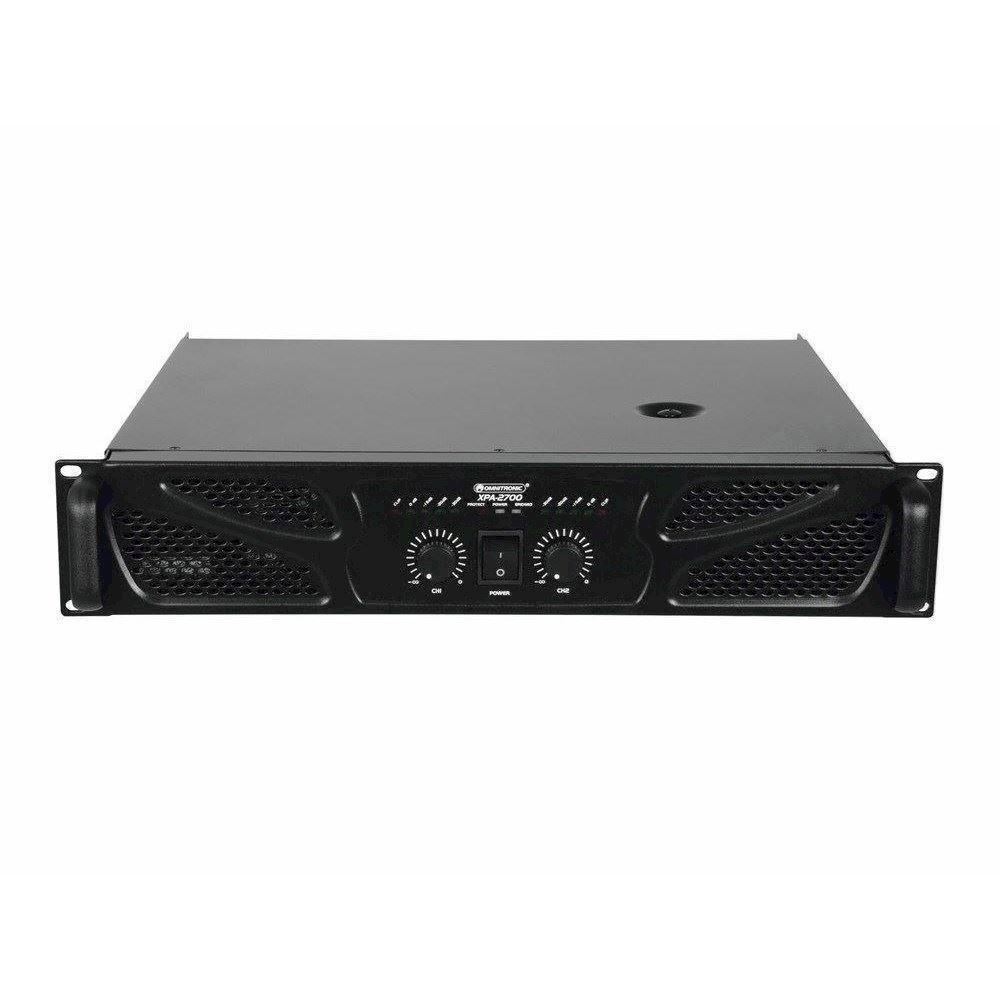

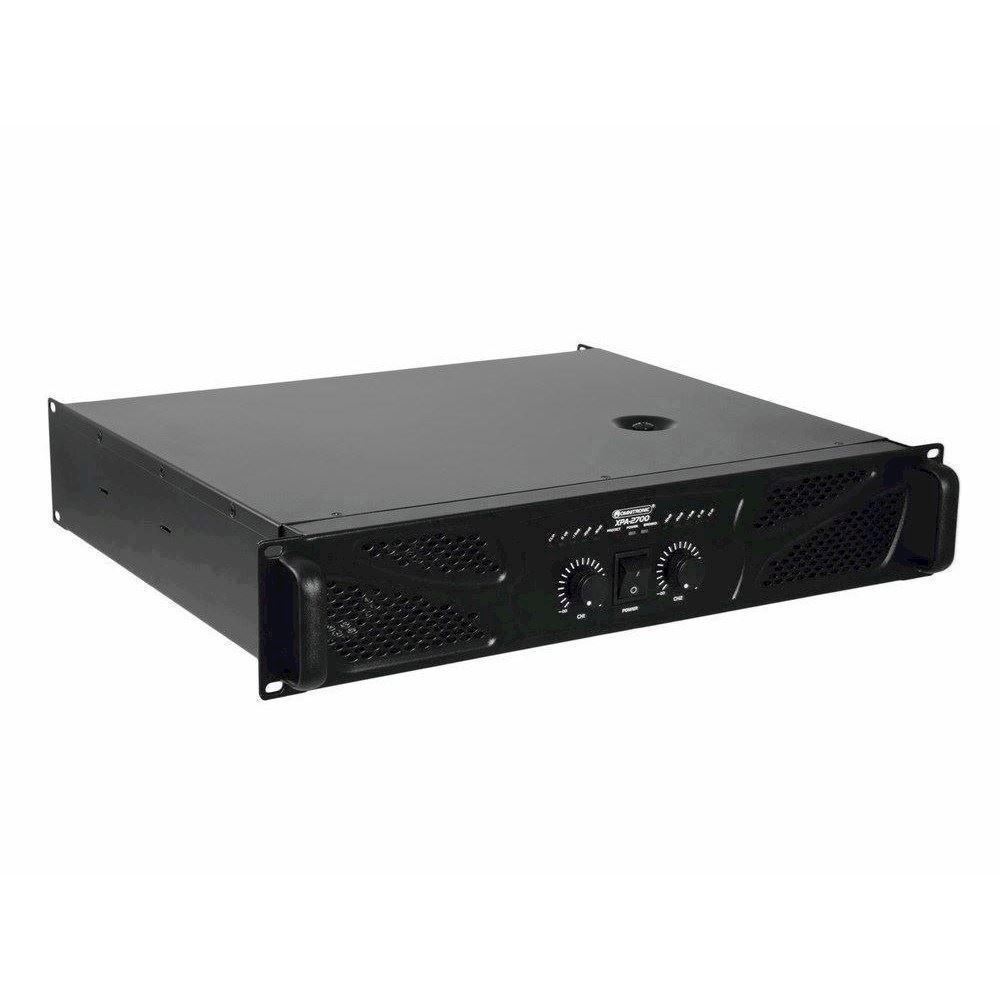

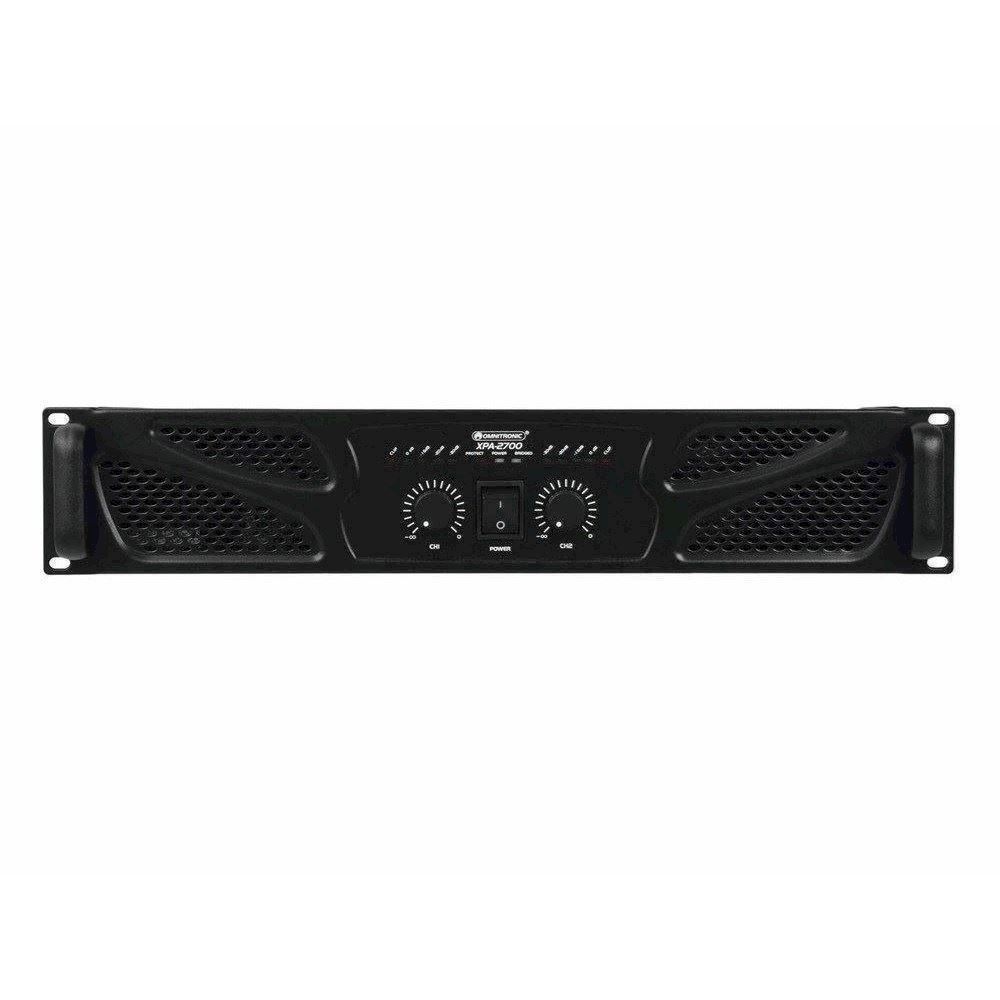

OMNITRONIC XPA-2700 Amplifier with integrated limiter, 2 x 1350 W / 4 ohms, 2 x 1080 W / 8 ohms

På lager
På lager, 3-5 hverdage
Bedømmelse for OMNITRONIC XPA-2700 Amplifier with integrated limiter, 2 x 1350 W / 4 ohms, 2 x 1080 W / 8 ohms
Produktet er endnu ikke bedømt

PA amplifier with integrated limiter, 2 x 1350 W / 4 ohms, 2 x 1080 W / 8 ohms

3 operating modes can be selected (stereo, parallel or bridged)
Input sensitivity adjustable
Speaker switch-on delay
2 level controls
Each channel with LED for activated protective circuit (protect) and output meter with clip LED
Complete protection set against short-circuit, overheat, DC voltage, power on/off transients
Fan cooling
Signal inputs via XLR or RCA connectors
Speaker outputs via lockable speaker jacks and pairs of screw terminals
Additional Speaker plug for 8-ohm bridge operation
Class H circuitry
Rack installation with 2 units

Power supply:	230 V AC, 50 Hz
Power output sine:
Stereo 4 ohms	2 x 1350 W
Stereo 8 ohms	2 x 1080 W
8 ohms bridged	1 x 2700 W
Frequency range:	20-20000 Hz, ±1 dB
Damping factor:	>200
Distortion factor:	0.5 %
Slew rate:	>10 V/µsec
S/N ratio:	>100 dB
Input sensitivity:	0.775 V / 1.4 V, switchable
Input impedance:	20 kohms (balanced), 10 kohms (unbalanced)

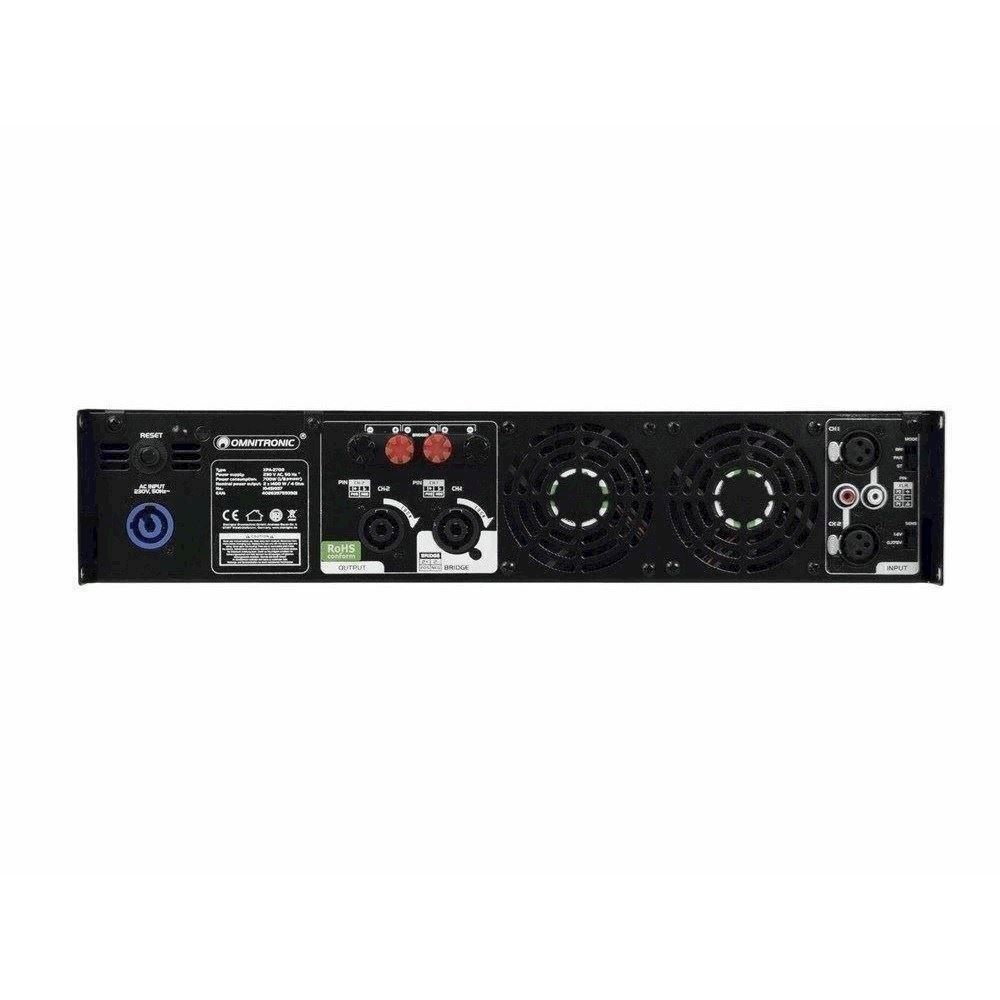

Input connectors:	2 x XLR, 2 x RCA
Output connectors:	2 x speaker, 2 x pairs of screw terminals
Control elements:	power switch, level control per channel, mode switch (stereo/bridged), limiter selector, groundlift selector
LED indicators:	bridged, protect, and 5-fold output meter with clip LED (per channel)
Protection circuits:	short-circuit, overheat, DC voltage, power on/off transients, softstart
Construction:	steel chassis with steel front panel
Dimensions (DxWxH):	415 x 483 x 103 mm (19", 2 U)
Weight:	17,9 kg
Power consumption:	700 1/8 power W
Power/channel (8 Ohm):	1080
Power/channel (4 Ohm):	1350
Height:	8,9 cm
Depths:	41,5 cm
Width:	48,3 cm

Varenr.: E-10451037
