Chassis-gennemføring, skal monteres forfra, sort krombelægning. Fugtsikret til IP65 når monteret med SCDP-xx (ekstraudstyr)

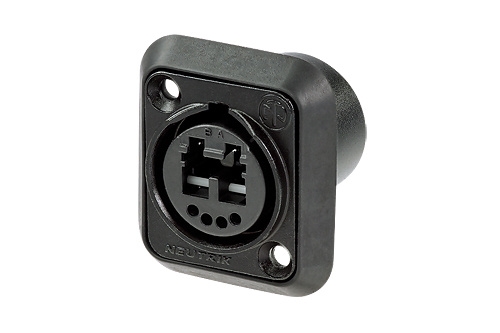

NO2-4FDW-A Opticalcon duo chassis gennemføring, sort krom
Chassis-gennemføring,
skal monteres forfra, sort krombelægning. Fugtsikret til IP65 når
monteret med SCDP-xx (ekstraudstyr)
Contact resistance: < 7 mO
Dielectric strength: 1,5 kVdc
Insulation resistance: > 2 GO (initial)
Rated current per contact: 6 A
Rated voltage: < 50 V (1)
Insertion force: < 45 N
Withdrawal force: < 45 N
Lifetime: > 5000 mating cycles
Locking force: 1000 N
Locking device: Push-Pull
Mounting direction: Front mounting
Chassis shape: D
Contacts: Bronze (CuSn6)
Insert: Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Black chromium
Split sleeve: ceramics
Temperature range: -40 °C to +75 °C
Optical connector: LC-Duplex Feedthrough
(1)
Not compatible to the SMPTE standard, suitable for indoor studio
applications acc. IEC 60664-1 (pollution degree 1, over voltage
category 1)
