Channels | 2 |
Zones | - |
Power rating | 300 W |
Power rating at 2 Ω | - |
Power rating at 4 Ω | 2 x 150 W |
Power rating at 8 Ω | 2 x 100 W |
Power rating at 100 V | - |
Power rating with 4 Ω bridged operation | - |
Power rating with 8 Ω bridged operation | 1 x 300 W |
Peak music power output (PMAX) | 350 W |
Output impedance | - |
Inputs | 1 V/12 kΩ |
Attenuation factor | - |
Frequency range | 20-20,000 Hz |
Crossover network | - |
Crossover frequency | - |
Integrated limiter | yes |
Equalizer bass | - |
Equalizer midrange | - |
Equalizer treble | - |
S/N ratio | > 96 dB |
Crosstalk attenuation | > 70 dB |
THD | < 0.05% |
Power supply | ∼ 230 V/50 Hz/510 VA |
Mains voltage | ∼ 230 V |
Mains frequency | 50 Hz |
Power consumption, operation | 510 VA |
Power consumption, standby | - |
Standby current | - |
Operating voltage (possible alternative) | - |
Power supply (possible alternative) | - |
Admiss. ambient temp. | 0-40 °C |
Dimensions | 482 x 52 x 290 mm, 1 RS |
Width | 482 mm |
Height | 52 mm |
Depth | 290 mm |
Rack spaces, RS | 1 |
Weight | 3.7 kg |

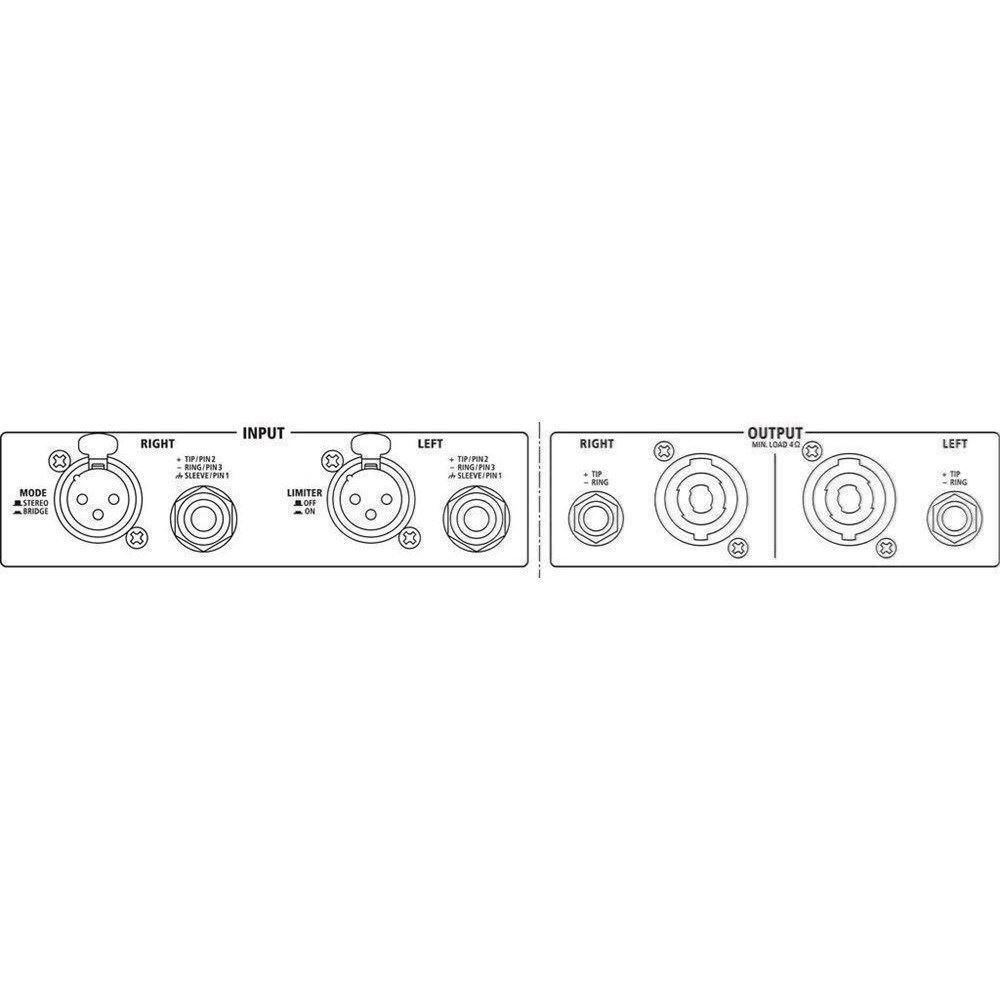

Connections | 1 x 3-pole XLR L/R 1 x 6.3 mm jack L/R 1 x SPEAKER L/R |
