PA-forstærker 4 zoner - PA-40120 - MONACOR

På lager
På lager, 2-4 dage
Bedømmelse for PA-forstærker 4 zoner - PA-40120 - MONACOR
Produktet er endnu ikke bedømt

11.239,00DKK ved 1 stk.

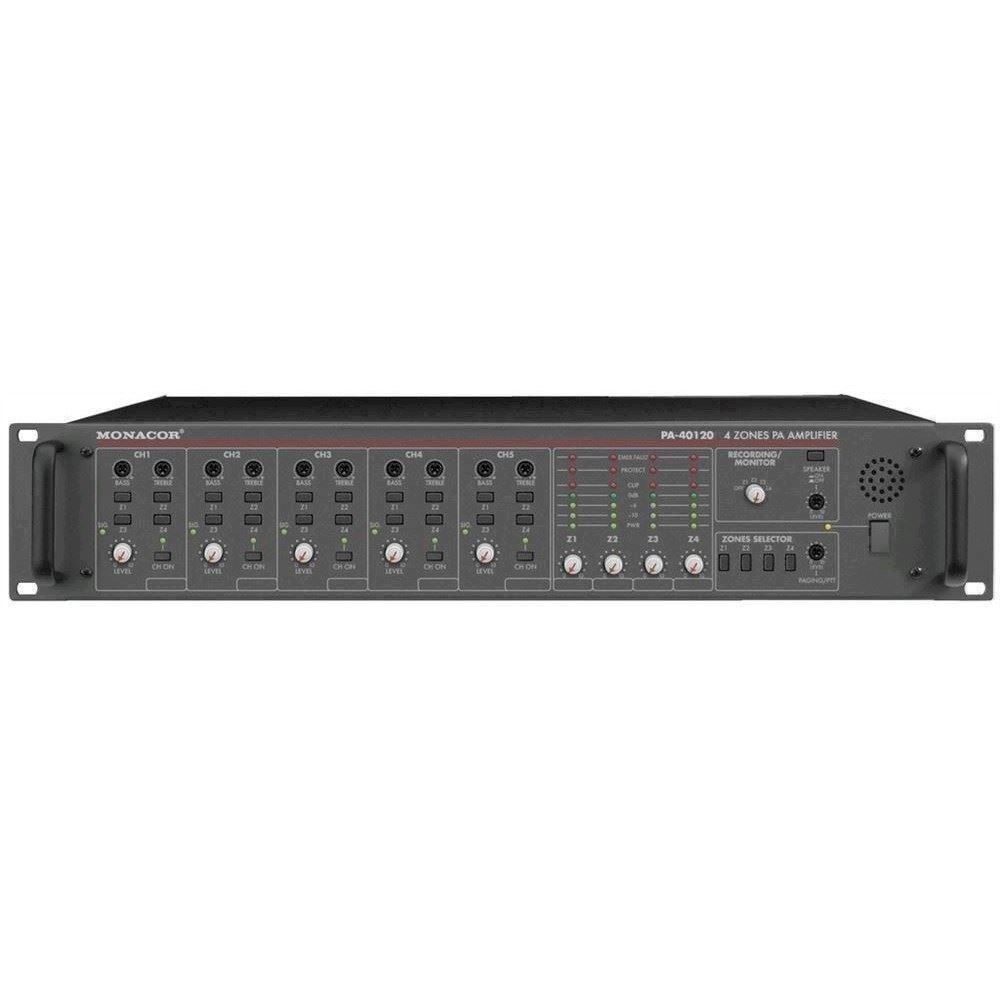

PA-forstærker 4 zoner with 4 active 120W outputs

4-zone mono mixing amplifier, with 4 active 120 W outputs,
for setting up a multi-zone PA system. A switch allows each of the 5 inputs to be assigned to one of the 4 outputs. Thus, it is possible to reproduce varying programmes in different areas. Another advantage is that an announcement in one area will not interrupt the programme in another area.
With optional zone-paging microphone PA-4000RC, the amplifier can be extended to a 4-channel PA system. In combination with the fireman's microphone PA-4000FMP with integrated voice memory, e.g. an alarm system can be set up in schools.

4 x 120 W
4 zones, can be controlled individually
3 mic/line inputs and 2 line inputs
Built-in adjustable monitor speaker
Chime and siren can also be activated via external momentary push-button
Bass, treble and master controls, level display via LEDs, regulated fan
Phantom power for electret microphones
Connection for microphone PA-4000PTT
Connections for 4 x PA fireman's microphone PA-4000FMP
Mains operation and 24 V emergency power operation

Channels	5
Zones	4
Power rating	4 x 120 W
Power rating at 2 Ω	-
Power rating at 4 Ω	-
Power rating at 8 Ω	-
Power rating at 100 V	-
Power rating with 4 Ω bridged operation	-
Power rating with 8 Ω bridged operation	-
Peak music power output (P_MAX)	4 x 170 W
Output impedance	-
Inputs	2.5 mV/5 kΩ, 0.3 V/15 kΩ (mic/line 1-3), 0.3 V/15 kΩ (line 4-5)
Attenuation factor	-
Frequency range	45-20,000 Hz
Crossover network	-
Crossover frequency	-
Integrated limiter	-
Equalizer bass	± 10 dB/100 Hz
Equalizer midrange	-
Equalizer treble	± 10 dB/10 kHz
S/N ratio	> 70 dBA (mic), > 90 dBA (line)
Crosstalk attenuation	-
THD	< 1%
Power supply	∼ 230 V/50 Hz/1,500 VA, DC current 24 V/40 A
Mains voltage	∼ 230 V
Mains frequency	50 Hz
Power consumption, operation	1,500 VA
Power consumption, standby	-
Standby current	-
Operating voltage (possible alternative)	DC current 24 V
Power supply (possible alternative)	DC current 40 A
Admiss. ambient temp.	0-40 °C
Dimensions	482 x 90 x 377 mm, 2 RS
Width	482 mm
Height	90 mm
Depth	377 mm
Rack spaces, RS	2
Weight	22.1 kg

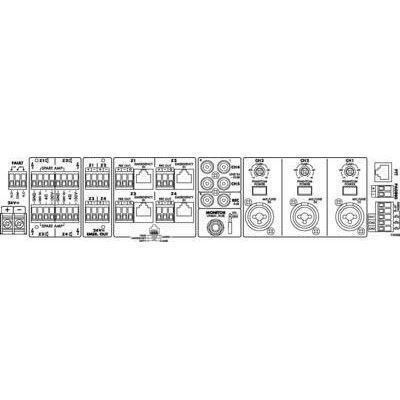

Connections	3 x combo 6.3 mm/XLR (mic/line), 2 x RCA L/R (line), 1 x RJ45 (push-to-talk mic), 4 x screw terminals (speakers), 1 x 6.3 mm jack (monitor), 4 x RJ45 (emergency), 4 x screw terminals (preamplifier), screw terminals (chime button), 1 x RCA L/R (record)

Varenr.: 173220
