Active/passive | active |
Transmission technology | cable |
Total output power | 700 W |
Power rating (RMS) | DSP-controlled 350 W (290 + 60) bass: 290 W treble: 60 W |
Total power rating | - |
Power rating (RMS) | - |
Impedance | - |
Frequency range | 45-20,000 Hz |
THD | - |
S/N ratio | - |
Input signal | 790 mV/40 kΩ (line, bal.) |
System | 12/2 full range |
Full range speaker | - |
Bass speaker | 30 cm (12") bass speaker |
Midrange speaker | - |
Tweeter | 25 mm (1") horn tweeter |
Number of speakers | 2 |
Speaker size | 30 cm (12") |
SPL | 98 dB/W/m |
Max. rated SPL | 124 dB |
Beam angle | H: 90°/V: 60°, horn can be turned |
Radiation angle, horizontal | 90° |
Radiation angle, vertical | 60° |
Features | - |
Housing material | birch plywood |
Colour | black |

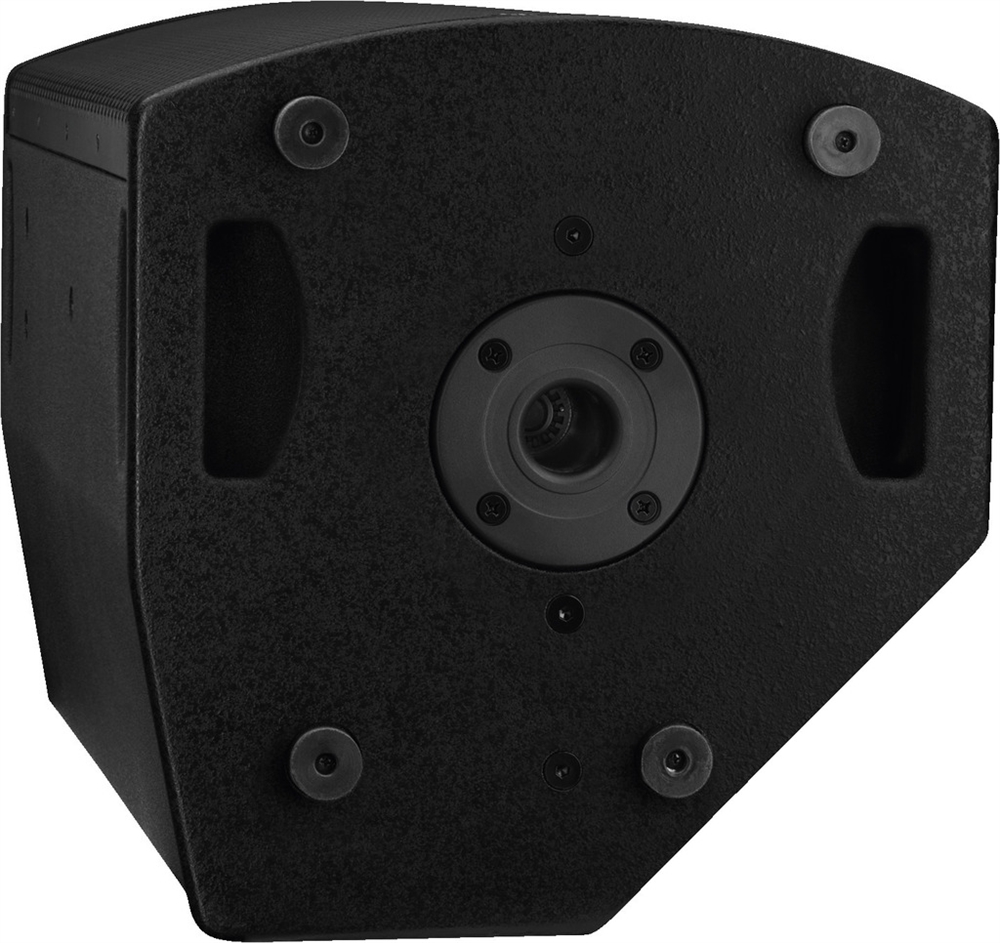

Mounting device | M8 threaded inserts, stand sleeve |
Protected against ball rebound | - |
Protection class | - |
Admiss. ambient temp. | 0-40 °C |
Power supply | ∿ 230 V/50 Hz/510 VA |
Dimensions | 360 x 620 x 380 mm |
Width | 360 mm |
Height | 620 mm |
Depth | 380 mm |
Weight | 17.04 kg |

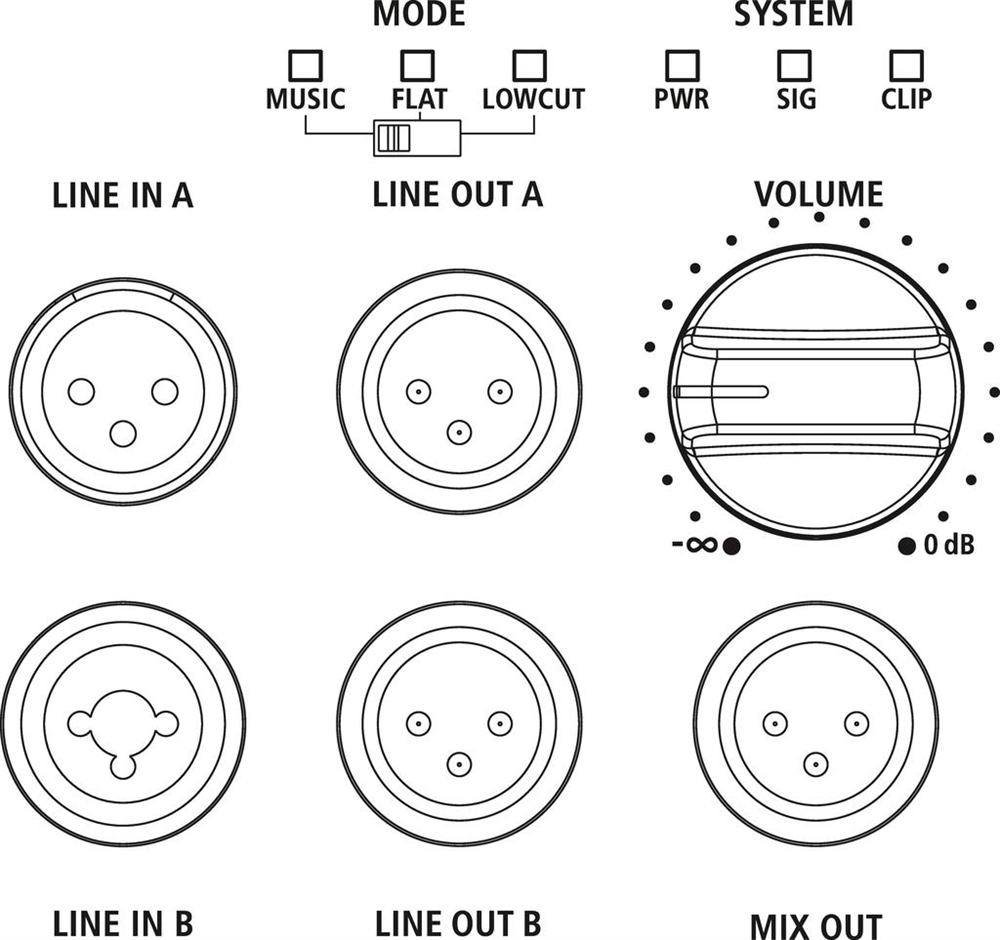

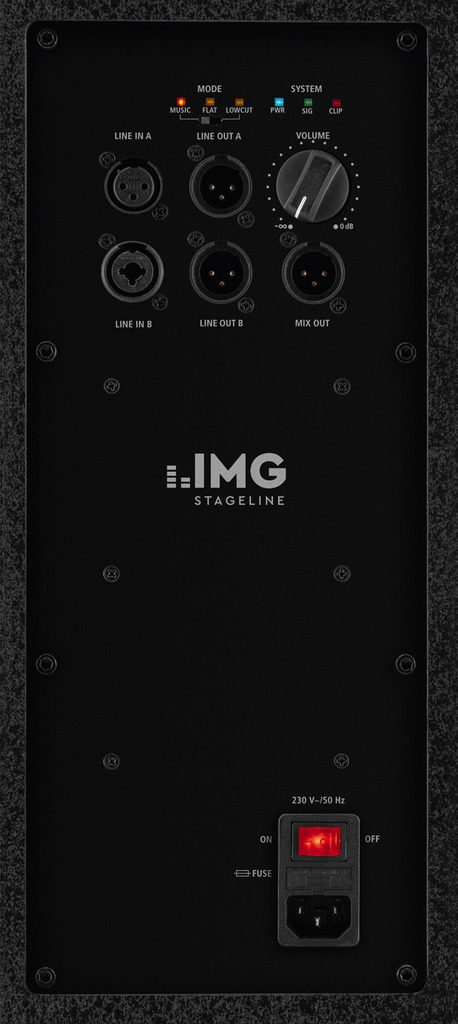

Inputs | 1 x comb. XLR/6.3 mm: line 1 x XLR: line |
Outputs | 2 x XLR par. out 1 x XLR mix out |
Replacement voice coil | - |
Other features | DSP-controlled limiter 3 selectable presets |
Accessories | - |
Packing dimensions (W x H x L) | 0.46 x 0.74 x 0.48 m |
Gross weight | 21.66 kg |
Net weight | 17.04 kg |
