Active/passive | active |
Transmission method | Cables |
Total output power | 300 W |
Power rating (RMS) | 200 W |
Total power rating | - |
Power rating (RMS) | - |
Impedance | - |
Frequency range | 70-20,000 Hz |
THD | - |
S/N ratio | - |
Input signal | 25 mV/28 kΩ (line, bal.), 6 mV/20 kΩ (mic, bal.) |
System | 4 x 4", full range |
Full range speaker | 4 x 10 cm (FaitalPRO 4 x 4") full range speaker |
Bass speaker | - |
Midrange speaker | - |
Tweeter | - |
Number of speakers | 4 |
Speaker size | 10 cm (4") |
Sensitivity | 98 dB/W/m |
Max. rated SPL | 122 dB |
Radiation angle, horizontal | - |
Radiation angle, vertical | - |
Features | - |
Housing material | multiplex |
Colour | black |

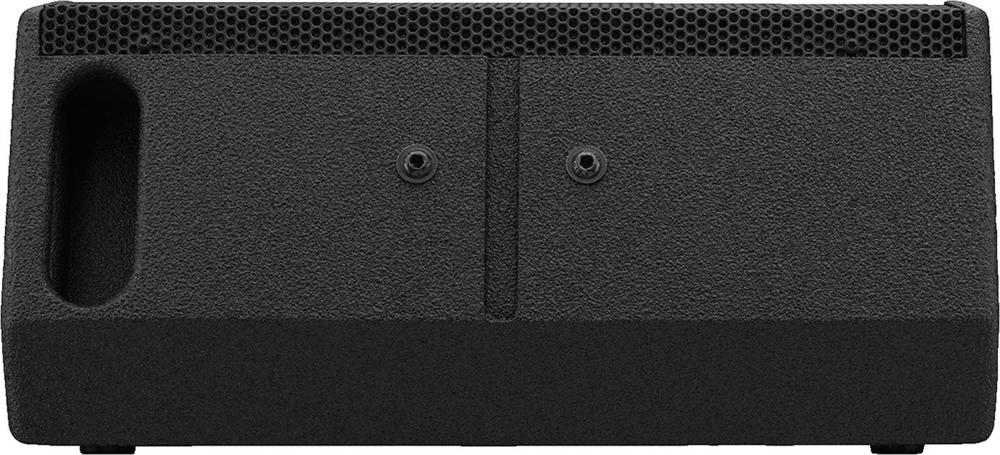

Mounting device | 2 x M10 threaded insert, 2 x M6 threaded insert |
Protected against ball rebound | - |
Protection class | - |
Admiss. ambient temp. | 0-40 °C |
Power supply | ∿ 230 V/50 Hz/356 VA |
Dimensions | 320 x 150 x 250 mm |
Width | 320 mm |
Height | 150 mm |
Depth | 250 mm |
Weight | 4.11 kg |

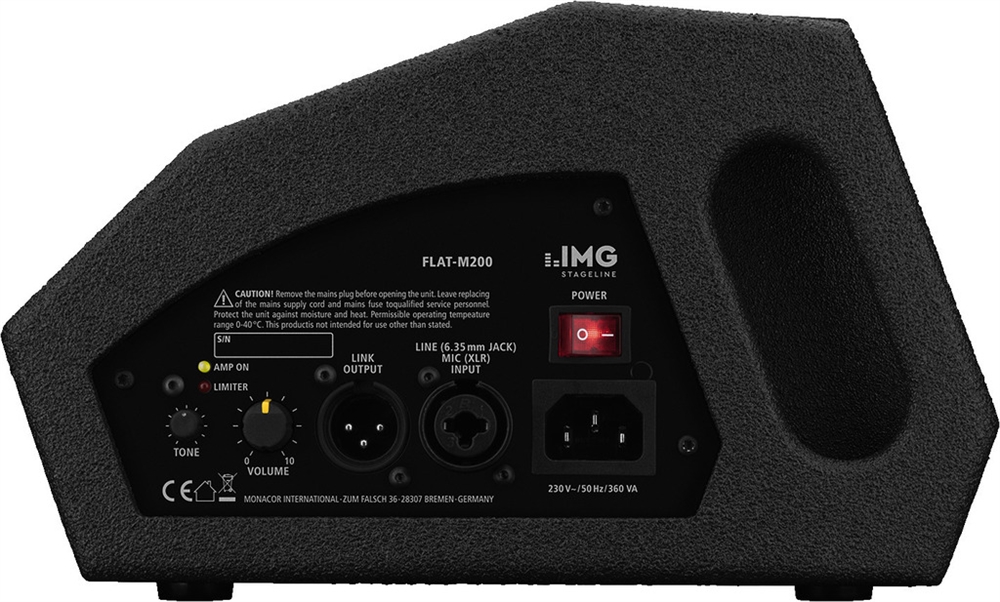

Inputs | 1 x comb. XLR/6.3 mm (line/mic) |
Outputs | 1 x XLR link out |
Replacement voice coil | - |
Other features | limiter |
Accessories | FLAT-M200BAG |
