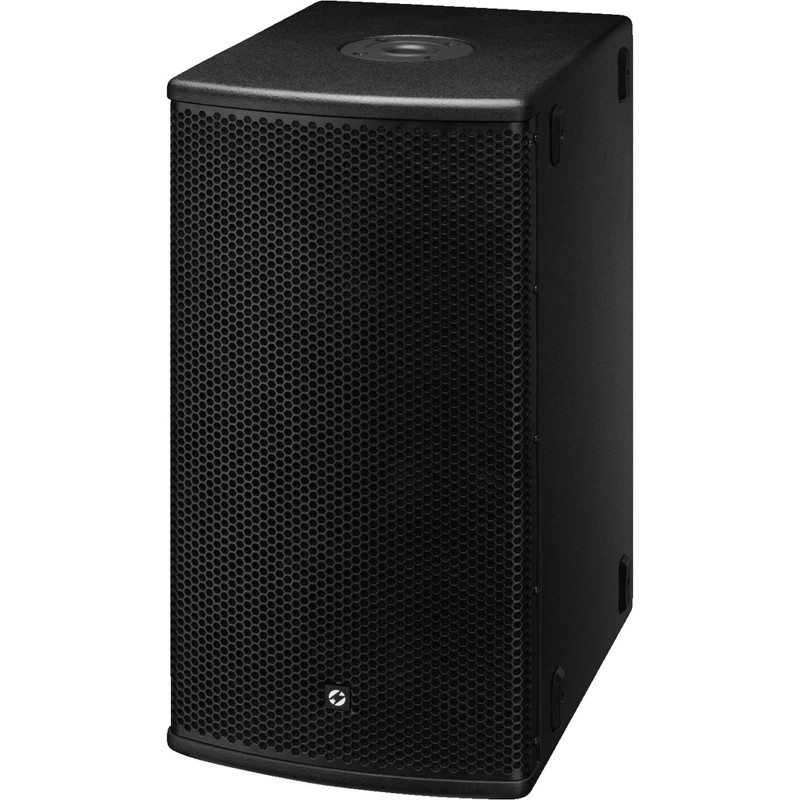

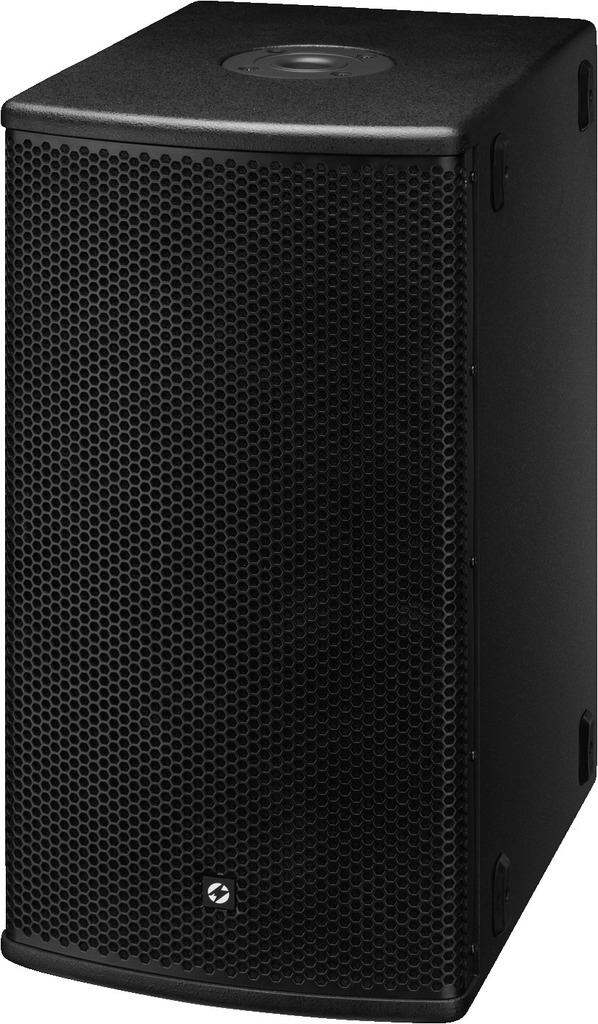

PA subwoofer - SUB-10

PA subwoofer - SUB-10
  • På lager
  • På lager, 2-4 dage
  • Bedømmelse for PA subwoofer - SUB-10
    Produktet er endnu ikke bedømt
  •
    2.359,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner




This 25 cm (10") passive subwoofer
has been developed to deliver a powerful bass reproduction from compact cabinets and features a power rating of 500 W max. The band-pass cabinet with its 10" bass speaker of long excursion generates a dry and deep bass. It can be used as subwoofer support for PA systems in restaurants and bars or shops to ensure a rich and powerful sound. Nevertheless, it can also be used as an additional subwoofer for smaller PA speakers and simply be connected in parallel due to the integrated crossover network (low-pass filter at approx. 200 Hz).
Passive subwoofer, 500 W/8 Ω
  • Band-pass subwoofer with double ventilation
  • 1 x 25 cm (10") top-class woofer
  • Slimline and compact design for upright and horizontal setup
  • High-quality lacquered cabinet made of plywood, front grille with inner lining
  • Integrated crossover network (low-pass) with crossover frequency at 200 Hz
  • 4 x M8 lateral threaded insert as installation aid
  • Speakers connected to the subwoofer in parallel must have a nominal impedance of 8 Ω min.
  • Stand sleeve at the top



Active/passivepassive
Transmission methodcable
Total output power-
Power rating (RMS)-
Total power rating500 W
Power rating (RMS)250 W
Impedance8 Ω
Frequency range40-200 Hz
THD-
S/N ratio-
Input signal-
Systemband-pass subwoofer
Full range speaker-
Bass speaker1 x 25 cm (10")
Midrange speaker-
Tweeter-
Number of speakers1
Speaker size25 cm (10")
Sensitivity92 dB/W/m
Max. rated SPL116 dB
Radiation angle, horizontal-
Radiation angle, vertical-
Features-
Housing materialmultiplex
Colourblack
Mounting devicethreaded inserts
Protected against ball rebound-
Protection class-
Admiss. ambient temp.0-40 °C
Power supply-
Dimensions300 x 610 x 410 mm
Width300 mm
Height610 mm
Depth410 mm
Weight19.84 kg
Inputs1 x NEUTRIK SPEAKON,

speaker terminals

Outputs-
Replacement voice coil-
Other features-
Accessories-
Varenr.: 259875
