Passive DI box - Palmer

Passive DI box - Palmer
  • På lager
  • På lager, 3-8 Hverdage
  • Bedømmelse for Passive DI box - Palmer
    Produktet er endnu ikke bedømt
  •
    1.099,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner




If you need to pick up the pure sound of your guitar, bass or keyboard, you need a high-quality DI-Box which does not alter the natural sound or add any noise.

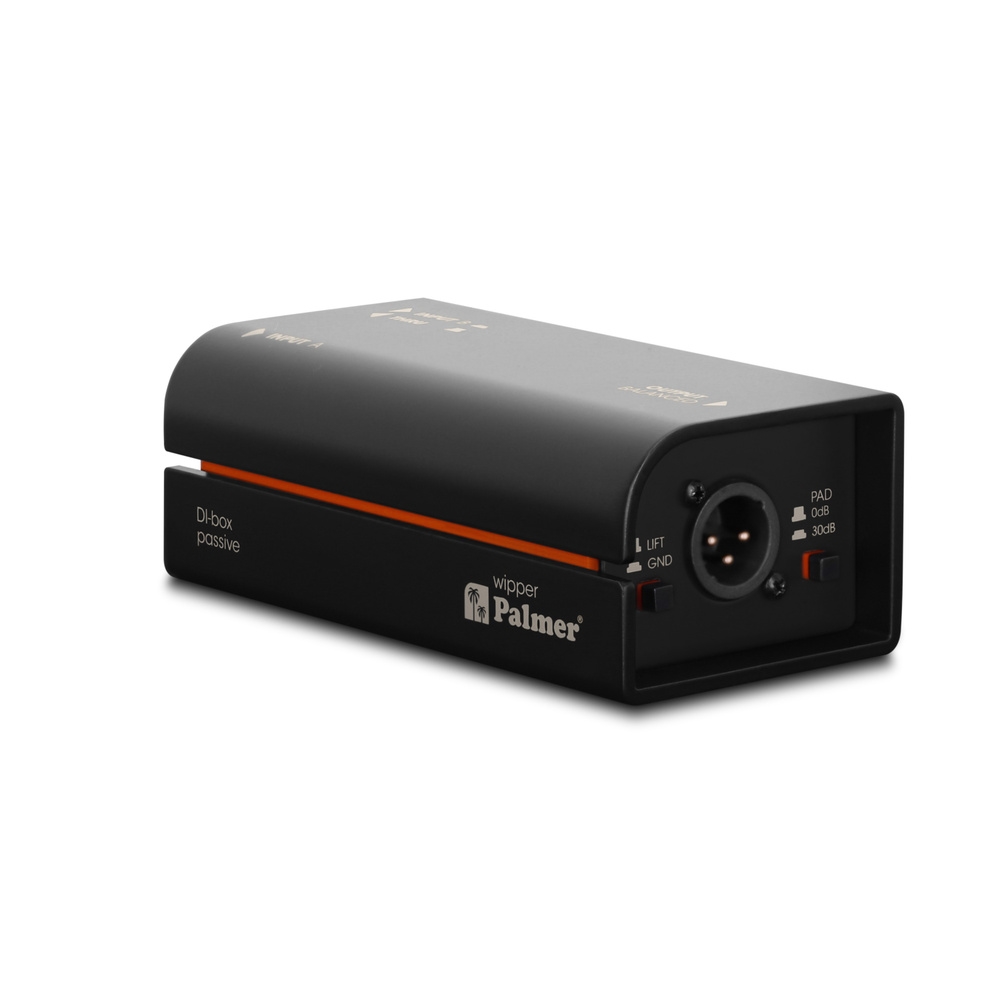

The Palmer wipper is a single channel passive DI box with a high-quality transformer, which also handles high levels without distorting or losing the pure sound of your instrument. With a ratio of 10:1, it can be used for optimal impedance and level adjustment to connect instrument signals from guitars, bass, keyboards or synthesisers to a balanced microphone input. At the same time galvanic isolation prevents ground loop hum, so that the signal remains pure, clear and ultra-low noise, without any interference. Thanks to a switchable 30 dB pre-attenuation, the wipper can also be looped in between amplifier output and the loudspeaker.

The Palmer wipper is an easy-to-use problem solver. Its passive construction means it does not need any batteries or a phantom power. This makes it extremely fail-safe and also virtually indestructible thanks to its aluminum and steel casing. With its ability to retain the natural sound of your instrument, it also cuts a fine figure studio and live environments. This way you can simply be true to your sound.

  • Balancing and impedance matching for guitar, bass, keyboards & synthesizers
  • Eliminates ground loop hum thanks to galvanic transformer isolation
  • Extremely fail-safe, no power supply required

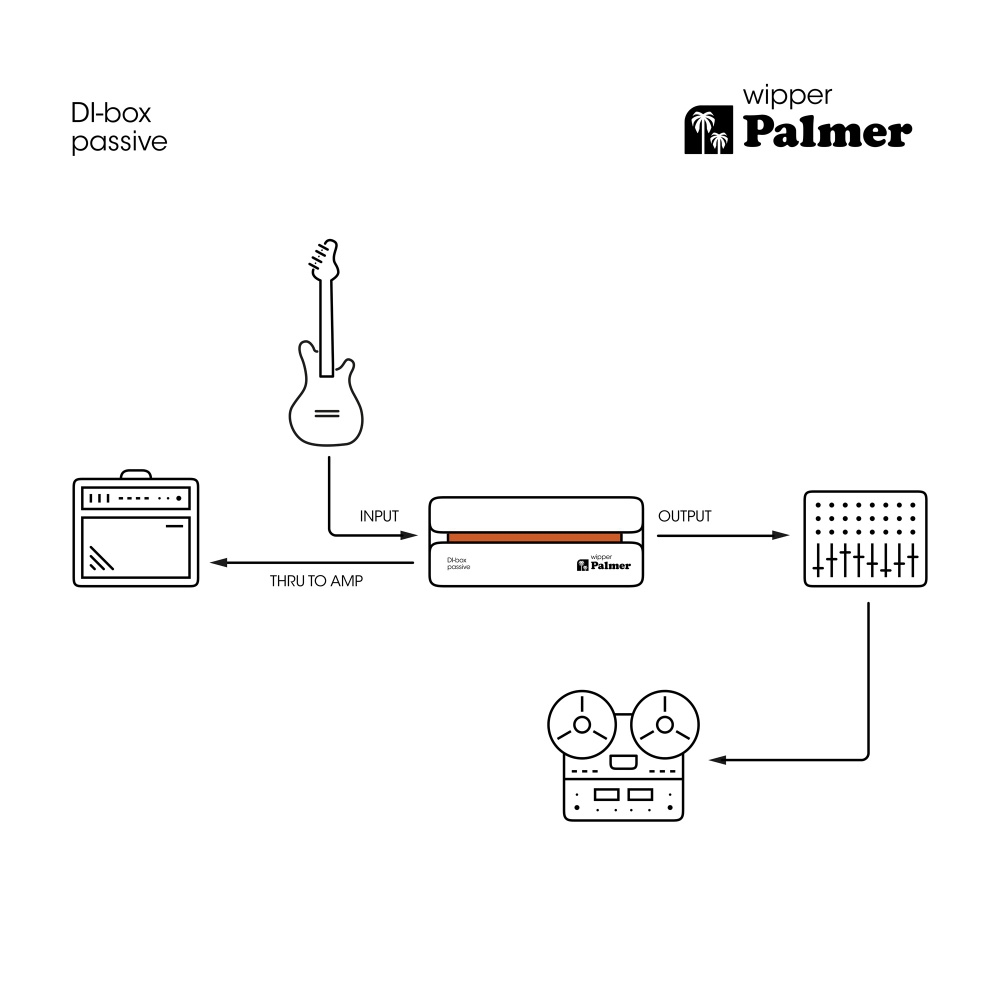

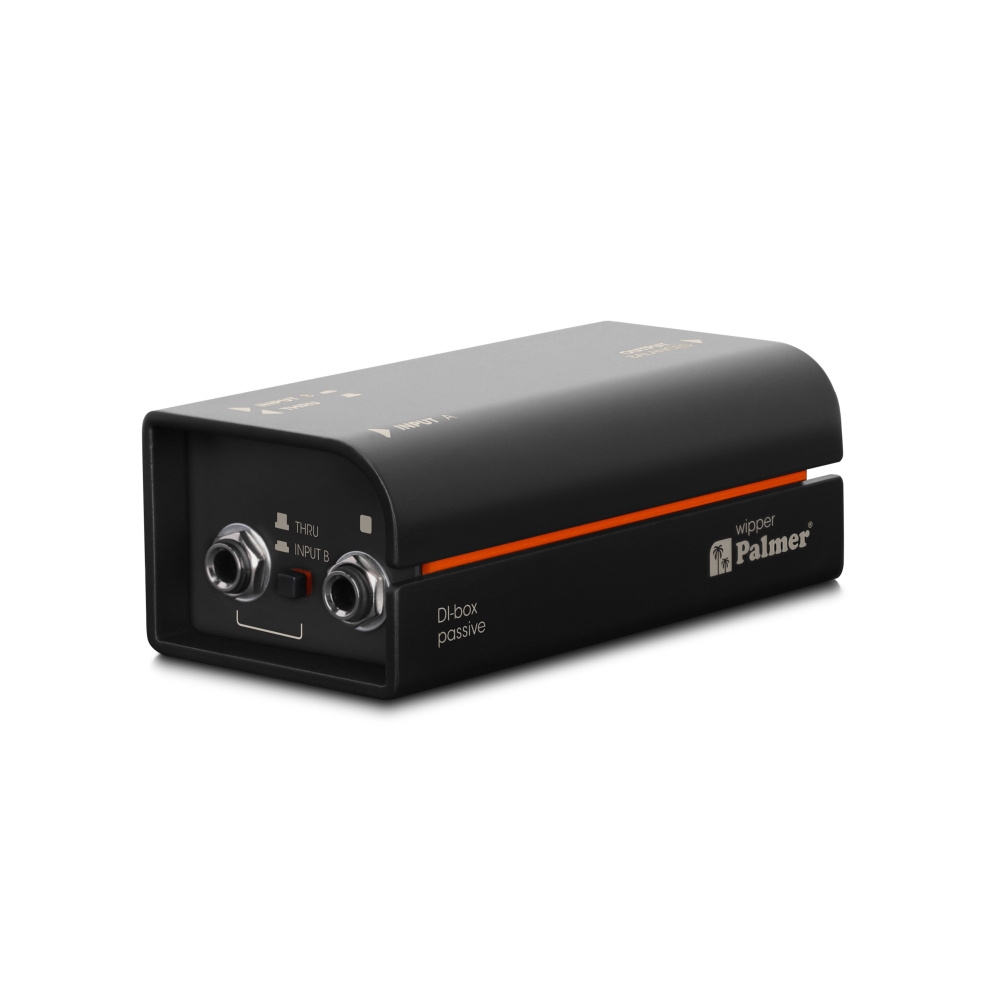

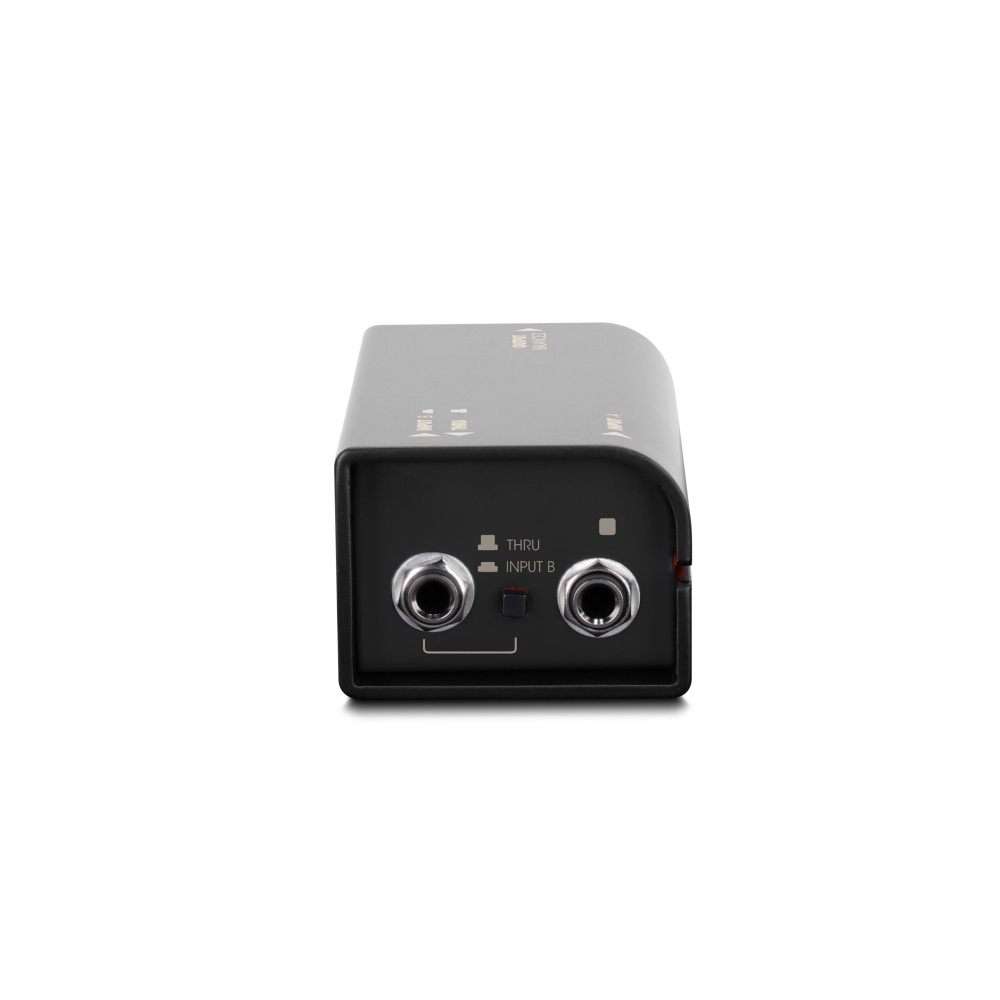

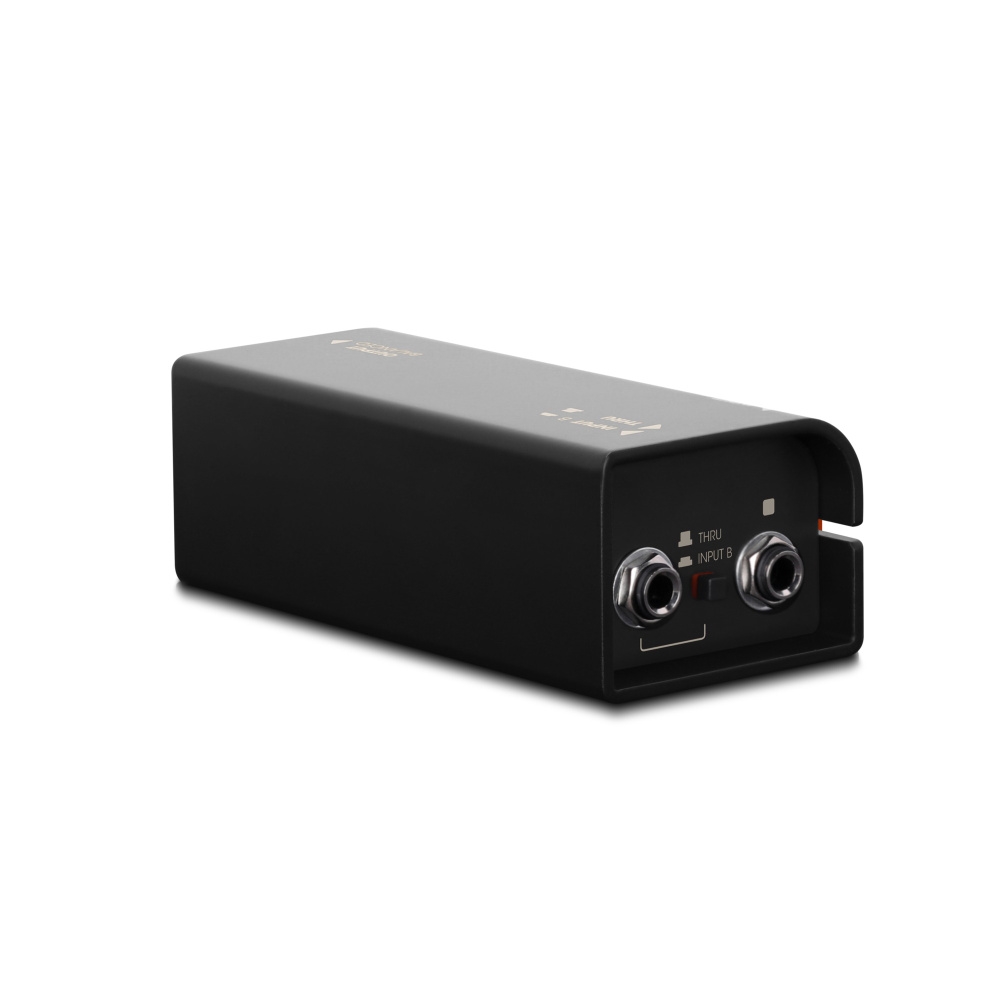

  • THRU-output for passing the input signal to the amplifier

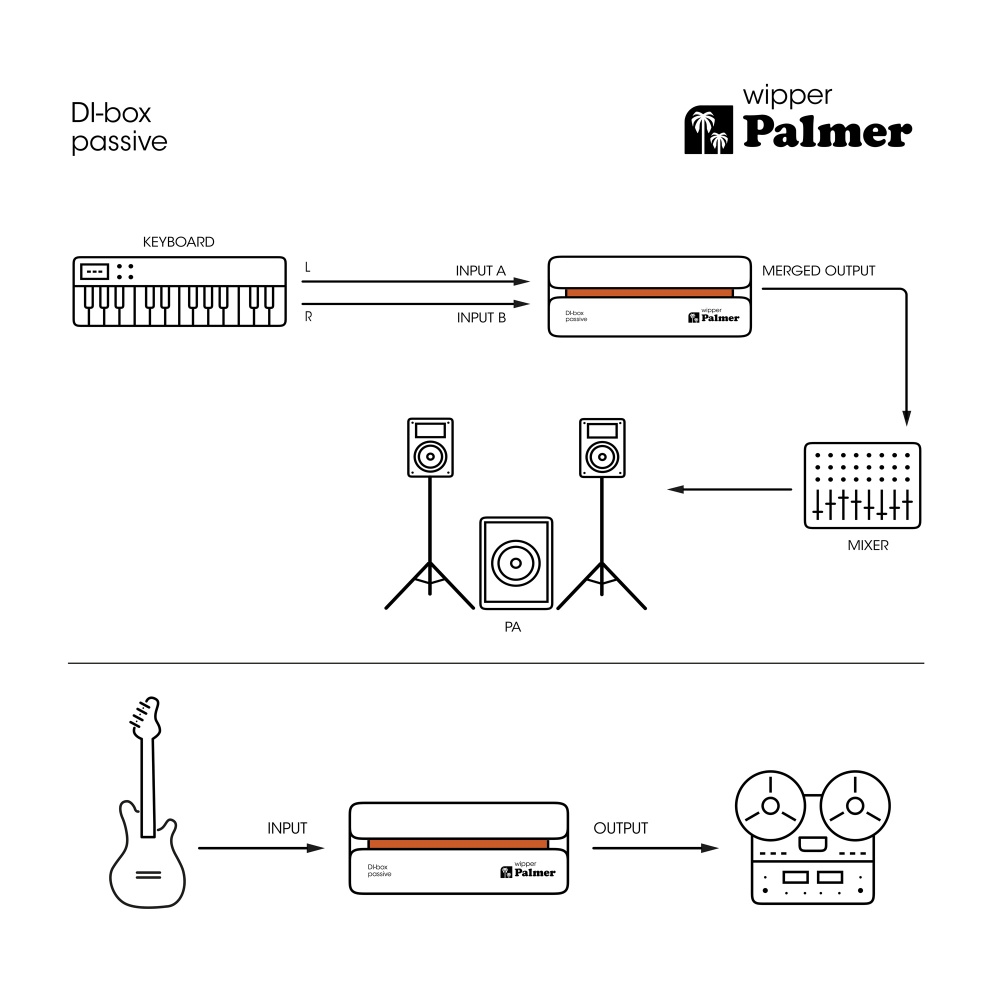

  • THRU-output jack can also be used as second input to sum two input signals
  • Pure and unaltered low-noise audio
  • Handles even high-level inputs without distortion

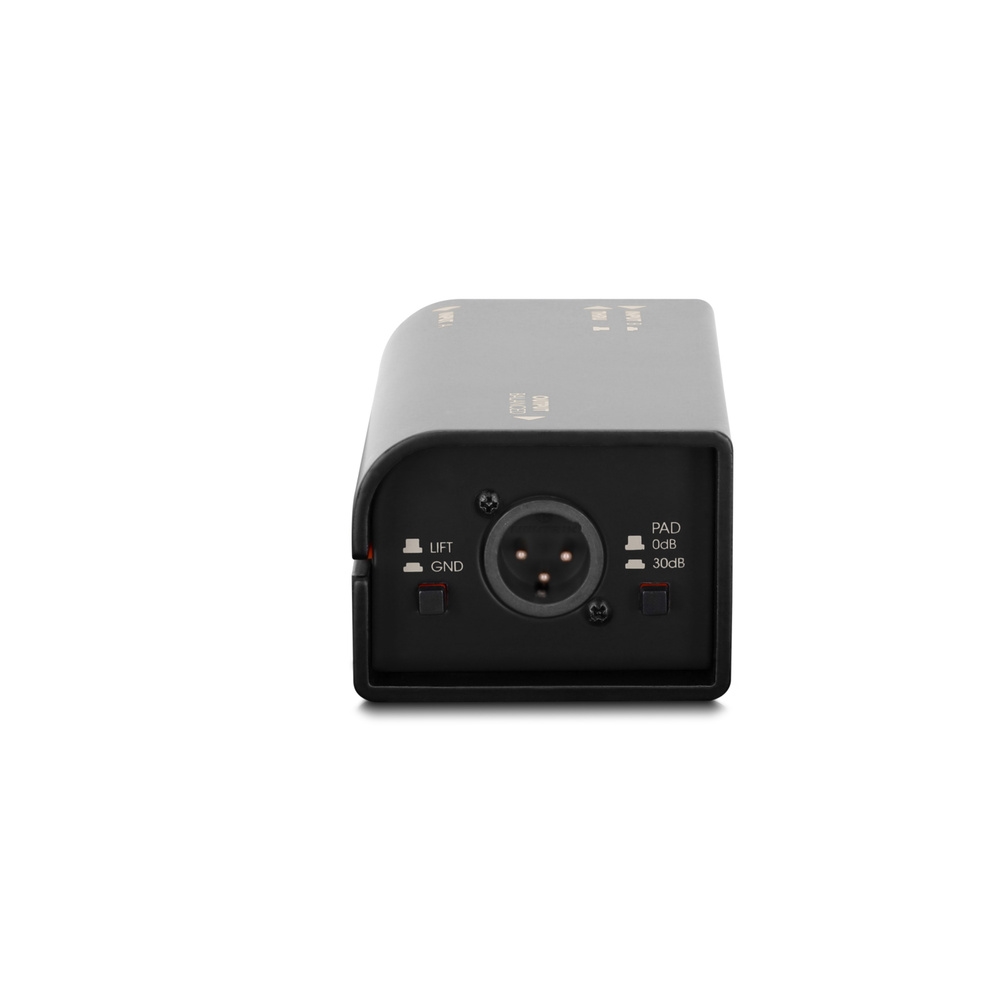

  • Switchable 30 dB pad for extremely high input levels (e.g. amplifier output)
  • Solid casing made of aluminium and steel

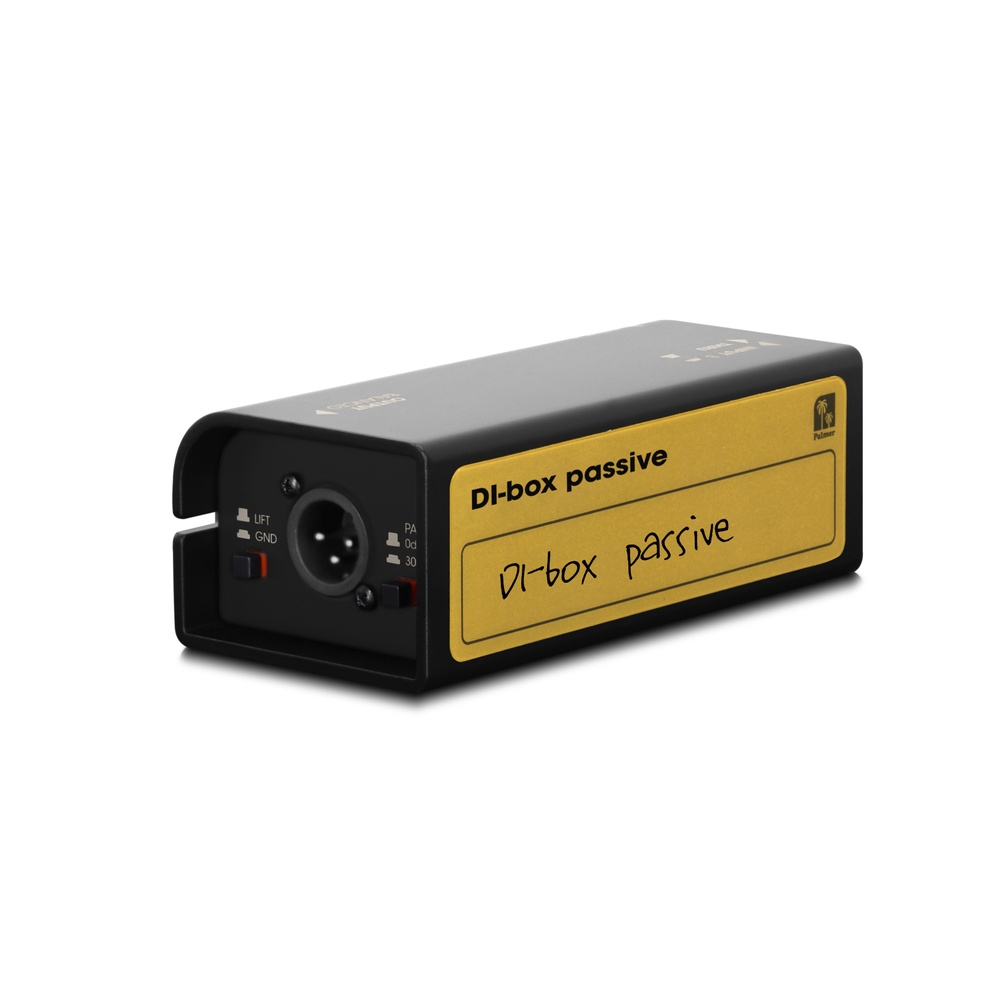

  • Incl. rewritable tour label for attachment onto the back of the wipper
  • Engineered in Germany


Product typeDI box
Typepassive
Channels1
Transformer isolatedyes
Inputs2
Input typeunbalanced
Input connectors6.3 mm jack
Outputs1
Output typebalanced
Output connectorsXLR
THRU outputs per channel1
Input attenuation (Pad)0 / 30 dB
Ground lift switchYes
Additional Featuresmono merge
HousingAluminium continuous casting
Dimensions (W x H x D)50 x 140 x 68 mm
Weight0,43 kg
Ambient temperature (in operation)- 20 - 70 °C
Relative Humidity< 80% (non-condensing)
Accessories (included)Inscription label (tour label)
Accessories (included)rubber feet

Audio

Max. input level (< 1% THD, 20 Hz)+24 dBu
Max. input level (< 1% THD, 1 kHz)+32 dBu
Frequency response (±0,2dB, relative 1kHz)10 Hz - 60 kHz
Input impedance (1 kHz, Setting: 0 dB Pad, THRU)47 kOhm
Output impedance (1 kHz, Setting : 0 dB Pad, THRU)33 Ohm
THD (30 Hz, +4 dBu, unity, unweighted)< 0,02 %
THD (1 kHz, +4 dBu, unity, unweighted)< 0,0007 %
IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu)< 0,002 %
Transformer ratio10 : 1
Varenr.: A-PWIPPER
