Impedance (Z) | > 1,000 Ω |
Transmission method | - |
Frequency range | 1,800-20,000 Hz |
Resonant frequency (fs) | - |
Rec. crossov. frequ. (fmax.) (12 dB/oct.) | - |
Power rating | - |
Peak music power output | 225 W (8 Ω system) 115 W (4 Ω system) |
Sensitivity | 93 dB/W/m |
Max. rated SPL | - |
Max. voltage | ∼ 30 V |
Radiation angle, horizontal | - |
Radiation angle, vertical | - |
Suspension compl. (Cms) | - |
Moving mass (Mms) | - |
Mech. Q factor (Qms) | - |
Electr. Q factor (Qes) | - |
Total Q factor (Qts) | - |
Equivalent volume (Vas) | - |
DC resistance (Re) | - |
Force factor (BxL) | - |
Voice coil induct. (Le) | - |
Voice coil diameter | - |
Voice coil former | - |
Linear excursion (XMAX) | - |
Eff. cone area (Sd) | - |
Magnet weight | - |
Magnet diameter | - |
Mounting cutout | Ø 88 mm |
Mounting depth | 80 mm |
Mounting hole diameter | - |
Hole spacing X-axis | 92 mm |
Hole spacing Y-axis | 92 mm |

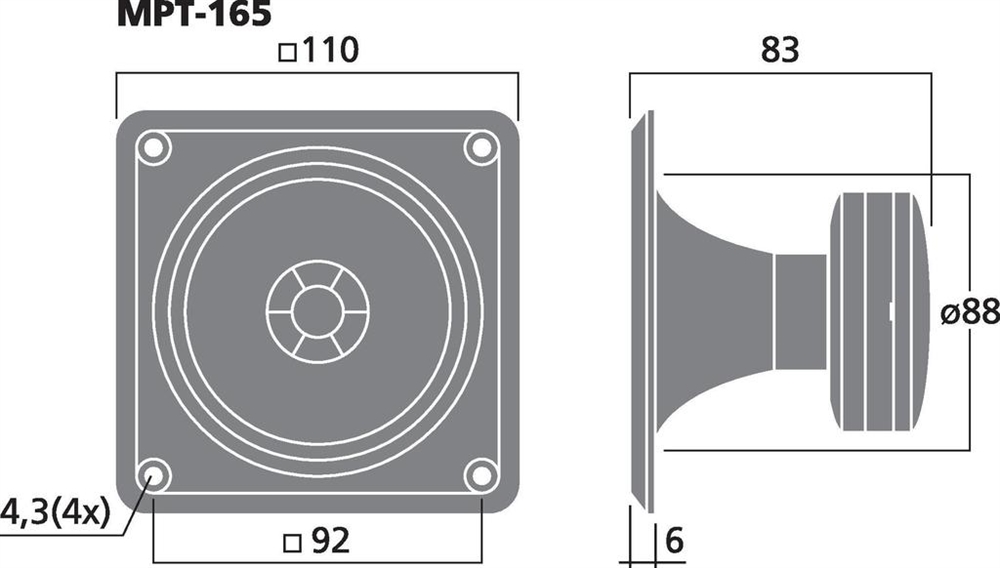

Dimensions | 110 x 110 x 83 mm |
Outside diameter | - |
Width | 110 mm |
Height | 110 mm |
Depth | 83 mm |
Protective class | - |
Admiss. ambient temp. | 0-40 °C |
Weight | 0.083 kg |
Packing unit | 1 |
Type of speaker | - |
