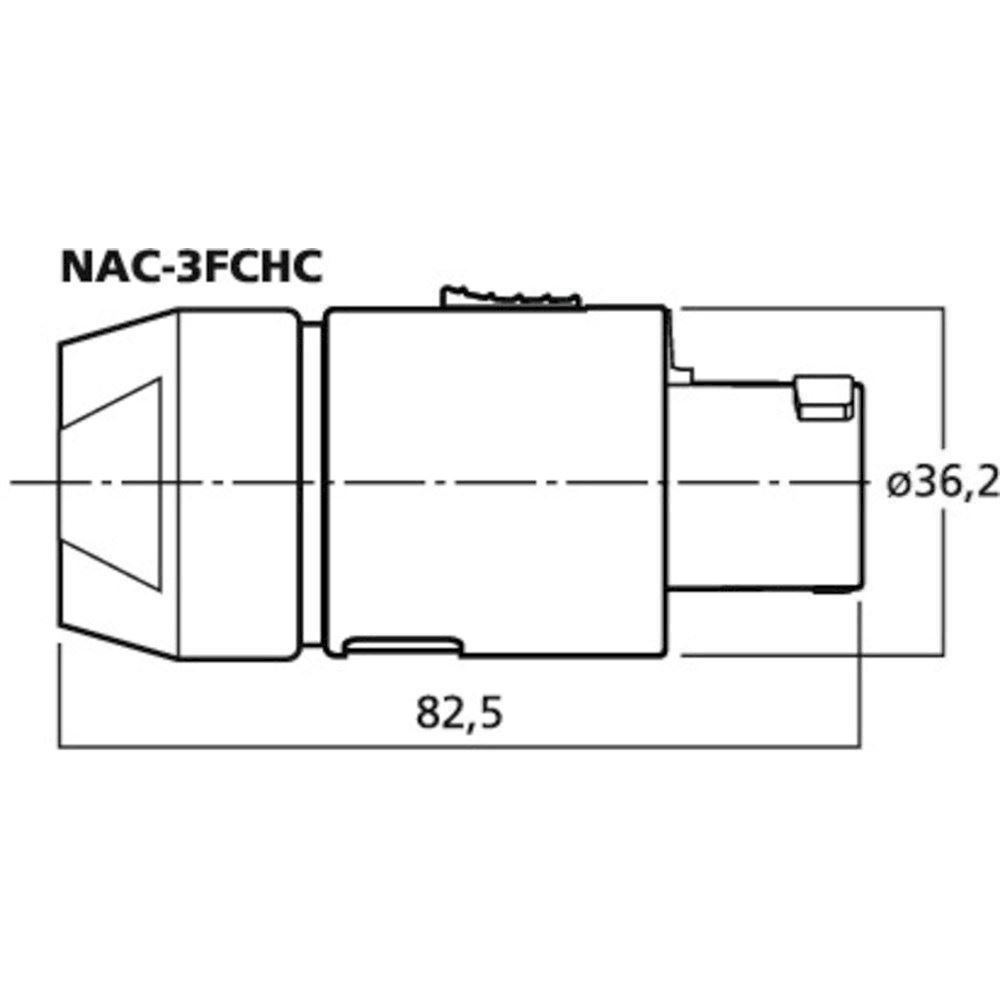

PowerCon t/∼ 250 V/32 A - NAC-3FCHC

• På lager
• På lager, 2-4 dage
• Bedømmelse for PowerCon t/∼ 250 V/32 A - NAC-3FCHC

  Produktet er endnu ikke bedømt

•
  205,00DKK ved 1 stk.

Vis uden moms

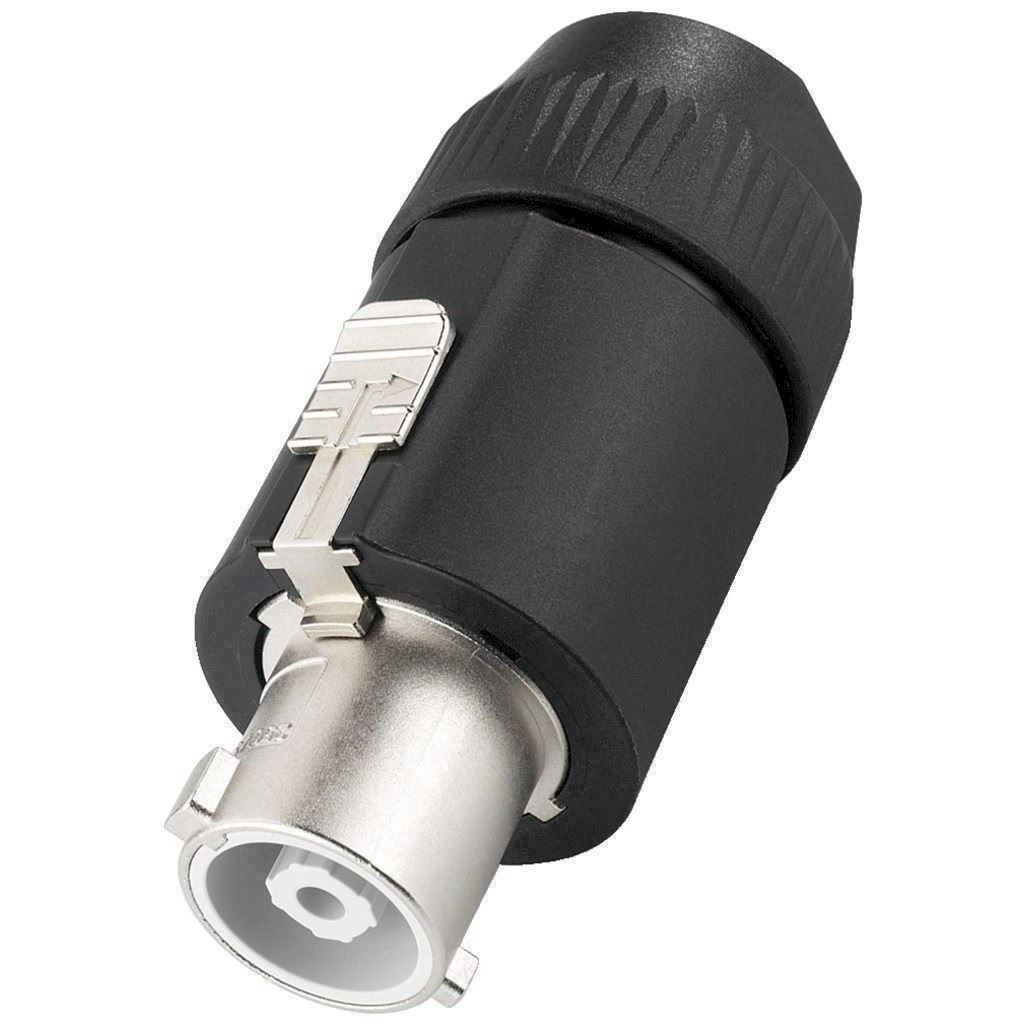

NEUTRIK POWERCON plug

• For mains connection with a high power rating of up to ∼ 250 V/32 A
• Screw connections for ground, phase and neutral conductor
• For cable cores: 2.5-6 mm²
• Robust version with latching device and cable inlet with self-adjusting clamps



Type	plug
Type	-
Quantity	1
Features	latching device
Colour/colour coding	black
Power rating	∼ 250 V/32 A
Insulating resistance	> 10 GΩ
Dielectric strength	DC current  4 kV/∼ 2.8 kV
Certification	VDE, UL, cUL and JET
Pole number	2+PE
Cable inlet	8-20 mm
Connection	screw terminals
Strain relief	yes
Cable bending protection	-
Stereo	-
Mono	-
Switches	-
Material	silver-plated bronze contacts, plastic
Central fixing	-
Admiss. ambient temp.	-25 °C to +70°C
Dimensions	-
Diameter	-
Length	-
Weight	72 g
Other features	-

Varenr.: 348380
