PowerCon t/230V - NAC3MX-W-TOP

NEUTRIK POWERCON True1 TOP Connectors

Complies with safety requirements of IEC 60320, VDE-certified
For mains connection up to &acd; 250 V/16 A
Connections for ground, phase and neutral conductor, connector can be connected under load
Robust version with latching device and cable inlet with self-adjusting clamps (plug and inline jack only)
Self-extinguishing according to UL 94V-0
Protection classs IP65 (NAC3FX-W-TOP and NAC3MX-W-TOP)

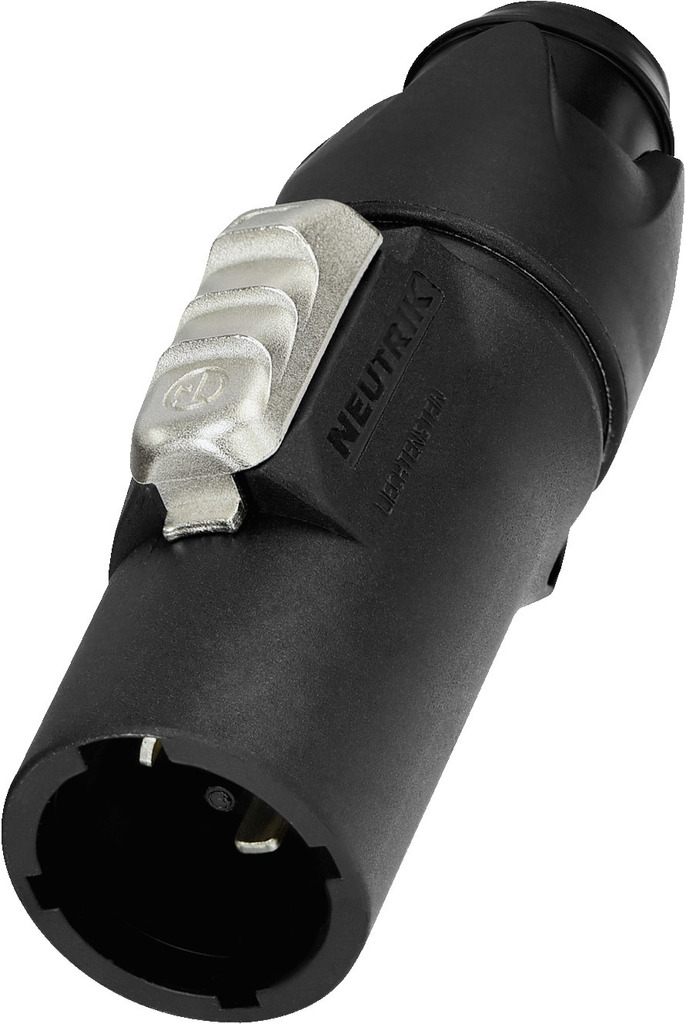

NEUTRIK POWERCON True1 TOP plug

Complies with safety requirements of IEC 60320, VDE-certified
For mains connection up to &acd; 250 V/16 A
Connections for ground, phase and neutral conductor, connector can be connected under load
Robust version with latching device and cable inlet with self-adjusting clamps
Self-extinguishing according to UL 94V-0
Protection classs IP65

Description	plug
Type	NEUTRIK POWERCON TOP
Quantity	1
Features	latching device
Colour/colour coding	black
Power rating	&acd; 250 V/16 A
Insulating resistance	> 100 MΩ
Dielectric strength	DC 4 kV/&acd; 2.8 kV
Certification	UL, VDE
Pole number	2+PE
Cable inlet	6-12 mm
Suitable cable cross section	-
Connection	-
Strain relief	yes
Cable bending protection	-
Stereo	-
Mono	-
Switches	-
Material	silver-plated bronze contacts, plastic
Central fixing	-
Contact type	-
No. of contacts	-
Contact width	-
Contact distance	-
Admiss. ambient temp.	-30-+80 °C
Dimensions	Ø 26.5 mm x 77-80 mm
Diameter	-
Length	-
Weight	32 g
Other features	-

Varenr.: 034166
