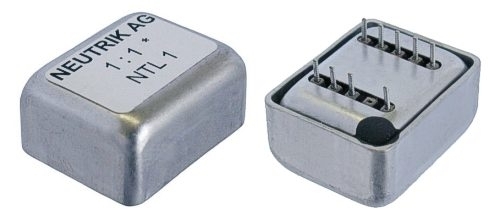

NTL 1 Linietransformator 1:1
Professional studio transformer 1:1 for PCB mount, fully shielded.
Applications: line input
General Description
NTL1 is a line transformer intended to balance amplifier outputs for line driving up to
+24 dBm.
NTM1
and NTM4 are input transformers intended to match mic-level lines to
active micinput amplifiers. Existing center tap for phantom powering.
All types are designed for direct PCB mounting and are featuring electrostatic shielding
between windings and heavy Mu-metal shielding/housing.
Electrical Data
Parameter Unit NTL1 NTM1 NTM4
Turns ratio (prim:sec) 1 : 1 ± 5% 1 : 1 ± 10% 1 : 4 ± 10%
Winding D.C. resistance
- primary
- secondary
?
1100 ± 5%
1350 ± 5%
85 ± 3%
105 ± 5%
105 ± 3%
1250 ± 5%
Primary inductance at 30 Hz H > 150 > 8 > 8
Typical source impedance ? 600 200 200
Max. input voltage for 1% THD at 30 Hz
- with load 600 ?:
- with load 2 k?:
- with load 10 k?:
- with load 50 k?:
V rms
6
5
---
---
1.2
0.9
---
---
---
---
1.2
0.8
Frequency response 20 Hz 20 kHz ref.
1kHz
dB +/- 1 +/- 1 +/- 1
Electric strength test voltage * V ac 500 500 500
*: between windings (W1W2) and between windings and shielding/housing (W1,W2SH)
