Profilkasse - AH-62 - MONACOR

• På lager
• På lager, 2-4 dage
• Bedømmelse for Profilkasse - AH-62 - MONACOR

  Produktet er endnu ikke bedømt

•
  151,00DKK ved 1 stk.

Vis uden moms

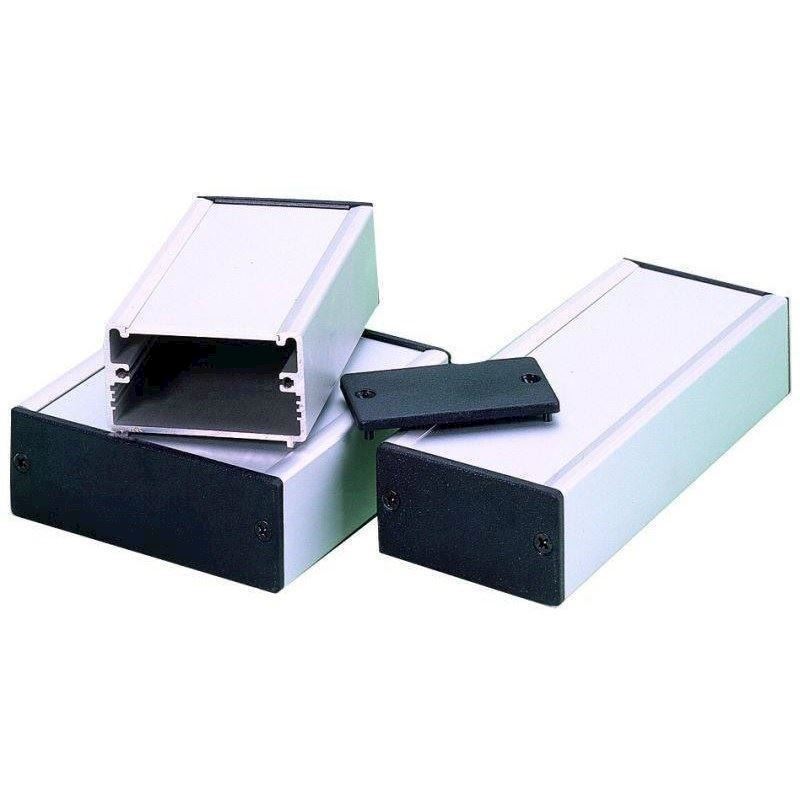

Series of utility cases.

Series of Utility Cases

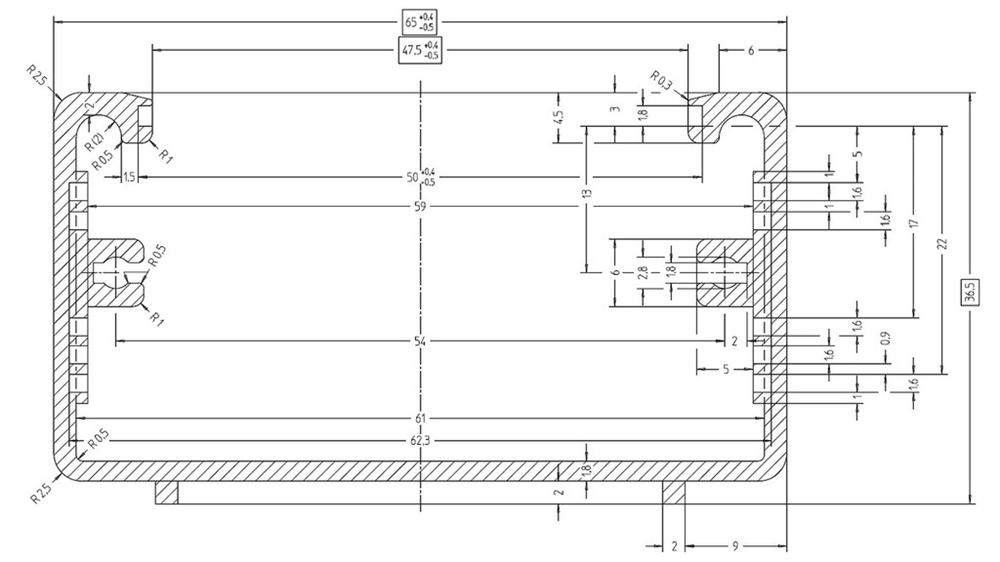

• Made of extruded profile with insertion grooves for printed circuits in different heights (12/17/22 mm distance to the front panel)
• Exchangeable front panel with protective foil of 1.5 mm aluminium plate
• Mat black ABS plastic side covers
• Material surface is anodised and mat etched or black (SW)
• Total height: 36.5 mm



Intended use	case
Material	aluminium sheet, ABS plastic
Dimensions	65 x 36.5 x 167 mm
Width	65 mm
Height	36.5 mm
Length	167 mm
PCB dimensions	62 x 160 mm
Weight	189 g

Varenr.: 330090
