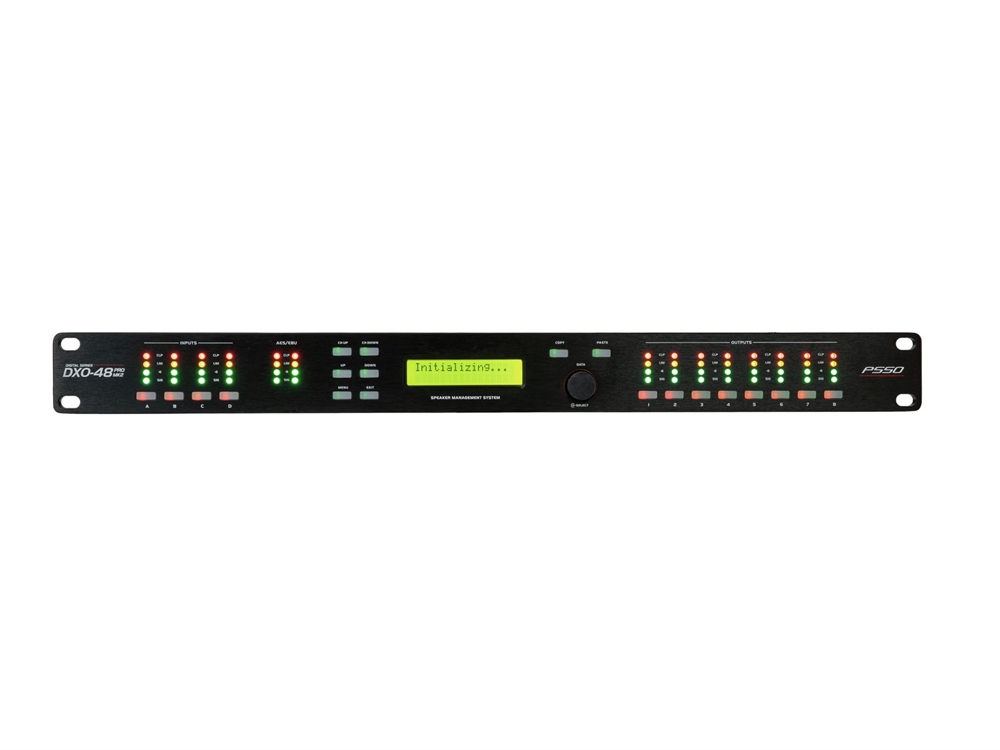

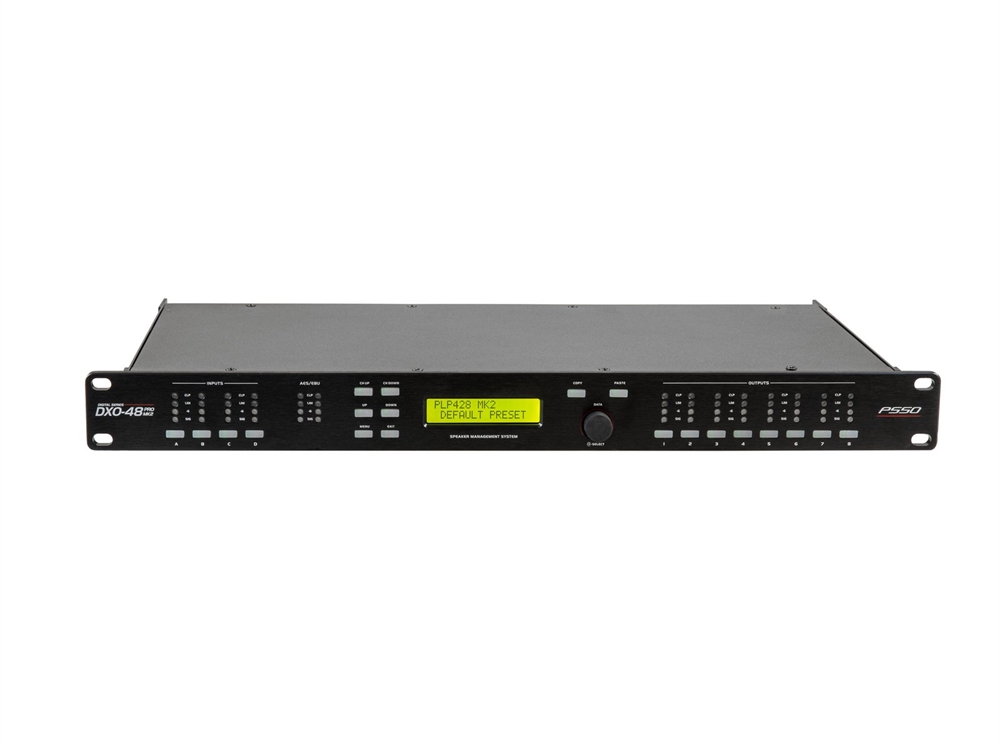

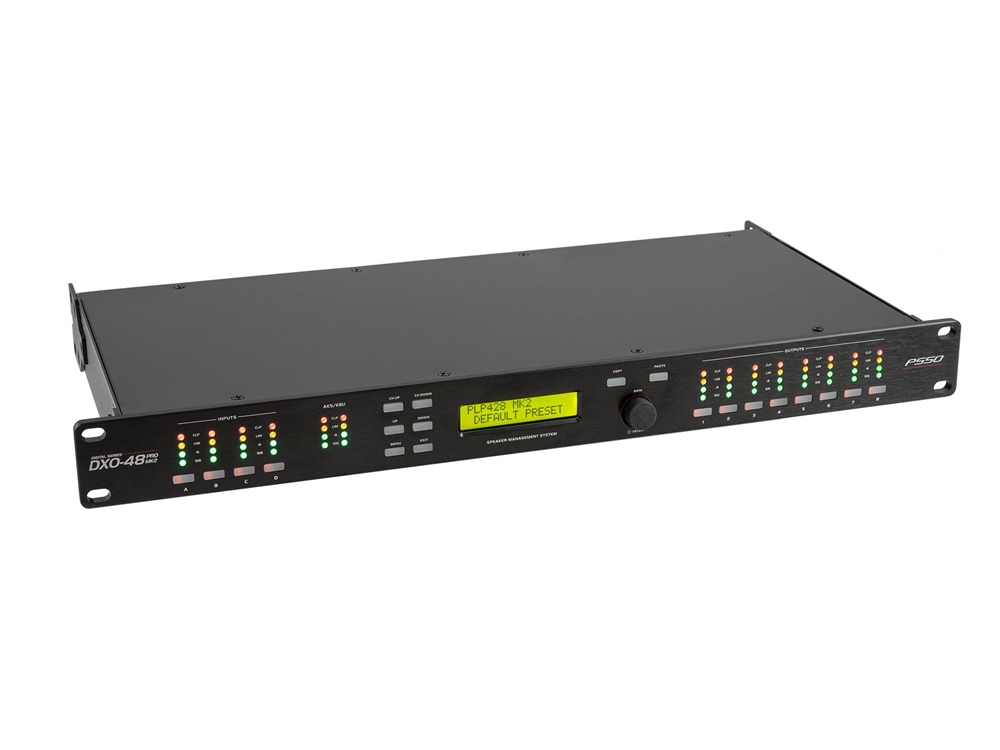

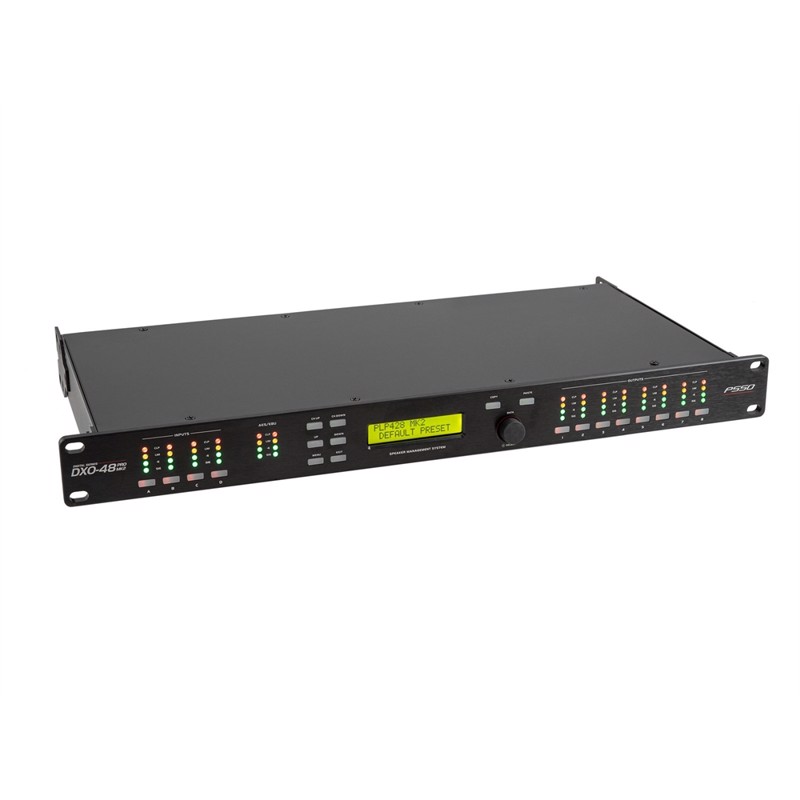

PSSO DXO-48 PRO MK2 Digital Controller

På lager
På lager, 3-5 hverdage
Bedømmelse for PSSO DXO-48 PRO MK2 Digital Controller
Produktet er endnu ikke bedømt

8.199,00DKK ved 1 stk.

Digital speaker management system with real-time network communication, 4 inputs and 8 outputs

PSSO DXO-48 PRO MK2 Digital Controller

Digital speaker management system with real-time network communication, 4 inputs and 8 outputs

Digital network speaker management system with 64-bit processing
Premium components ensure excellent sound-features
Flexible routing configurations for all standard mono and stereo output operating modes
4 analog inputs and 1digital AES/EBU interface (XLR)
8 analog outputs (XLR)
10-band parametric EQ per input and output
Parametric filters can be set as Bell, High Shelf, Low Shelf, Notch, Allpass, Band Pass, High Pass, Low Pass
Active crossover with Bessel, Butterworth and Linkwitz-Riley filter with slopes up to 24 dB/octave
Additionally up to 48 dB/octave for all outputs with Linkwitz-Riley filter
Real-time analyzer function (RTA)
FIR filters with 8 x 384 taps
The intelligent software for PC and Mac allows convenient control with a computer
Full configuration and real-time network communication via the built-in Ethernet interface
Presets are easy to store, transfer and manage
Up to 100 user presets storable in the device via software
Control of all functions also possible via the controls at the front panel
Input sensitivity digitally adjustable
Inputs and outputs with 4-digit VU meter
Mute switch with LED indicator per input and output
Up to 2000 ms signal delay adjustable for the inputs and 50 ms for the outputs
Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
4-band compressor for all inputs and outputs
Switchable phase
Lock function for prevents undesired changes to settings
2 Ethernet ports for easy wiring
Digital signal processor FIR Filter
Controlling by DXO-Control App
Monochrome LCD display
The device can be connected via RJ-45 (F) mounting version to the PC in connection with DXO Software
The firmware can be updated via the PC connection
(19") 48.3 cm rack installation 1 U
Compatible with Win XP, Win Vista, Win 7, Win 10, OS X 10,5 or better

Package contents

1 x controller, 1 x power cord, 4 x feet

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	10,00 W
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:	10 - 40000 Hz
THD:	<0,005 % at 1 kHz
Network connection:	Protocol: Ethernet TCP/IP via 2x RJ-45 (F) mounting version
DSP:	Digital signal processor FIR Filter
Crossover frequency:	20-20000 Hz
Impedance:	Input: 10,5 kOhm , unbal. Input: 21 kOhm , bal. Input: XLR (AES/EBU) 110 Ohm Output: 50 Ohm
Gain:	Output: -50 dB to +12 dB
Filter:	Linkwitz-Riley; Butterworth; Bessel; 6db/oct; 12db/oct; 18db/oct; 24db/oct; 48db/Okt
Delay:	Input: 0 - 2000 ms
Dynamic range:	Input: 125 dB Output: 120 dB
Control:	DXO-Control App
Sample rate:	96 kHz
Display type:	Monochrome LCD display

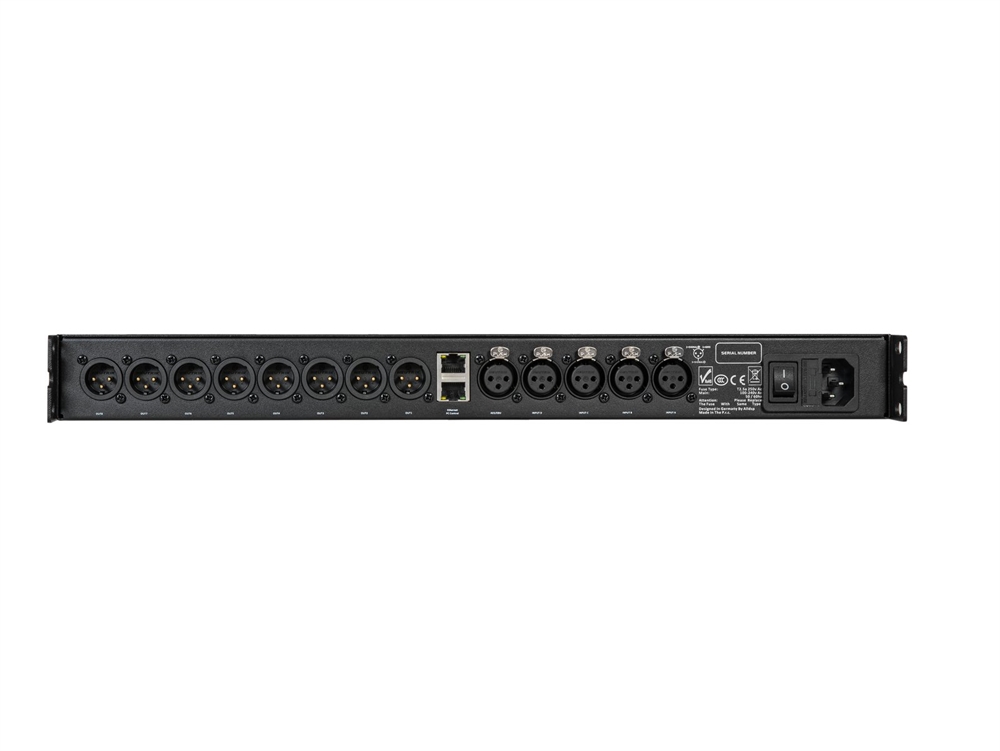

Connections:	Input: line via 4 x 3-pin XLR Output: line via 8 x 3-pin XLR Input: XLR (AES/EBU) via 1 x 3-pin XLR 2 x RJ-45 (F) mounting version
Max. level:	Input: +24 dBu Output: +12 dBu
PC connect:	DXO Software via RJ-45 (F) mounting version, firmware can be updated
Housing design:	(19") 48.3 cm rack installation 1 U
Dimensions:	Width: 48,3 cm Depth: 18,0 cm Height: 4,45 cm
Weight:	2,96 kg
Operating system:	Win XP, Win Vista, Win 7, Win 10, OS X 10,5 or better

Varenr.: E-10356365
