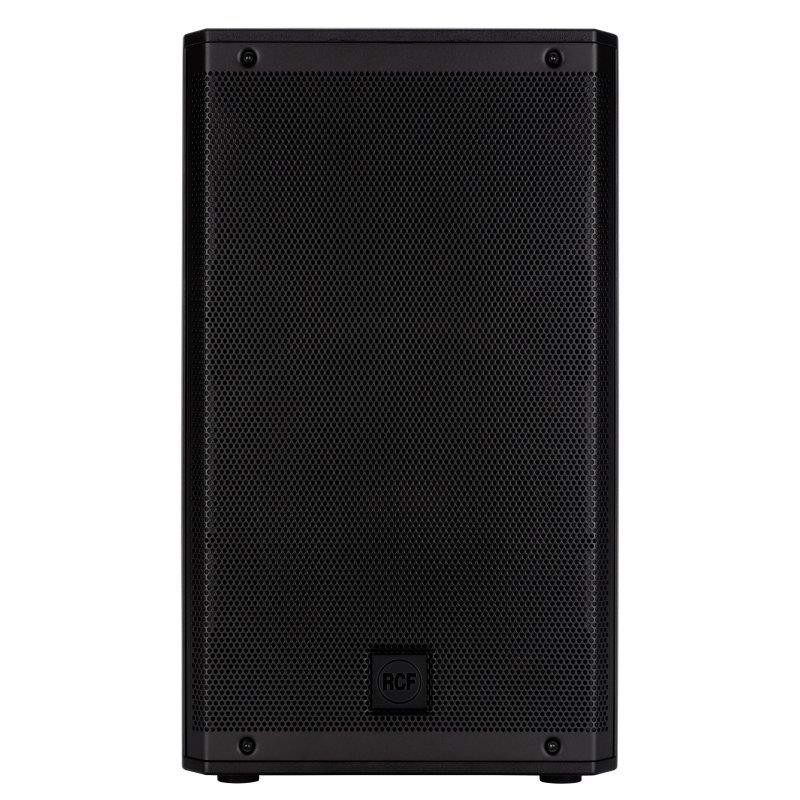

RCF ART910-A aktiv højttaler
ART 9-serien er en udvikling af ART-højttalerkonceptet og en revolution inden for bærbar lyd. Med RCF-byggekvalitet og fyldt med førsteklasses funktioner er det den mest alsidige højttaler til professionelle applikationer - på farten, på scenen og er også velegnet til fast installation. Det nye bi-forstærkede 2.100 W elektroakustiske design giver imponerende lydtryksniveauer (SPL), selv når det bruges i udendørs omgivelser og lange afstande, hvilket giver fantastisk lydkvalitet.
Up to 130 dB Sound Pressure Level
2100W Class-D Bi-Amplification
50-20000 Hz linear frequency response
1.75" Compression Driver
10" Woofer
FiRPHASE zero degrees phase technology
Bass Motion Control woofer excursion management
ART 910-A is masterfully engineered to deliver stellar audio performance and versatility for intensive audio applications. The combination of a 1.75" compression driver, 10" woofer, two-channel 2100W amplifier, and the constant directivity True Resistive Waveguide produces coherent 100° x 60° coverage for the listening area with up to 130 dB SPL, distortion-free sound. Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown, the ART 910-A packs high-performance and reliability in a compact enclosure. Designed to be the most flexible loudspeaker in its class, it also features multiple rigging points for fixed installation. Merging RCF proprietary FiRPHASE and Bass Motion Control (BMC) DSP processing, perfectly tuned for each model, audiences will experience absolute clarity and deep, powerful bass response. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.
Acoustical specifications
FREQUENCY RESPONSE: 50 Hz ÷ 20000 Hz
MAX SPL @ 1M: 130 dB
HORIZONTAL COVERAGE ANGLE: 100°
VERTICAL COVERAGE ANGLE: 60°
Transducers
COMPRESSION DRIVER: 1 x 1.0'', 1.75'' v.c
WOOFER: 10'', 2.5'' v.c

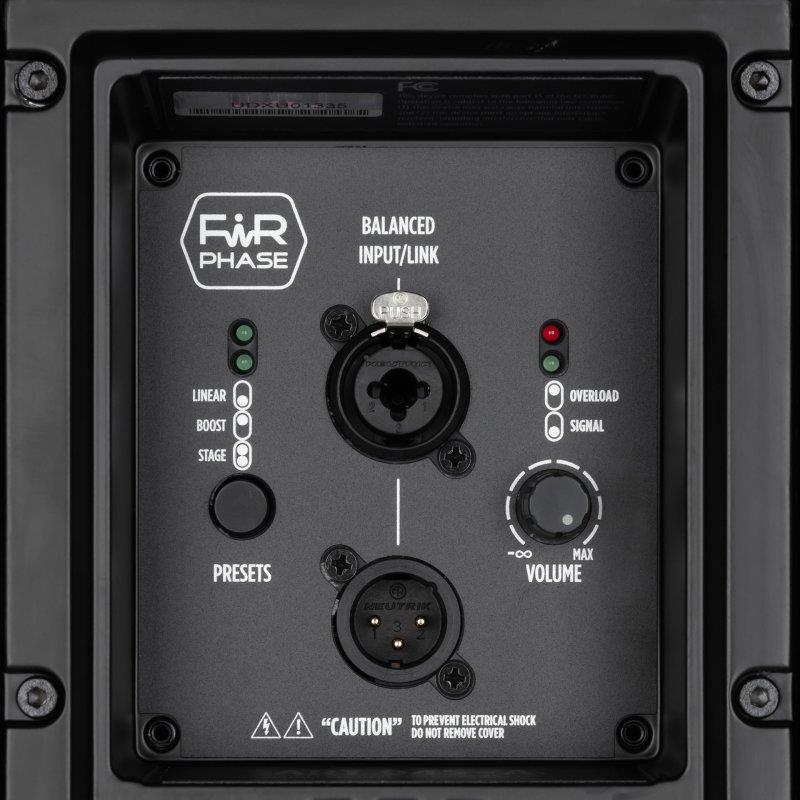

Input/Output section
INPUT SIGNAL: bal/unbal
INPUT CONNECTORS: XLR, Jack
OUTPUT CONNECTORS: XLR
INPUT SENSITIVITY: -2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES: 1800 Hz
PROTECTIONS: Thermal, RMS
LIMITER: Soft Limiter
CONTROLS: Linear, Boost, Stage, Volume
Power section
TOTAL POWER: 2100 W Peak
HIGH FREQUENCIES: 700 W Peak
LOW FREQUENCIES: 1400 W Peak
COOLING: Convection
CONNECTIONS: VDE
Standard compliance
CE MARKING: Yes
Physical specifications
CABINET/CASE MATERIAL: PP Composite
HARDWARE: 1 x M10 Top and Bottom

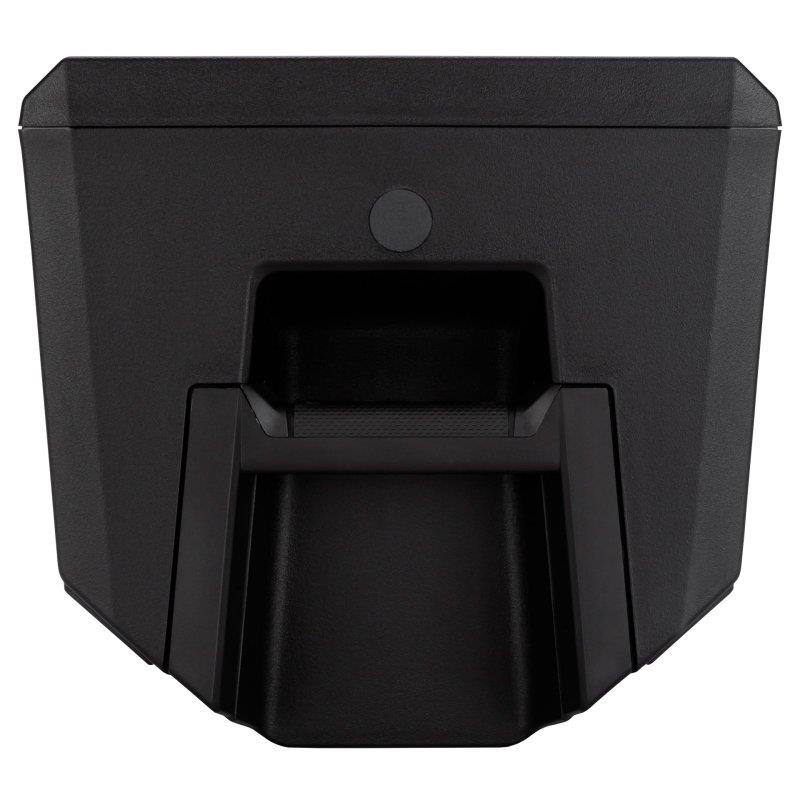

HANDLES: 1 Top

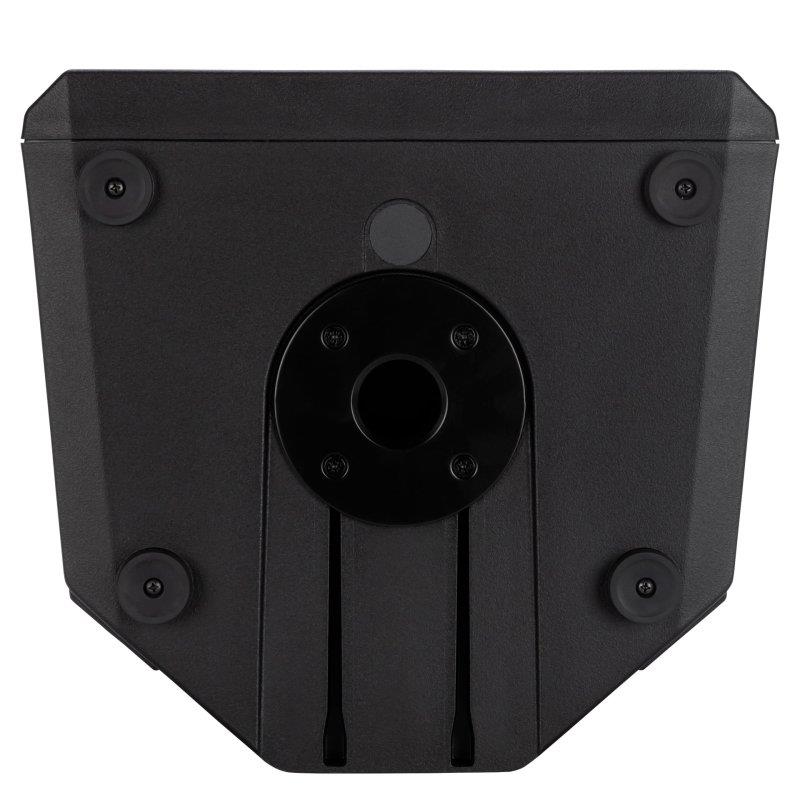

POLE MOUNT/CAP: Yes
GRILLE: Steel
COLOR: Black
Size
HEIGHT: 572 mm
WIDTH: 330 mm
DEPTH: 310 mm
WEIGHT: 15.8 kg
Shipping informations
PACKAGE HEIGHT: 616 mm
PACKAGE WIDTH: 370 mm
PACKAGE DEPTH: 390 mm
PACKAGE WEIGHT: 17.5 kg
