RCF ART935-A aktiv højttaler
ART 935-A is masterfully engineered to deliver stellar audio performance and versatility for intensive audio applications. The combination of a 3" titanium/neodymium compression driver, 15" woofer, two-channel 2100W amplifier, and the constant directivity True Resistive Waveguide produces coherent 100° x 60° coverage for the listening area with up to 133 dB SPL, distortion-free sound. Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown, the ART 935-A packs high-performance and reliability in a compact enclosure. Designed to be the most flexible loudspeaker in its class, it also features multiple rigging points for fixed installation. Merging RCF proprietary FiRPHASE and Bass Motion Control DSP processing, perfectly tuned for each model, the audience will experience absolute clarity and deep, powerful bass response. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.
Up to 133 dB Sound Pressure Level
2100W Class-D Bi-Amplification
45-20000 Hz linear frequency response
3" Titanium/Neodymium Compression Driver
15" Woofer
FiRPHASE zero degrees phase technology
Bass Motion Control woofer excursion management
Acoustical specifications
FREQUENCY RESPONSE: 45 Hz ÷ 20000 Hz
MAX SPL @ 1M: 133 db
HORIZONTAL COVERAGE ANGLE: 100°
VERTICAL COVERAGE ANGLE: 60°
Transducers
COMPRESSION DRIVER: 1 x 1.4'' neo, 3.0'' v.c
WOOFER: 15'', 3.0'' v.c

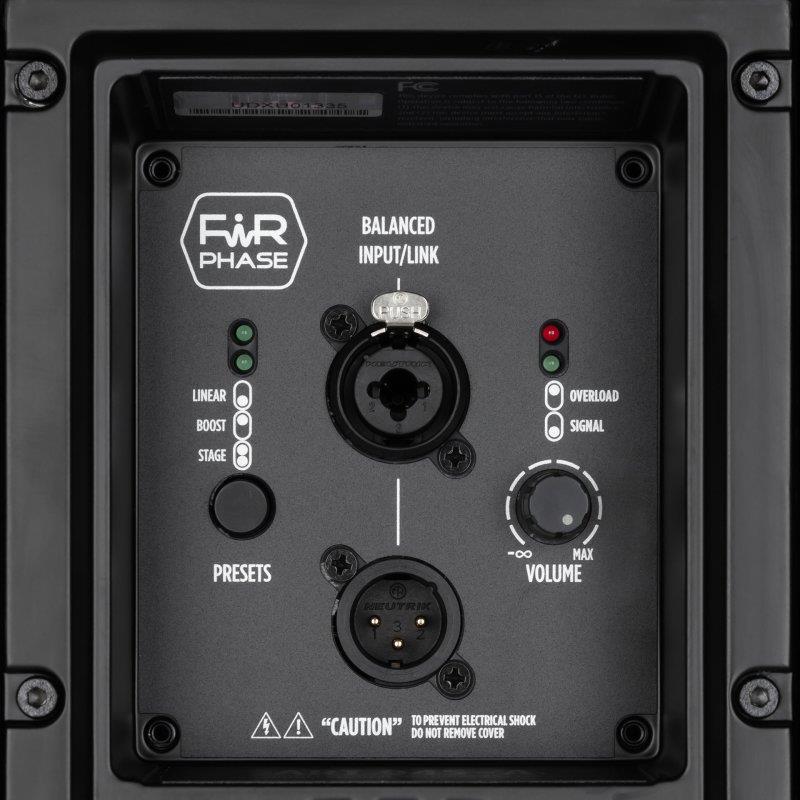

Input/Output section
INPUT SIGNAL: bal/unbal
INPUT CONNECTORS: XLR, Jack
OUTPUT CONNECTORS: XLR
INPUT SENSITIVITY: -2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES: 800Hz
PROTECTIONS: Thermal, RMS
LIMITER: Soft Limiter
CONTROLS: Linear, Boost, Stage, Volume
Power section
TOTAL POWER: 2100 W Peak
HIGH FREQUENCIES: 700 W Peak
LOW FREQUENCIES: 1400 W Peak
COOLING: Convection
CONNECTIONS: VDE
Standard compliance
CE MARKING: Yes
Physical specifications
CABINET/CASE MATERIAL: PP Composite
HARDWARE: 1 x M10 Top, 1 x M10 each side
HANDLES: 1 Top , 1 each side

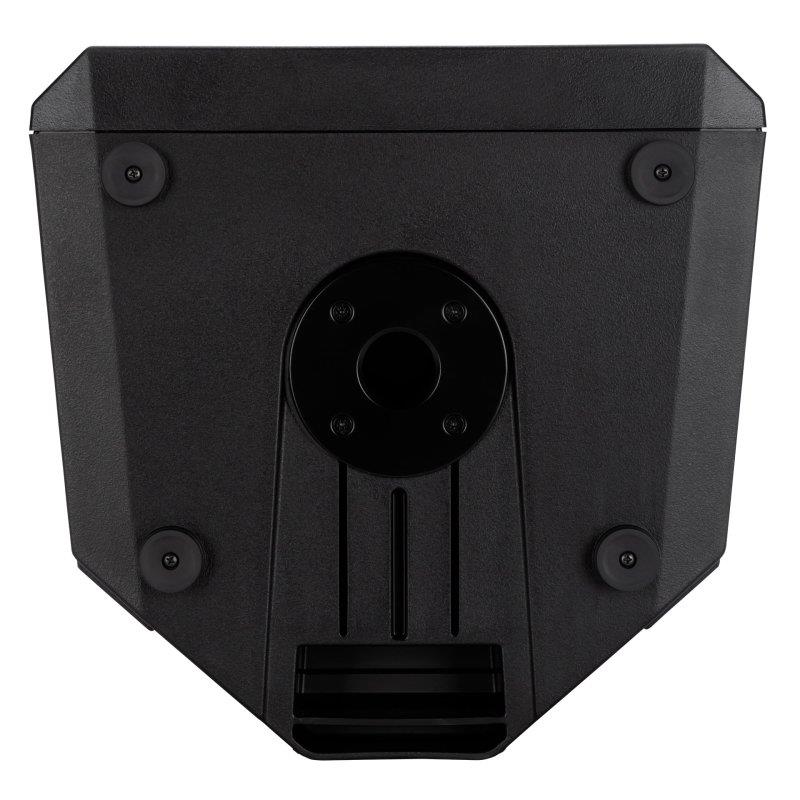

POLE MOUNT/CAP: Yes
GRILLE: Steel
COLOR: Black
Size
HEIGHT: 717 mm
WIDTH: 415 mm
DEPTH: 410 mm
WEIGHT: 24.2 kg
Shipping informations
PACKAGE HEIGHT: 760 mm
PACKAGE WIDTH: 475 mm
PACKAGE DEPTH: 470 mm
PACKAGE WEIGHT: 26.4 kg
