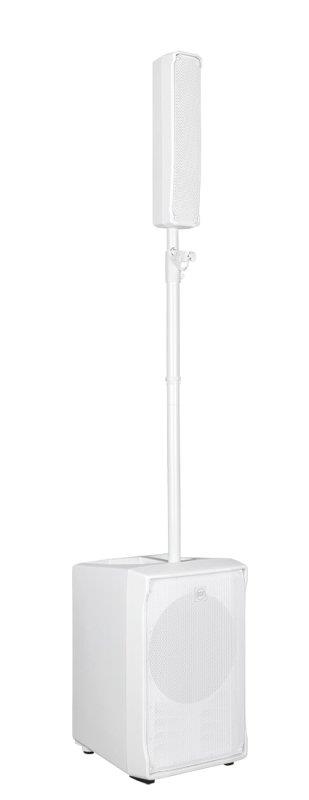

RCF EVOX JMIX8 højttaler system 1 aktiv Sub/1 passiv top, Hvid

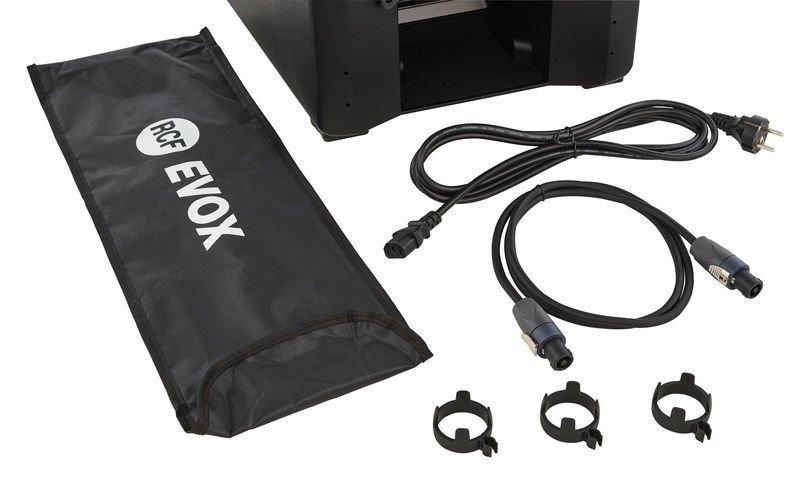

Letvægts højttaler system fra EVOX til både solo musikeren, band eller AV brug. Systemet har en fantastisk lyd, som spiller alle spillesteder op. Størrelsen og vægten gør at det let kan smides på bagsædet eller i et baggagerum, selv i den mindste bil. Digital-aktivt højttalersystem med 8 stk 2" i passiv top kasse, samt 12" Sub, samlet effekt 1400 W eller 128 dB. Let 23,8 kg transportabelt system. Afstandsrør og kabel medfølger.

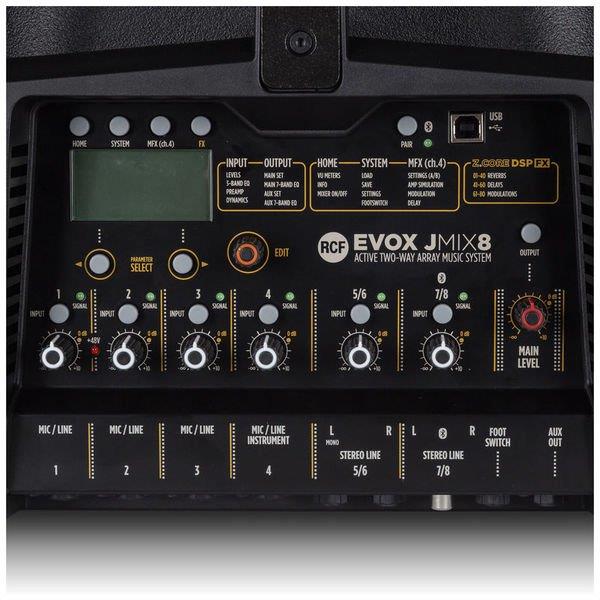

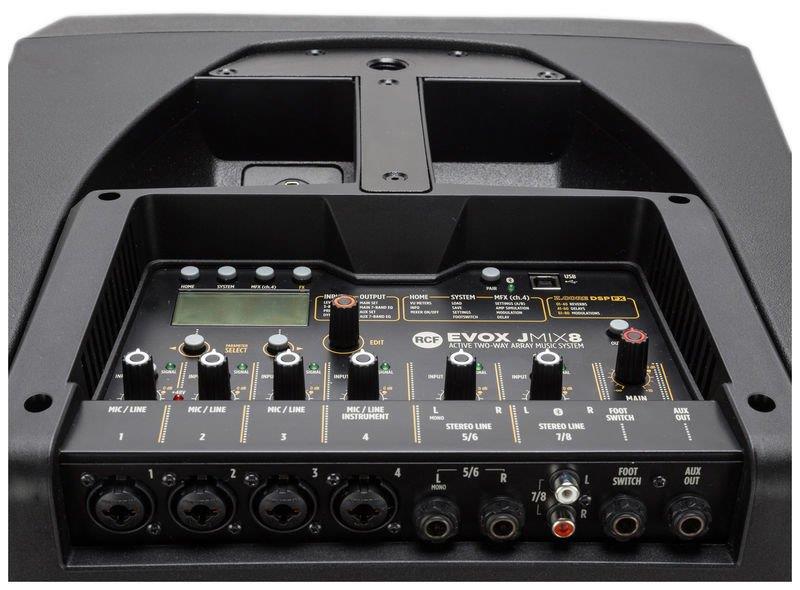

Indbygget 8 kanals digital mixer hvoraf 4 mikrofon input.
DSP effektprocessor
Bluetooth audio
Kan tilsluttes fodkontakt.
Remote med RCF Evox app via Bluetooth
Aux output
128 dB Max SPL
1400 Watt 2-way peak power
DSP Processing with FiRPHASE
12" woofer, high power 2.5" voice coil
8 x 2" ultra compact fullrange 1.0" voice coil
2350x350x450 mm 92.5x13.77x17.71 in (HxWxD)
23,8/52.5 kg/lbs
Electronic specifications
FREQUENCY RESPONSE: 20 Hz ÷ 20 Hz
THD+N, 20DB GAIN, 0DBU OUT: 0.004
Processing
PROCESSING CHANNELS: 8
SIGNAL PROCESSING: 32 Bit Floating Point
A/D-D/A CONVERSION: 24 Bit @ 48.0 kHz
DYNAMIC RANGE: 108
Inputs
MIC: 4
REMOTE CONTROLLED STORABLE GAIN: Yes
GAIN RANGE: 0÷45 dB
INPUT NOISE LEVEL: -114 dBu A-Weighted
MIC INPUTS IMPEDANCE: 3 kohm
LOW CUT: 20 Hz ÷ 1000 dB
PHANTOM POWER +48V: Yes
MONO LINE: 4
GAIN SELECTION: 0 dB ÷ 45 dB
LINE INPUT IMPEDANCE: 11 kohm
HI-Z LINE INPUTS: 1
HI-Z LINE INPUTS IMPEDANCE: 1 Mohm
A/D DYNAMIC RANGE: 108 dB
STEREO LINE: 2
GAIN SELECTION: 0 dB ÷ 45 dB
STEREO LINE INPUT IMPEDENCE (KOHM): 11 kohm
GAIN SELECTION: 0 dB
Outputs
AUX SEND: 1
AUX OUTPUT: 1
Outputs specifications
MAIN OUT IMPEDANCE: 150 ohm
MAIN OUT LEVEL: 19 dBu
AUX OUT IMPEDANCE: 150 ohm
AUX OUT LEVEL: 19 dBu
D/A DYNAMIC RANGE: 1084 dB
Compressors
4 mono (6 preset) RCF COMPRESSORS EQ
INPUT CHANNELS EQ: 1 Semi Parametric / 2 Shelving
DESCRIPTION: 3 Band EQ: High and Low band shelving, Mid Band with sweepable frequency Graphic 7 Band EQ on Main Mix and AUX send
Auxiliary sends
AUX: 1 PRE/POST
FX POST: 1
Internal Effects
SEND EFFECTS: 1
MULTIFX INSERT EFFECTS: 1
Mastering processors
MAIN OUT PROCESSORS: 1
USB audio
PLAY TRK: 2
Other features
FOOTSWITCH: Yes
Electrical specifications
POWER SUPPLY: Internal
VOLTAGE REQUIREMENTS: 0 - 0 V
Standard compliance
CE MARKING: Yes
Frequency Response -3 dB: 40 Hz ÷ 20 Hz
Max SPL: 128 dB
Horizontal coverage angle: 120°
Vertical coverage angle: 30°
Fullrange: 8 x 2", 1.0" v.c.
Woofer: 12", 2.5" v.c.

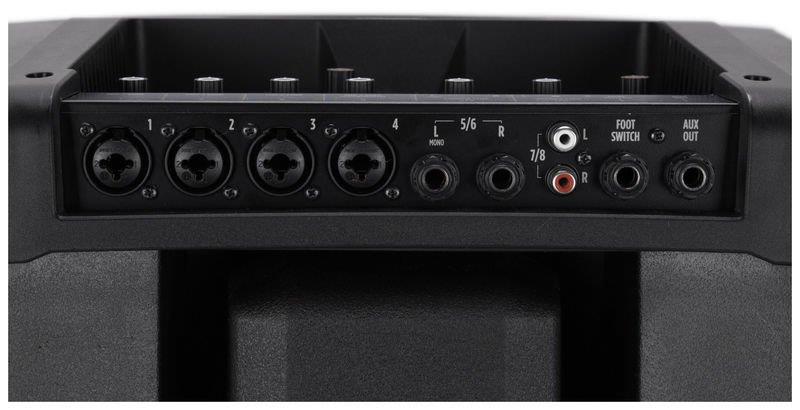

Input connectors: Jack-XLR male
Output connectors: XLR female
Input sensitivity: -2 dBu / + 4 dBu
Crossover frequencies: 220 Hz
Protections: thermal, rms
Limiter: Soft limiter
Controls: Volume, EQ, xover
Total power: 1400 W PEAK, High freq.: 400 W PEAK, Low freq.: 1000 W PEAK
Total power: 700 W RMS, High freq.: 200 W RMS, Low freq.: 500 W RMS
Cooling: Convection
Connections: VDE connector
Cabinet Material: PP composite
Hardware: 2 x M6
Handles: 1 top
Pole Mount/Cap: Yes
Colour: white
Dimensions(H x W x D): 623 x 400 x 460 mm
Net Weight: 23.8 kg
